OIL PUMP

RG250F 1986 (G) (E02 E16 E24 E30)

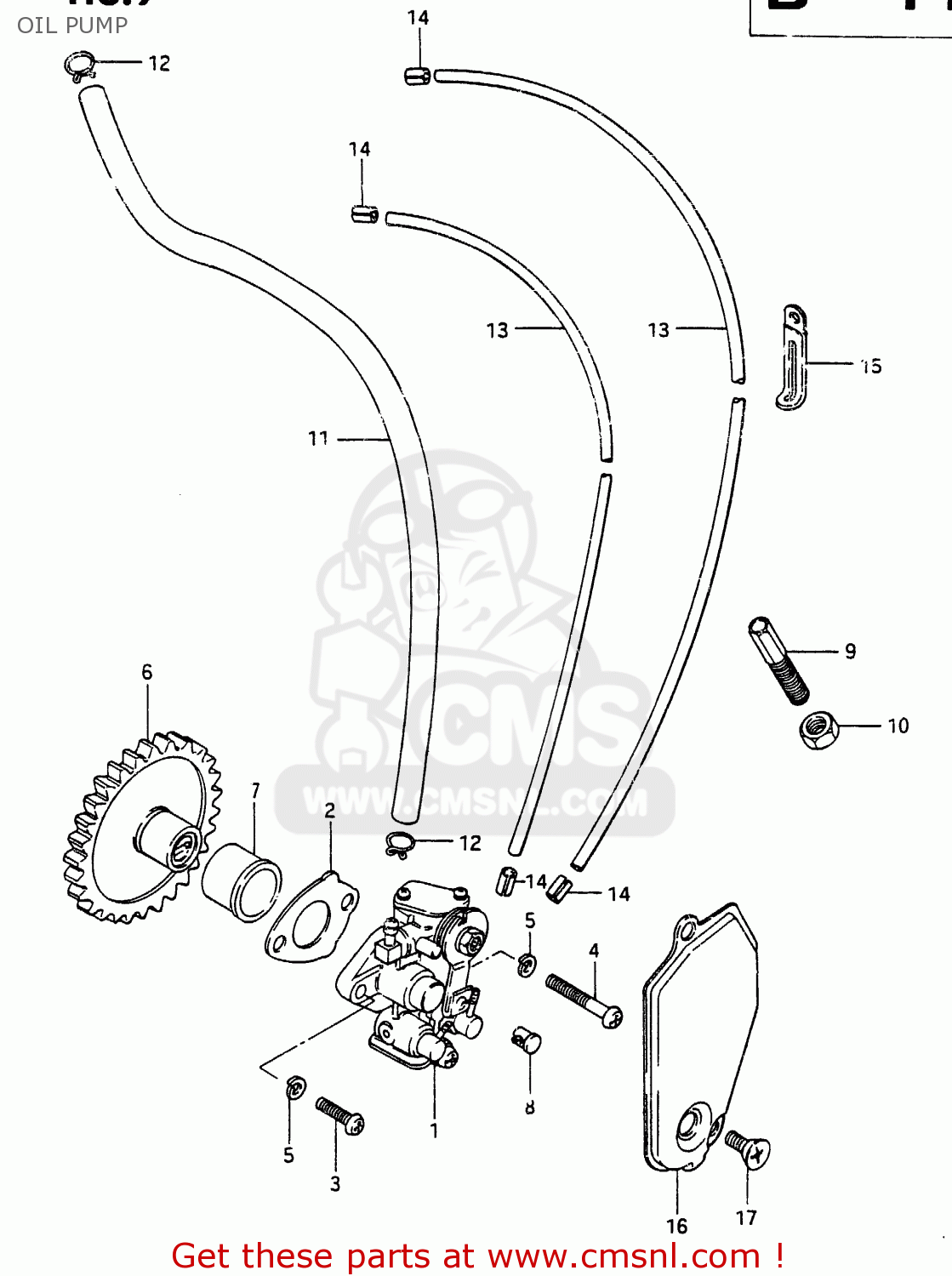

Oil pump diagram RG250F 1986 (G) (E02 E16 E24 E30)

OIL PUMP RG250F 1986 (G) (E02 E16 E24 E30)

OIL PUMP RG250F 1986 (G) (E02 E16 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

1610040A01
ref: 1

PUMP ASSY,OIL

€ 240.50

2

1673103101
ref: 2

GASKET,OIL PUMP (NAS)

€ 2.50

3

0211205168
ref: 3

SCREW

€ 2.50

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121057
ref: 5

LOCK WASHER

€ 2.00

6

1632011331
ref: 6
NT:29

GEAR, OIL PUMP DRIVE

€ 17.50

7

0930120005
ref: 7

BUSH

€ 13.00

8

1629203112
ref: 8

TERMINAL,CABLE

€ 3.50

9

0911908014
ref: 9

BOLT

€ 3.50

10

0831012088
ref: 10

NUT

€ 2.00

11

0934304060
ref: 11
L:550->420

HOSE

€ 14.00

12

0940108401
ref: 12

CLIP

€ 1.50

13

0934302009
ref: 13
L:600->430

HOSE

€ 12.00

14

0940104401
ref: 14

CLIP

€ 2.50

15

0940406401
ref: 15

CLAMP L:35

€ 2.50

16

1138540A10
ref: 16

CAP, OIL PUMP INSPECTION

€ 3.50

17

0212206125
ref: 17

SCREW

€ 3.00
