MAGNETO

RG250F 1986 (G) (E02 E16 E24 E30)

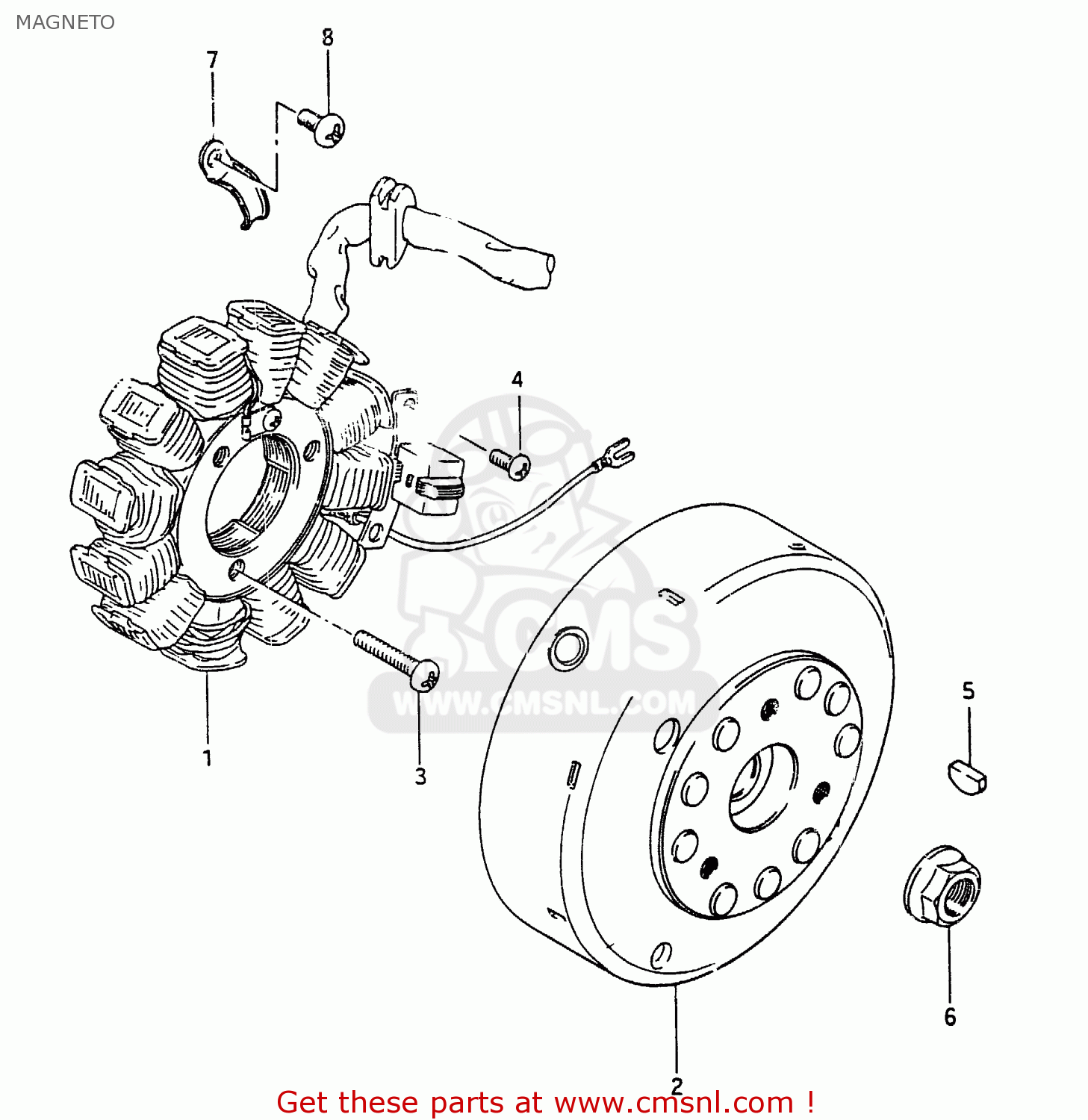

Magneto diagram RG250F 1986 (G) (E02 E16 E24 E30)

MAGNETO RG250F 1986 (G) (E02 E16 E24 E30)
MAGNETO RG250F 1986 (G) (E02 E16 E24 E30)
MAGNETO RG250F 1986 (G) (E02 E16 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
3210116711
ref: 1
STATOR ASSY
€ 769.50
2
3210216711
ref: 2
ROTOR, FLYWHEEL
€ 359.50
3
0211206256
ref: 3
SCREW
€ 1.50
4
0214205107
ref: 4
SCREW
0214205107
€ 2.50
5
0834131039
ref: 5
KEY
0834131039
€ 2.00
6
0831626126
ref: 6
NUT 12MM
€ 3.00
7
0940307309
ref: 7
CLAMP
€ 2.00
8
0211206106
ref: 8
SCREW
€ 1.50
