LEFT HANDLE SWITCH (MODEL G)

RG250F 1986 (G) (E02 E16 E24 E30)

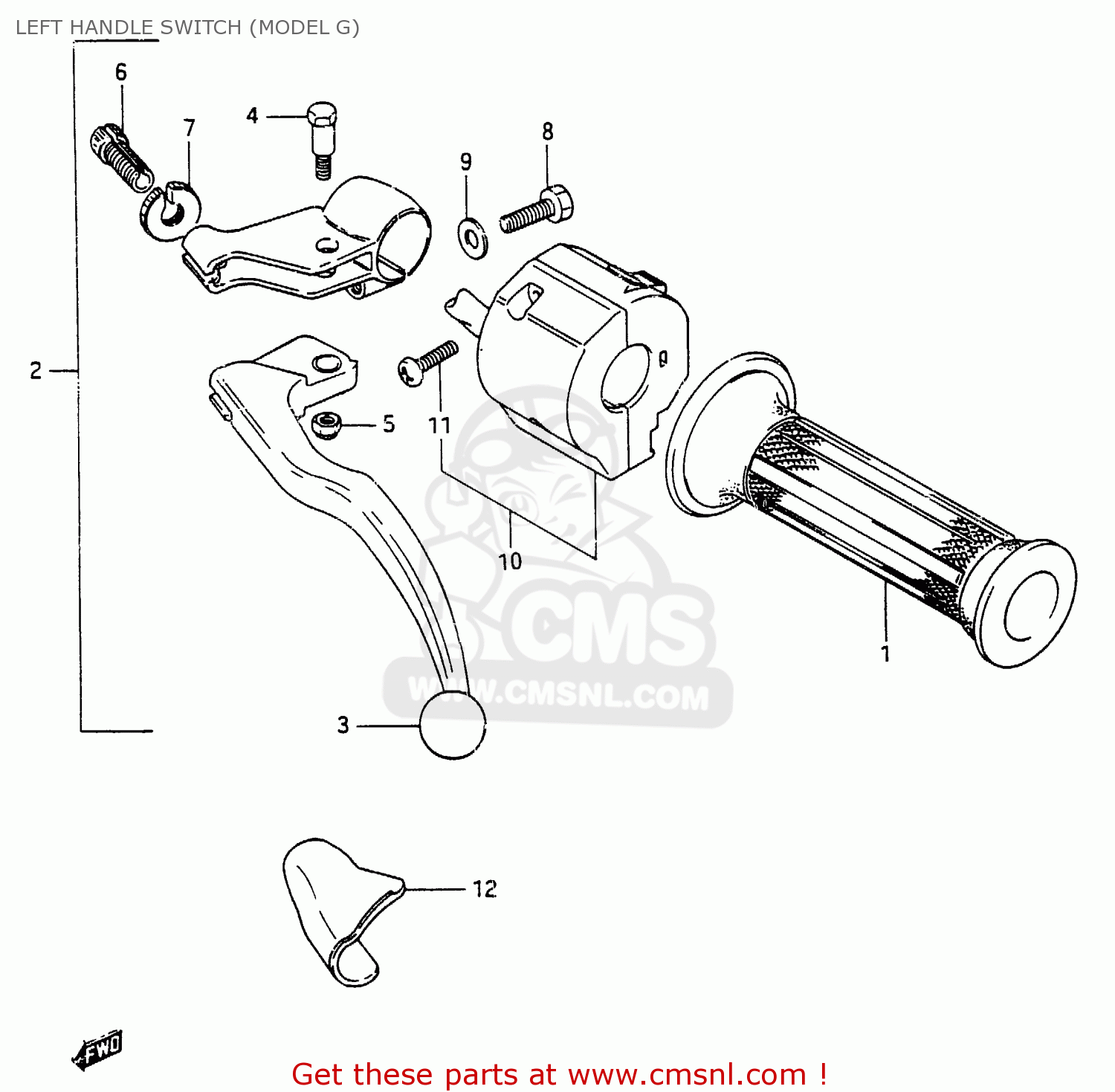

Left handle switch (model g) diagram RG250F 1986 (G) (E02 E16 E24 E30)

LEFT HANDLE SWITCH (MODEL G) RG250F 1986 (G) (E02 E16 E24 E30)

LEFT HANDLE SWITCH (MODEL G) RG250F 1986 (G) (E02 E16 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

5721134310
ref: 1

GRIP,L

€ 9.00

2

5750016700
ref: 2

LEVER ASSY, CLUTCH

€ 55.00

3

5762049111
ref: 3

LEVER,CLUTCH

€ 34.00

4

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

5

0831921065
ref: 5

NUT

€ 2.50

6

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

7

5744244400
ref: 7

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

0120406204
ref: 8

BOLT

€ 2.00

9

0832221064
ref: 9

WASHER

€ 2.00

10

3740027A00
ref: 10

SWITCH ASSY, HANDLE LH

€ 149.50

11

0211205205
ref: 11

SCREW 5X20

€ 2.50

12

5766131000
ref: 12

COVER,CLUTCH LEVER

€ 5.50
