REAR MASTER CYLINDER
RG250F 1986 (G) (E02 E16 E24 E30)

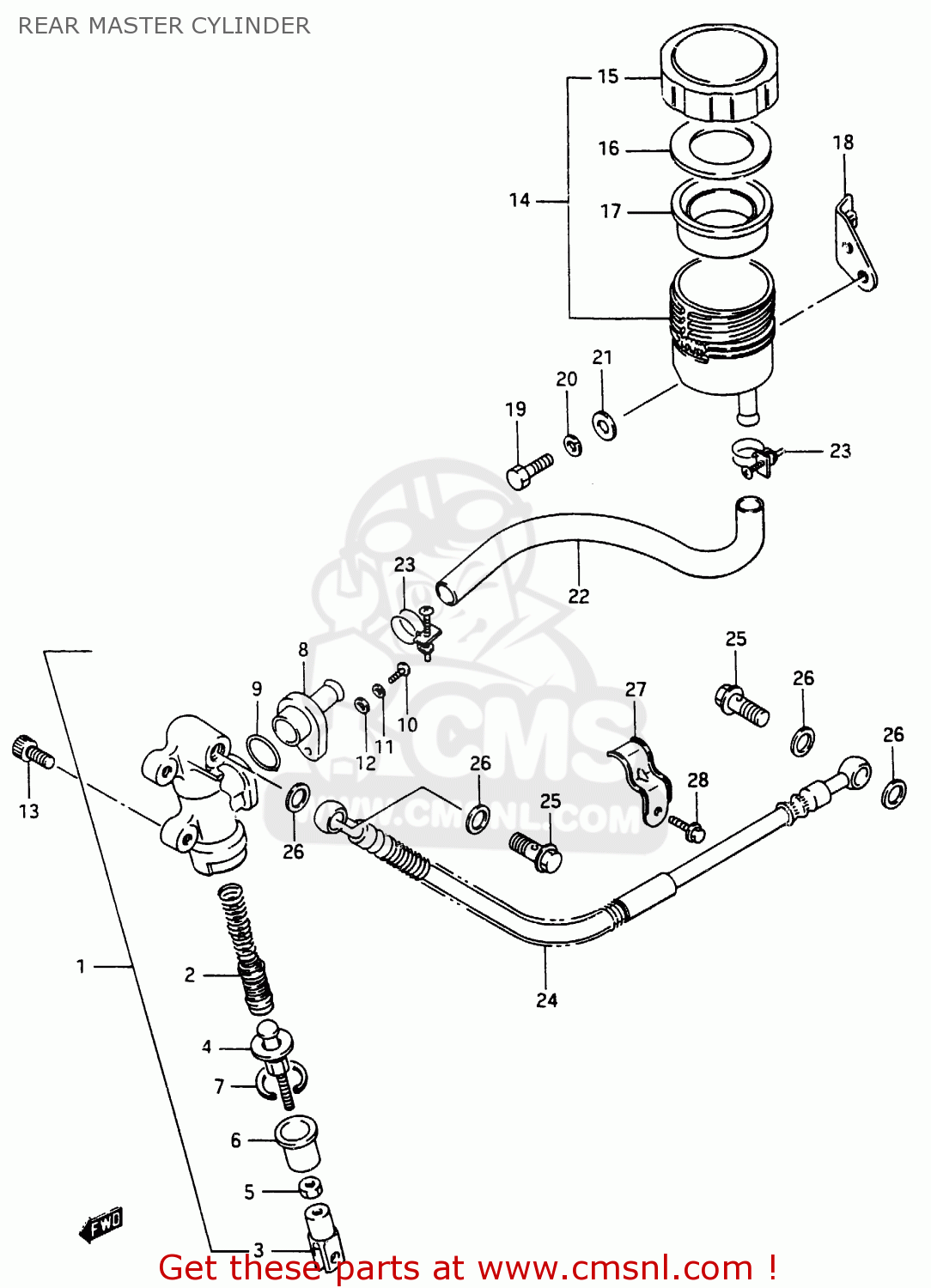

Rear master cylinder diagram RG250F 1986 (G) (E02 E16 E24 E30)
REAR MASTER CYLINDER RG250F 1986 (G) (E02 E16 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
6960040A00
ref: 1
CYLINDER ASSY,RR MASTER
€ 140.50
2
6960004810
ref: 2
PISTON/CUP SET
€ 42.50
3
6969234300
ref: 3
YOKE
€ 11.00
4
6967040A00
ref: 4
ROD,PUSH
€ 12.50
5
6969334300
ref: 5
NUT,MASTER CYLINDER
€ 1.50
6
6969100A00
ref: 6
BOOT
€ 3.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
6967200A00
ref: 8
CONNECTOR
€ 5.50
9
6968634200
ref: 9
O RING
€ 3.50
10
0211204124
ref: 10
SCREW
€ 1.50
11
0832121045
ref: 11
LOCK WASHER
€ 2.00
12
0832221045
ref: 12
WASHER
€ 5.00
13
0711006165
ref: 13
BOLT
€ 3.00
14
6974034200
ref: 14
MODEL G
TANK ASSEMBLY,RESERVOIR
€ 27.50
14
6974034201
ref: 14
MODEL H
TANK ASSEMBLY,RESERVOIR
€ 27.50
15
5966918605
ref: 15
MODEL G
CAP
€ 16.50
15
5966920A00
ref: 15
MODEL H
CAP
€ 16.50
16
5966818441
ref: 16
PLATE,DIAPHRAGM
€ 3.50
17
5966718441
ref: 17
DIAPHRAGM
€ 8.50
18
6975040A00
ref: 18
PLATE, RESERVOIR TANK
€ 0.00
19
0110706166
ref: 19
BOLT
€ 2.00
20
0832121067
ref: 20
WASHER,LOCK
€ 2.50
21
0832221067
ref: 21
WASHER
€ 2.00
22
6973140A02
ref: 22
HOSE, RESERVOIR TANK
€ 0.00
23
0940016302
ref: 23
CLAMP
€ 4.50
24
6948040A02
ref: 24
HOSE, REAR BRAKE
€ 90.50
25
0936010017
ref: 25
BOLT UNION
€ 6.50
26
0916110009
ref: 26
WASHER(10X15X1.5)
€ 2.00
27
6119604A00
ref: 27
GUIDE,REAR BRAKE HOSE
€ 7.00
28
0151705128
ref: 28
BOLT
€ 2.50
