CRANKCASE
RG250F 1986 (G) (E02 E16 E24 E30)

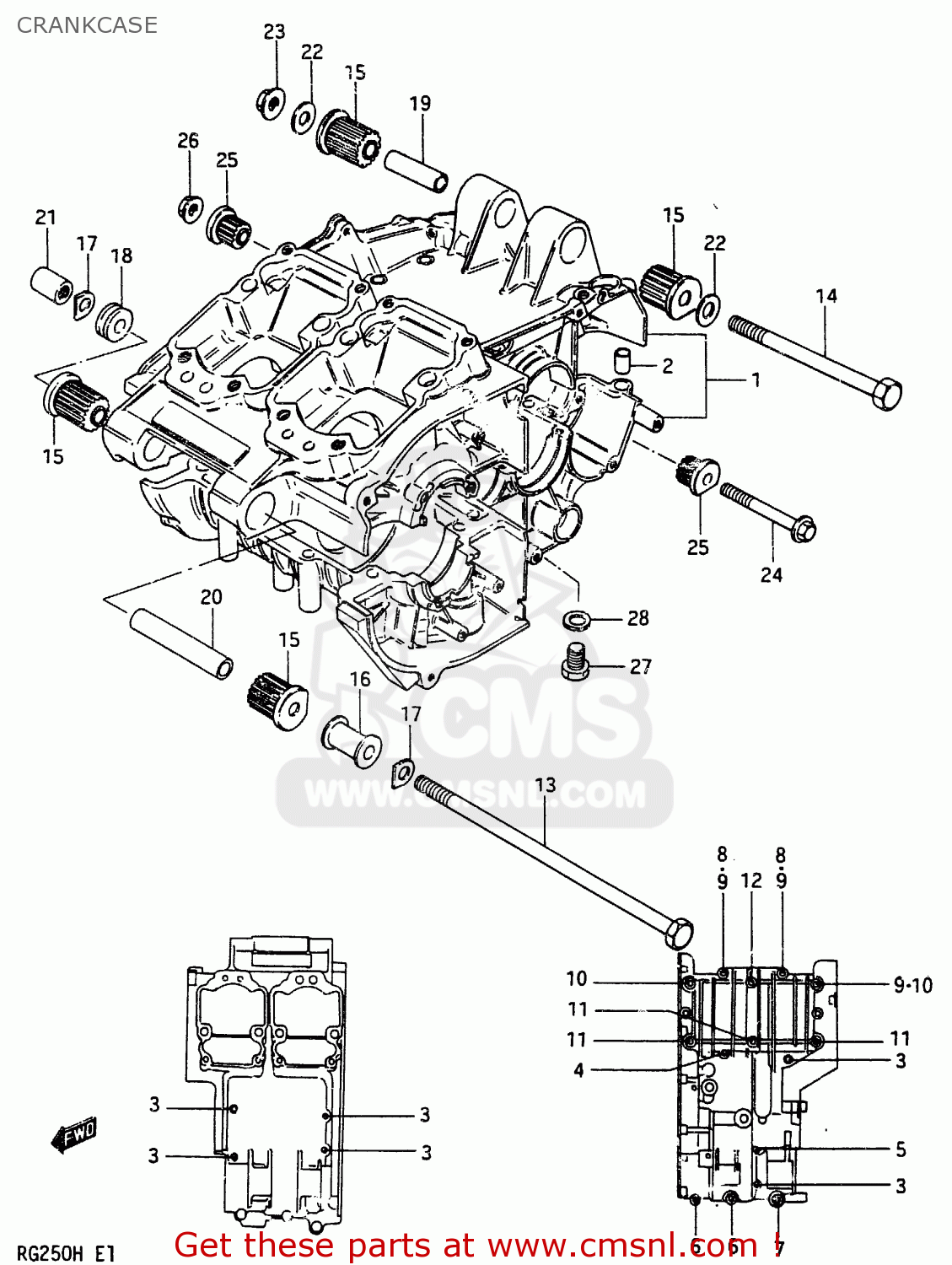

Crankcase diagram RG250F 1986 (G) (E02 E16 E24 E30)
CRANKCASE RG250F 1986 (G) (E02 E16 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
1130140810
ref: 1
CRANKCASE SET
€ 627.00
2
0920613001
ref: 2
PIN
€ 2.50
3
0151706605
ref: 3
BOLT ,6X60
€ 2.50
4
0151706705
ref: 4
BOLT
€ 2.50
5
0151706905
ref: 5
BOLT (6X90)
€ 3.50
6
0151708405
ref: 6
BOLT 8X40
€ 3.50
7
0151708555
ref: 7
BOLT
€ 3.00
8
0151708605
ref: 8
BOLT 8X60
€ 3.50
9
0916808008
ref: 9
GASKET 8.2X14X1 (NAS)
€ 1.00
10
0151708705
ref: 10
BOLT (8X70)
€ 2.50
11
0151708755
ref: 11
BOLT
€ 3.50
12
0151708855
ref: 12
BOLT 8X85
€ 3.50
13
0910010213
ref: 13
BOLT (10X225)
€ 9.50
14
0910010209
ref: 14
BOLT (10X140)
€ 4.00
15
0931910042
ref: 15
BUSH
€ 16.50
16
1161017600
ref: 16
SPACER,ENGINE MOUNT
€ 9.00
17
1161116700
ref: 17
PLATE, ENGINE MOUNT
€ 0.00
18
1161216700
ref: 18
SPACER, ENGINE MOUNT (L:11)
€ 0.00
19
0918010087
ref: 19
SPACER(10.2X16X40)
€ 4.50
20
0918010088
ref: 20
SPACER
€ 8.00
21
0915910042
ref: 21
NUT
€ 3.50
22
0916010066
ref: 22
WASHER (10.5X24X2.3)
€ 2.00
23
0831931105
ref: 23
NUT 10MM
€ 3.00
24
0151708655
ref: 24
BOLT (8X65)
€ 3.00
25
0931908023
ref: 25
BUSHING
€ 11.50
26
0831931085
ref: 26
NUT
€ 2.50
27
0924714025
ref: 27
PLUG
€ 3.50
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
