Buy Suzuki RG Parts Online


FRAME COVER (MODEL G)

RG250F 1986 (G) (E02 E16 E24 E30)

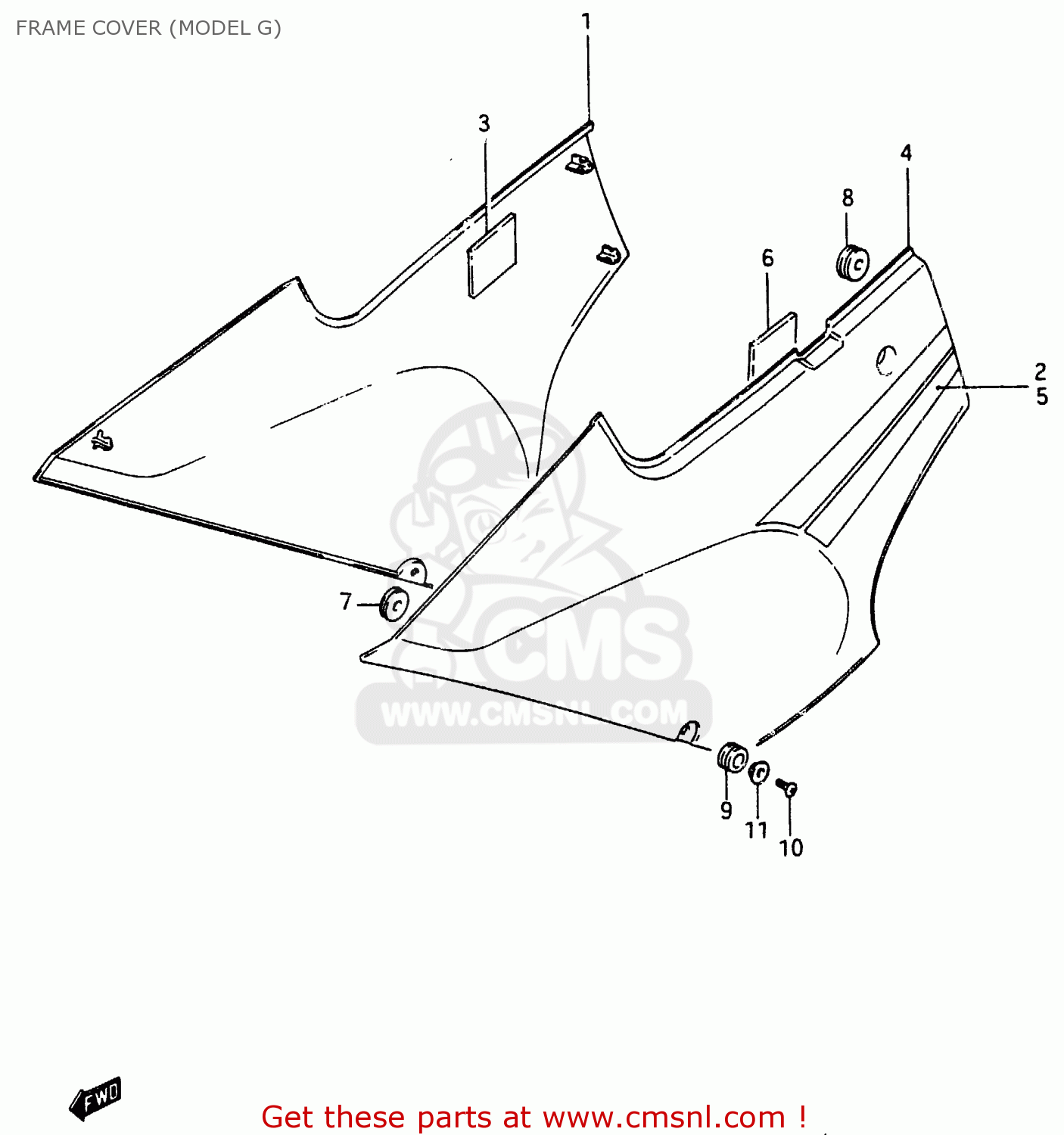

Frame cover (model g) diagram RG250F 1986 (G) (E02 E16 E24 E30)

FRAME COVER (MODEL G) RG250F 1986 (G) (E02 E16 E24 E30)
FRAME COVER (MODEL G) RG250F 1986 (G) (E02 E16 E24 E30)
FRAME COVER (MODEL G) RG250F 1986 (G) (E02 E16 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
4711040A107TG
ref: 1
E2,E16,E24,E30
COVER, FRAME RH
€ 111.50
1
4711040A307TG
ref: 1
COVER,FRAME,R
€ 111.50
1
4711040A1085J
ref: 1
E2,E16,E24,E30
COVER, FRAME RH
€ 111.50
1
4711040A3085J
ref: 1
COVER, FRAME RH
€ 111.50
2
6813040A0081F
ref: 2
FOR 7TG
TAPE SET, FRAME COVER RH
€ 31.50
2
6813040A007YM
ref: 2
FOR 85J
TAPE SET, FRAME COVER RH
€ 0.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
4
4721040A107TG
ref: 4
E2,E16,E24,E30
COVER, FRAME LH
€ 111.50
4
4721040A307TG
ref: 4
COVER,FRAME LH
€ 111.50
4
4721040A1085J
ref: 4
E2,E16,E24,E30
COVER, FRAME LH
€ 111.50
4
4721040A3085J
ref: 4
COVER, FRAME LH
€ 111.50
5
6814040A0081F
ref: 5
FOR 7TG
TAPE SET, FRAME COVER LH
€ 16.50
5
6814040A007YM
ref: 5
FOR 85J
TAPE SET, FRAME COVER LH
€ 0.00
6
3365201A00
ref: 6
PROTECTOR,BATTERY
3365201A00
€ 5.00
7
0932008028
ref: 7
CUSHION
0932008028
€ 2.50
8
0932008018
ref: 8
CUSHION
0932008018
€ 4.00
9
4716934A00
ref: 9
CUSHION,COVER HEAD
4716934A00
€ 5.00
10
0214205128
ref: 10
SCREW
0214205128
€ 1.50
11
0916905010
ref: 11
WASHER
0916905010
€ 3.00
