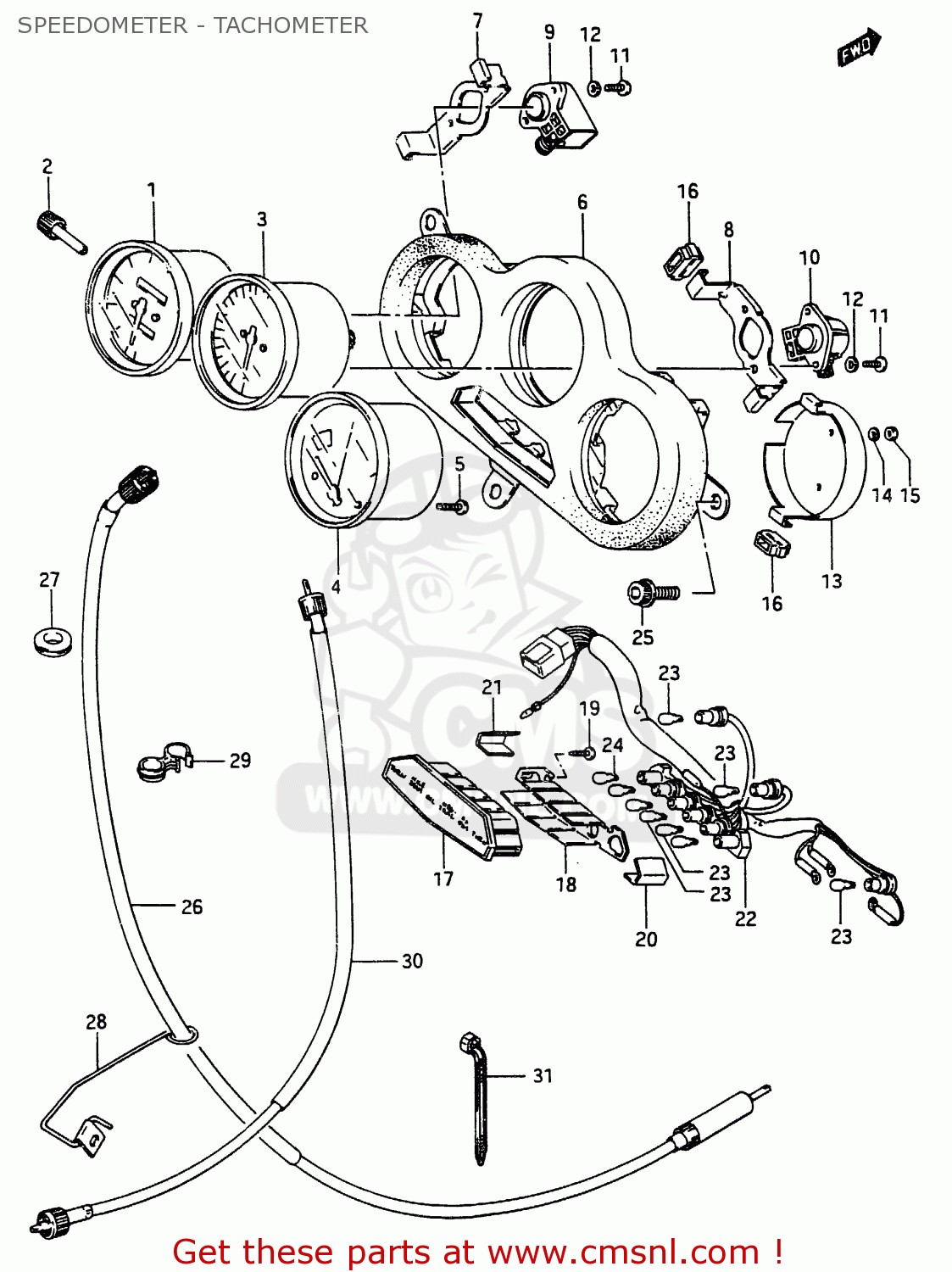

SPEEDOMETER - TACHOMETER - RG250F 1986 (G) (E02 E16 E24 E30)

ref

part #

description

quantity

1

3411040A10
ref: 1

SPEEDOMETER (KILO)

€ 248.00

1

3411040A20
ref: 1

SPEEDOMETER (MILE/KILO)

€ 0.00

2

3412427A00
ref: 2

KNOB,TRIP

€ 7.50

3

3421040A00
ref: 3

TACHOMETER

€ 217.00

3

3421040A40
ref: 3
E24

TACHOMETER

€ 217.00

4

3442020A11
ref: 4

METER, TEMPERATURE

€ 104.00

5

3438327A00
ref: 5

SCREW

€ 2.00

6

3495020A00
ref: 6

BRACKET,METER

€ 83.50

7

3411127A00
ref: 7

PLATE,SPEEDOMETER

€ 19.00

8

3421140A00
ref: 8

PLATE, TACHOMETER

€ 14.50

9

3413120A00
ref: 9

BOX,METER GEAR

€ 154.00

10

3423140A00
ref: 10

BOX, TACHOMETER GEAR

€ 116.50

11

0211204105
ref: 11

SCREW

€ 2.00

12

0832121045
ref: 12

LOCK WASHER

€ 2.00

13

3441327A00
ref: 13

PLATE,TEMP METER

€ 22.00

14

3418127A00
ref: 14

WASHER

€ 2.00

15

0831021035
ref: 15

NUT

€ 1.50

16

3418927A00
ref: 16

CUSHION

€ 6.00

17

3638120A10
ref: 17

CASE, PILOT LAMP

€ 32.50

18

3638227A00
ref: 18

PLATE,PILOT LAMP

€ 18.50

19

3638727A00
ref: 19

SCREW

€ 2.00

20

3638327A00
ref: 20

PLATE,TURN,R

€ 14.50

21

3638427A00
ref: 21

PLATE,TURN,L

€ 9.50

22

3417040A10
ref: 22

SOCKET, METER

€ 96.50

23

0947112085
ref: 23

BULB(12V3W,WB371,T7)

€ 3.00

24

0947112100
ref: 24

BULB(12V1.7W,WB372,T7)

€ 2.00

25

0712008125
ref: 25

BOLT

€ 2.50

26

3491004A00
ref: 26

CABLE ASSY,SPEEDOMETER

€ 28.00

27

0930816006
ref: 27

GROMMET

€ 3.00

28

3493816730
ref: 28

GUIDE, SPEEDOMETER CABLE

€ 0.00

29

3493816720
ref: 29

GUIDE,SPEEDOMETER CABLE

€ 5.50

30

3494016700
ref: 30

CABLE ASSY,TACHOMETER

€ 22.00

31

0940718402
ref: 31

CLAMP(L:165)

€ 2.50

SPEEDOMETER - TACHOMETER

all assemblies
