CARBURETOR
RM125 1984 (E) GENERAL FRANCE (E01 E04)

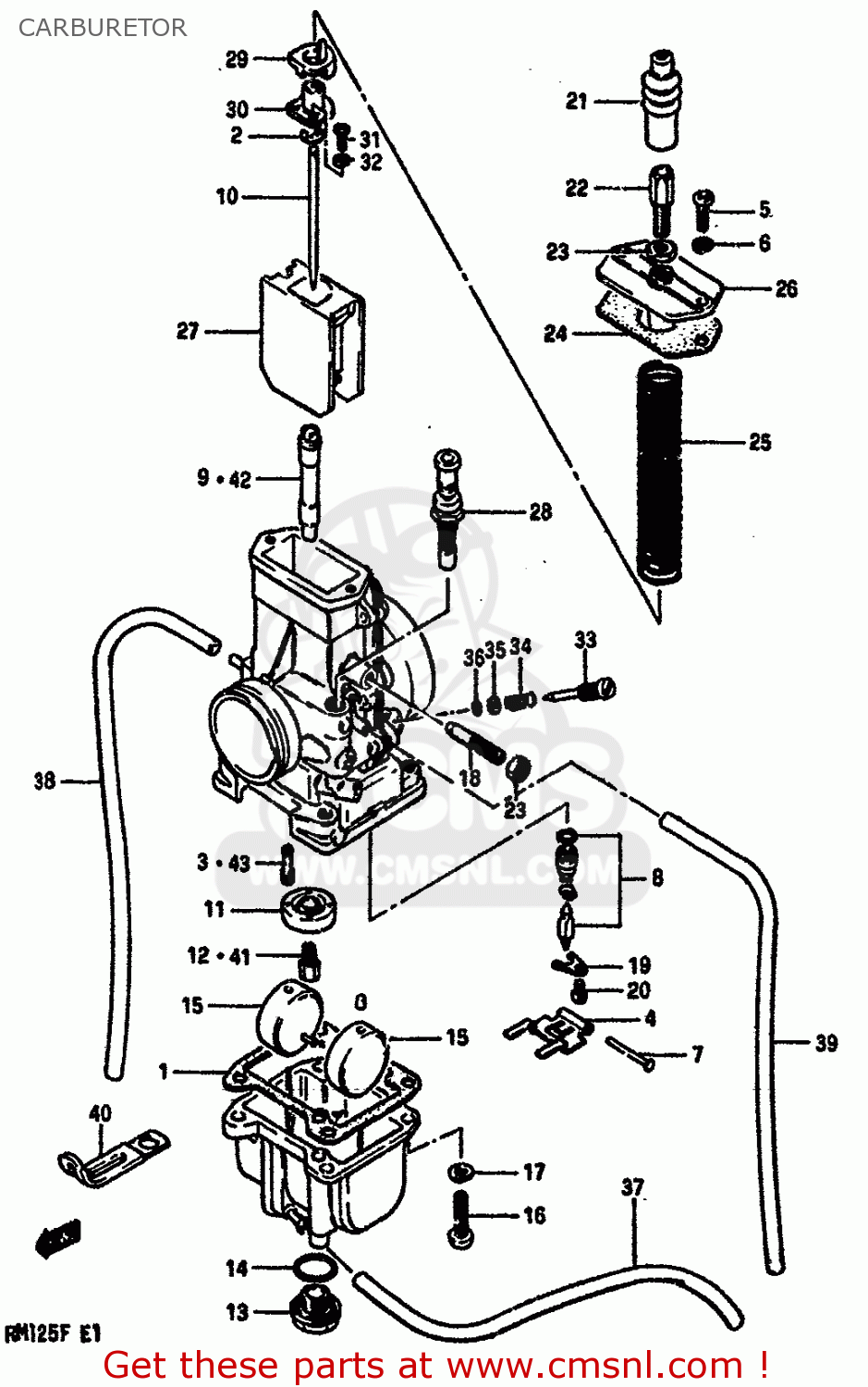

Carburetor diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)
CARBURETOR RM125 1984 (E) GENERAL FRANCE (E01 E04)
×
prices are in EUR
ref
part #
description
quantity
0
1320014500
ref: 0
MODEL E
CARBURETOR ASSEMBLY
€ 406.00
0
1320014510
ref: 0
MODEL F
CARBURETOR ASSEMBLY
€ 406.00
1
1325114300
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2
1339410010
ref: 2
CLIP
€ 4.50
3-1
0949245009
ref: 3-1
MODEL E
JET,PILOT(45)
€ 8.00
3-2
0949235004
ref: 3-2
MODEL F
JET,PILOT(35)
€ 7.50
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204126
ref: 5
SCREW
€ 1.50
6
0832121046
ref: 6
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337014300
ref: 8
VALVE ASSEMBLY,NEEDLE
€ 52.50
9-1
0949400453
ref: 9-1
MODEL E
JET
€ 19.50
9-2
0949400357
ref: 9-2
MODEL F
JET,NEEDLE(R-0)
€ 16.50
10-1
1338314500
ref: 10-1
MODEL E
NEEDLE JET
€ 14.50
10-2
1338314510
ref: 10-2
MODEL F
NEEDLE,JET
€ 14.50
11-1
1333114300
ref: 11-1
MODEL E
RING,MAIN JET FIXING
€ 0.00
11-2
1333114510
ref: 11-2
MODEL F
RING,MAIN JET FITTING
€ 10.50
12-1
0949154001
ref: 12-1
MODEL E
JET
€ 11.50
12-2
0949156001
ref: 12-2
MODEL F
JET
€ 14.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325218620
ref: 15
FLOAT
€ 27.50
16
0211205206
ref: 16
SCREW
€ 2.50
17
0832121056
ref: 17
LOCK WASHER
€ 3.00
18
1326714500
ref: 18
SCREW,THROTTLE SCREW
€ 9.00
19
1337339110
ref: 19
PLATE
€ 6.50
20
0211204066
ref: 20
SCREW
€ 2.00
21
1368141510
ref: 21
CAP,CABLE ADJUSTER
€ 11.00
22
1357741612
ref: 22
ADJUSTER,CABLE
€ 8.00
23
1366116600
ref: 23
NUT
€ 5.00
24
1326614500
ref: 24
GASKET,TOP (NAS)
€ 4.00
25
1357314500
ref: 25
SPRING,THROTTLE VALVE
€ 6.50
26
1326114500
ref: 26
CAP,CARBURETOR,TOP
€ 13.50
27
1355114500
ref: 27
VALVE,THROTTLE
€ 79.50
28
1340014500
ref: 28
PLUNGER ASSEMBLY
€ 39.00
29
1362916700
ref: 29
RING
€ 11.50
30
1339816700
ref: 30
JOINT
€ 7.00
31
0211203106
ref: 31
SCREW
€ 1.50
32
0832121036
ref: 32
LOCK WASHER
€ 1.50
33
1326948030
ref: 33
MODEL F
SCREW,PILOT AIR
€ 10.00
34
1326848700
ref: 34
MODEL F
SPRING,THROTTLE SCREW
€ 3.50
35
1327744080
ref: 35
MODEL F
GASKET
€ 2.00
36
1327844080
ref: 36
MODEL F
O-RING
€ 4.00
37
0934304046
ref: 37
HOSE
€ 3.00
38
0934304046
ref: 38
HOSE
€ 3.00
39
0934304046
ref: 39
HOSE
€ 3.00
40
0940406401
ref: 40
CLAMP L:35
€ 2.50
41-1
0949150003
ref: 41-1
OPT
JET
€ 12.50
41-2
0949152001
ref: 41-2
OPT
JET
€ 7.50
41-3
0949156001
ref: 41-3
OPT
JET
€ 14.50
41-4
0949158002
ref: 41-4
OPT
JET,MAIN(290)
€ 7.50
41-5
0949160007
ref: 41-5
OPT
JET,MAIN(300)
€ 9.50
42-1
0949400393
ref: 42-1
OPT
JET,NEEDLE
€ 20.00
42-2
0949400357
ref: 42-2
OPT
JET,NEEDLE(R-0)
€ 16.50
42-3
0949400403
ref: 42-3
OPT
JET,NEEDLE
€ 18.50
42-4
0949400404
ref: 42-4
OPT
JET,NEEDLE
€ 20.00
43-1
0949230003
ref: 43-1
OPT
JET
€ 8.50
43-2
0949235004
ref: 43-2
OPT
JET,PILOT(35)
€ 7.50
43-3
0949240004
ref: 43-3
OPT
JET,PILOT(40)
€ 17.50
43-4
0949250010
ref: 43-4
OPT
JET,PILOT(50)
€ 8.00
