CRANKCASE
RM125 1984 (E) GENERAL FRANCE (E01 E04)

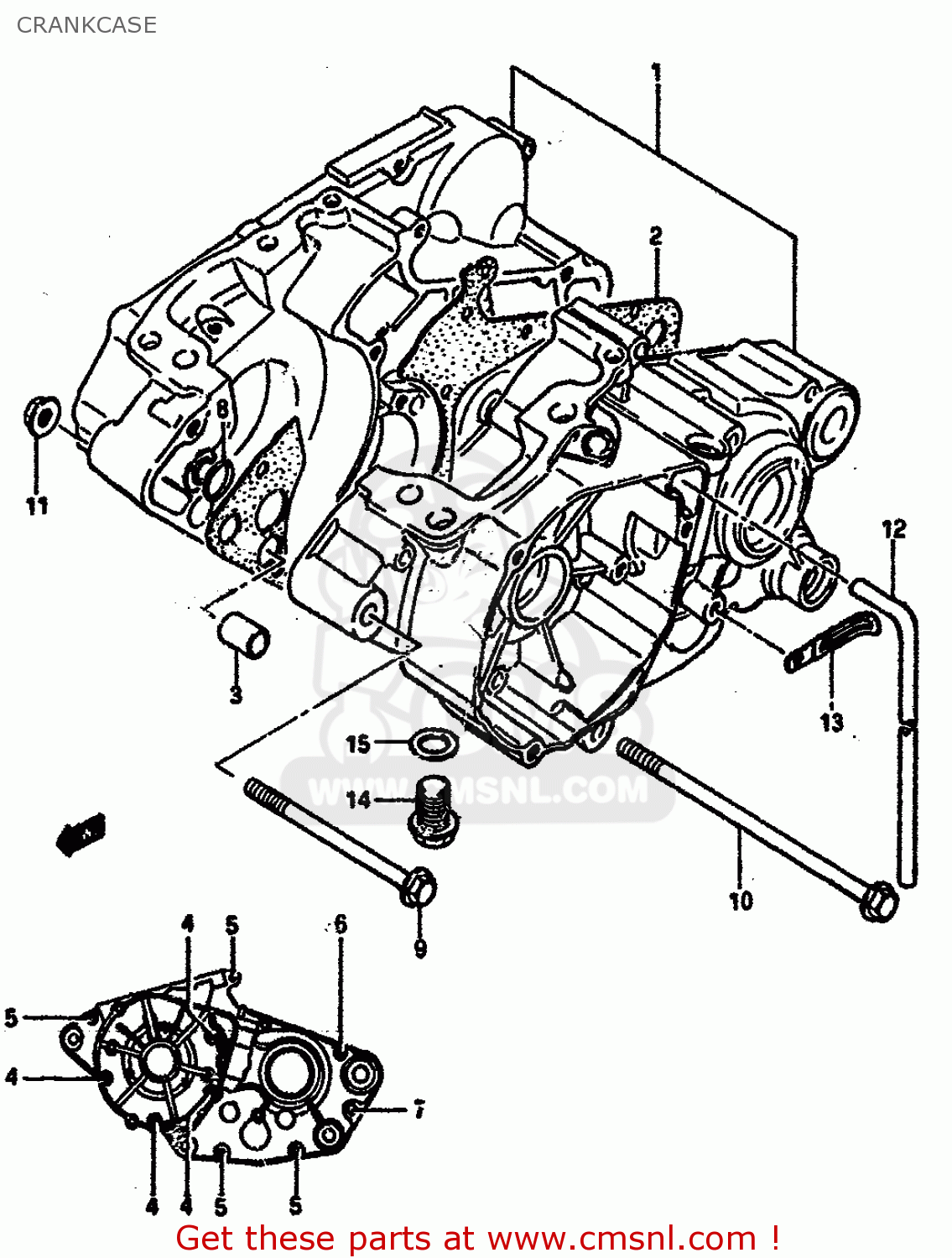

Crankcase diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)
CRANKCASE RM125 1984 (E) GENERAL FRANCE (E01 E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130114830
ref: 1-1
MODEL E
CRANKCASE SET
€ 574.50
1-2
1130114841
ref: 1-2
MODEL F
CRANKCASE SET
€ 766.50
2
1148114500
ref: 2
GASKET,CRANKCASE (MCA)
€ 13.50
3
0920613001
ref: 3
PIN
€ 2.50
4
0211206455
ref: 4
SCREW
€ 1.50
5
0211206504
ref: 5
SCREW
€ 2.00
6
0211206555
ref: 6
SCREW
€ 2.00
7
0211206654
ref: 7
SCREW
€ 2.00
8
0928014004
ref: 8
O RING(D:1.9,ID:13.8)
€ 1.50
9
0910308183
ref: 9
BOLT(8X95)
€ 4.50
10
0910308113
ref: 10
BOLT(8X150)
€ 64.00
11
0831931085
ref: 11
NUT
€ 2.50
12
0934304046
ref: 12
HOSE
€ 3.00
13-1
0940406412
ref: 13-1
MODEL E
CLAMP
€ 2.50
13-2
0940406402
ref: 13-2
MODEL F
CLAMP
€ 2.50
14
0924714020
ref: 14
PLUG
€ 3.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
€ 2.50
