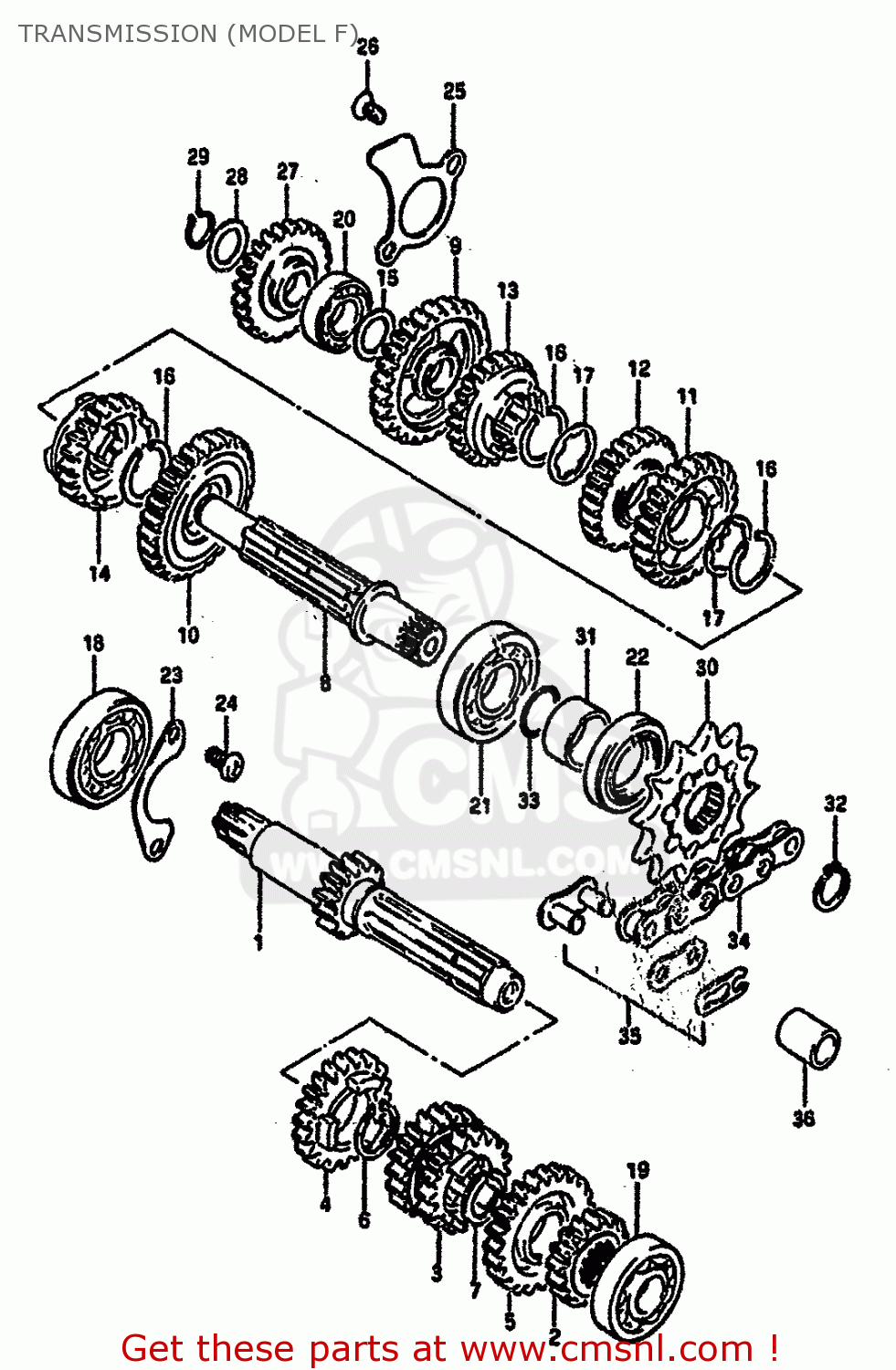

TRANSMISSION (MODEL F)

ref

part #

description

quantity

1

2412114511
ref: 1

SHAFT,COUNTER

€ 75.00

2

2422114510
ref: 2

GEAR,SECOND DRIVE

€ 33.50

3

2423114510
ref: 3

GEAR,THIRD/FOURTH DRIVE

€ 44.50

4

2425014510
ref: 4

GEAR,FIFTH DRIVE

€ 0.00

5

2426114510
ref: 5

GEAR,SIXTH DRIVE

€ 43.00

6

0938020007
ref: 6

CIRCLIP

€ 3.00

7

0938020012
ref: 7

CIRCLIP

€ 2.50

8

2413114510
ref: 8

SHAFT,DRIVE

€ 110.00

9

2431114511
ref: 9

GEAR,FIRST DRIVEN

€ 62.50

10

2432114510
ref: 10

GEAR,SECOND DRIVEN

€ 66.00

11

2433114510
ref: 11

GEAR,THIRD DRIVEN

€ 63.00

12

2434114510
ref: 12

GEAR,FOURTH DRIVEN

€ 25.50

13

2435114510
ref: 13

GEAR,FIFTH DRIVEN

€ 38.50

14

2436114510
ref: 14

GEAR,SIXTH DRIVEN

€ 69.50

15

0821115261
ref: 15

WASHER,THRUST

€ 2.50

16

0938022006
ref: 16

CIRCLIP

€ 3.00

17

0916722011
ref: 17

WASHER,LOCK

€ 3.00

18

0926220062
ref: 18

BEARING

€ 28.00

19

0811360020
ref: 19

BEARING

€ 14.00

20

0811362027
ref: 20

BEARING

€ 14.50

21

0926220043
ref: 21

BEARING(20X47X14)

€ 27.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

2475114102
ref: 25

RETAINER,DRIVESHAFT

€ 7.00

26

0212206128
ref: 26

SCREW

€ 3.00

27

2626014100
ref: 27

GEAR,KICK STARTER IDLE

€ 61.50

28

0821115241
ref: 28

WASHER,THRUST

€ 4.00

29

0833131159
ref: 29

CIRCLIP,15MM

€ 2.00

30-1

2751114110
ref: 30-1

SPROCKET,ENGINE

€ 19.00

30-2

2751114100
ref: 30-2
OPT

SPROCKET,ENGINE

€ 23.50

30-3

2751114120
ref: 30-3
OPT

SPROCKET,ENGINE

€ 27.50

31

0918020039
ref: 31

SPACER(20X25X12.5)

€ 9.50

32

0938020007
ref: 32

CIRCLIP

€ 3.00

33

0928020001
ref: 33

O RING(D:1,ID:19.5)

€ 2.00

34

2760014510
ref: 34

CHAIN ASSEMBLY,DRIVE

€ 80.00

35-1

2762036111
ref: 35-1

JOINT ASSEMBLY,CHAIN

€ 8.50

35-2

2762010221
ref: 35-2

JOINT ASSEMBLY,CHAIN

€ 4.50

36

0918012108
ref: 36

CUSHION 12X20X20

€ 3.50
