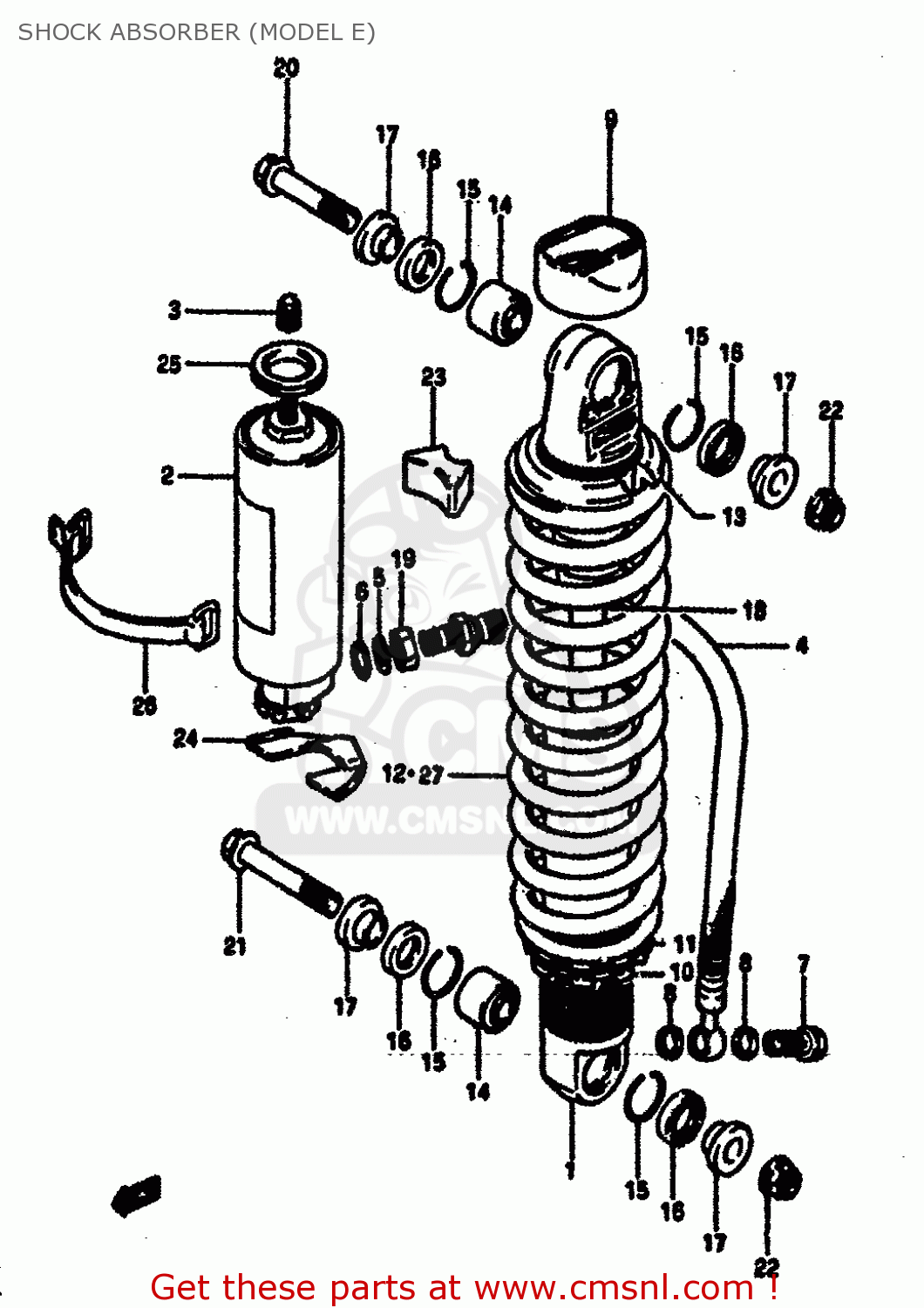

SHOCK ABSORBER (MODEL E)

ref

part #

description

quantity

1

6210014510
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 516.00

2

6227014500
ref: 2

RESERVE TANK,REAR SHOCK

€ 0.00

3

5129420400
ref: 3

CAP

€ 3.50

4

6228014500
ref: 4

HOSE,REAR SHOCK ABSORBER

€ 81.50

5

6228514100
ref: 5

WASHER,REAR SHOCK HOSE

€ 3.00

6

6215440200
ref: 6

O-RING,RESERVE TANK

€ 1.50

7

6228114140
ref: 7

BOLT,REAR SHOCK ABSORBER

€ 0.00

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

6217938200
ref: 9

CLIP

€ 0.00

10

6219414140
ref: 10

GUIDE,REAR SHOCK ABSORBER SPRING

€ 0.00

11

6219114140
ref: 11

GUIDE,SPRING

€ 15.00

12

6221114500
ref: 12

SPRING

€ 0.00

13

6222514500
ref: 13

GUIDE,REAR SHOCK ABSORBER SPRING

€ 0.00

14

6217543400
ref: 14

BEARING,REAR SHOCK ABSORBER

€ 66.00

15

6227714200
ref: 15

RING

€ 1.50

16

6222643410
ref: 16

SEAL,DUST

€ 7.50

17

6268443401
ref: 17

SPACER

€ 7.00

18

6212014500
ref: 18

ROD,PISTON

€ 270.50

19

0831022128
ref: 19

NUT 12MM

€ 3.00

20

6231114500
ref: 20

BOLT,REAR SHOCK ABSORBER

€ 3.50

21

0910310030
ref: 21

BOLT(10X52)

€ 8.50

22

0831931108
ref: 22

NUT

€ 3.00

23

6233114500
ref: 23

CUSHION,RESERVOIR TANK

€ 4.50

24

6242314500
ref: 24

CUSHION,RESERVOIR TANK

€ 3.50

25

6242314510
ref: 25

CUSHION,RESERVOIR TANK

€ 3.00

26

0946200082
ref: 26

BAND

€ 9.00

27

6221114507
ref: 27
OPT

SPRING

€ 0.00

all assemblies
