HANDLEBAR (MODEL F)

RM125 1984 (E) GENERAL FRANCE (E01 E04)

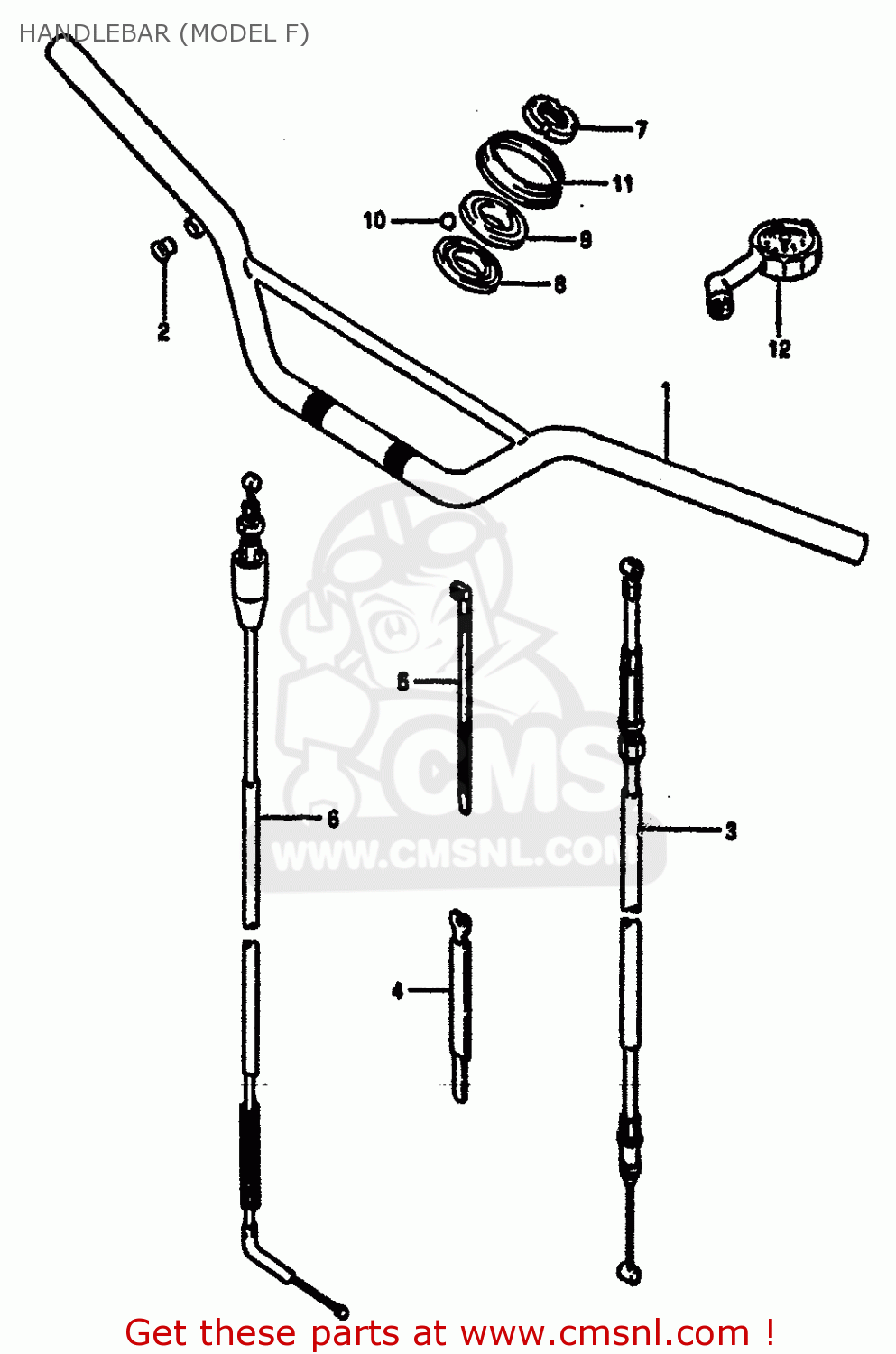

Handlebar (model f) diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)

HANDLEBAR (MODEL F) RM125 1984 (E) GENERAL FRANCE (E01 E04)

HANDLEBAR (MODEL F) RM125 1984 (E) GENERAL FRANCE (E01 E04)

prices are in EUR

ref

part #

description

quantity

1

561101451019T
ref: 1

HANDLEBAR

€ 0.00

2

0925010001
ref: 2

CAP(OD:14)

€ 1.50

3

5821014500
ref: 3

CABLE ASSY,CLUTCH

€ 34.00

4

0940725301
ref: 4

CLAMP(L:250)

€ 4.50

5

0940725401
ref: 5

CLAMP(L:235)

€ 4.00

6

5830014500
ref: 6

CABLE ASSEMBLY,THROTTLE

€ 33.00

7

5163140200
ref: 7

NUT,STEERING STEM

€ 12.00

8

5161140200
ref: 8

RACE,STEERING,INNER,UPPER

€ 8.50

9

5162140200
ref: 9

RACE,STEERING,OUTER,UPPER

€ 17.00

10

0611108003
ref: 10

BALL

€ 1.50

11

5164340200
ref: 11

SEAL,STEERING UPR DUST

€ 7.50

12

9620041330
ref: 12

GAUGE ASSY,AIR PRESSURE

€ 77.50
