REAR SWINGING ARM

RM125 1984 (E) GENERAL FRANCE (E01 E04)

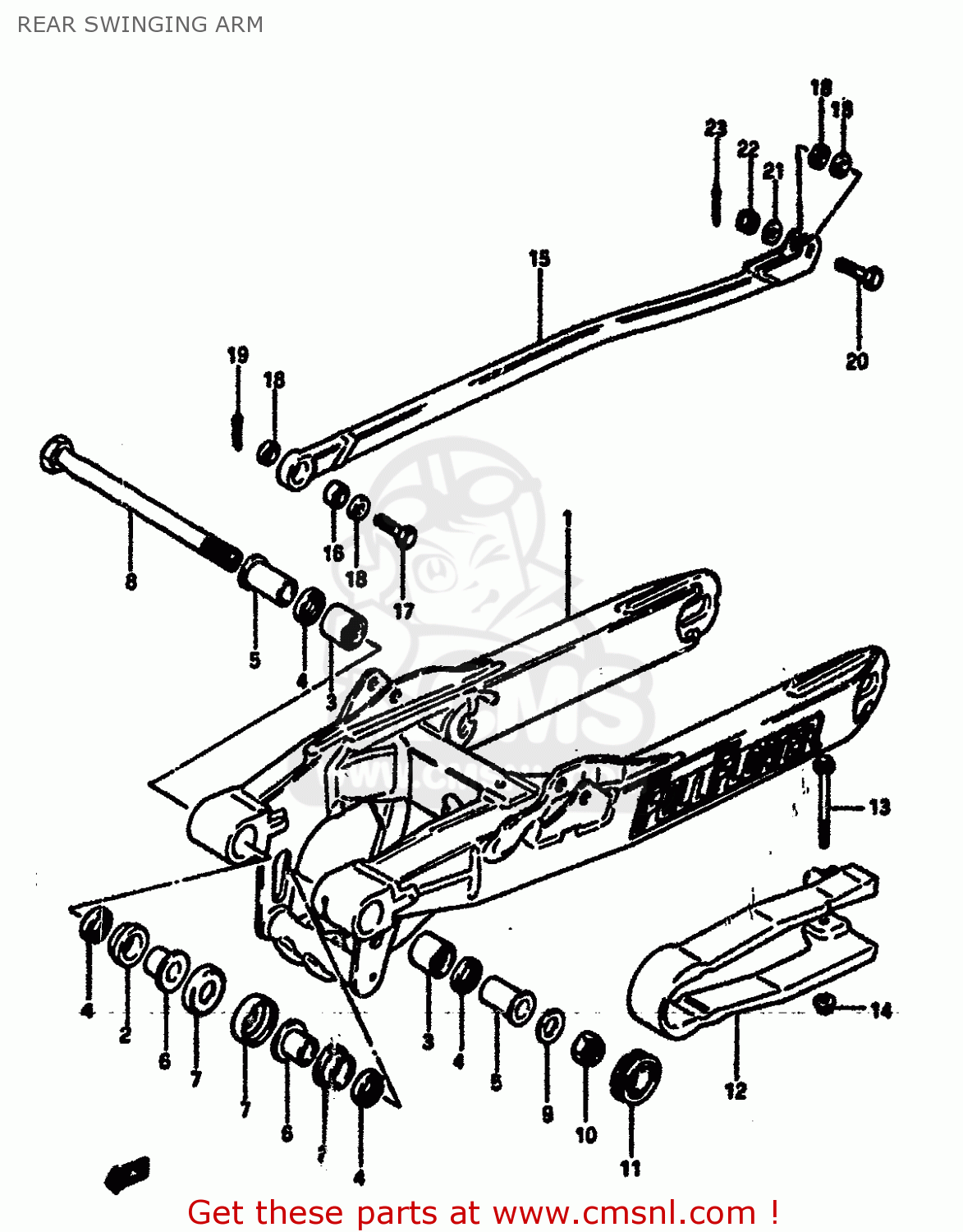

Rear swinging arm diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)

REAR SWINGING ARM RM125 1984 (E) GENERAL FRANCE (E01 E04)
REAR SWINGING ARM RM125 1984 (E) GENERAL FRANCE (E01 E04)
REAR SWINGING ARM RM125 1984 (E) GENERAL FRANCE (E01 E04)
prices are in EUR
ref
part #
description
quantity
1
6100014500
ref: 1
SWING ARM ASSEMBLY,REAR
6100014500
€ 419.50
2
6126114101
ref: 2
BUSH,RR SWINGINGARM PIVOT
6126114101
€ 10.00
3
0926320041
ref: 3
BEARING(20X27X20)
0926320041
€ 15.00
4
0928520005
ref: 4
OIL SEAL
0928520005
€ 5.00
5
6125114100
ref: 5
SPACER,RR SWGARM PIVOT
6125114100
€ 16.00
6
6125214100
ref: 6
SPACER,RR SWGARM PIVOT INNER
6125214100
€ 12.50
7
6126240400
ref: 7
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
8
6121114500
ref: 8
SHAFT,REAR SWING ARM
6121114500
€ 27.50
9
0916014027
ref: 9
WASHER(14.2X24X2.3)
0916014027
€ 2.50
10
0915914013
ref: 10
NUT
0915914013
€ 8.50
11
612221450019F
ref: 11
CAP
612221450019F
€ 3.00
12
6127314500
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
6127314500
€ 25.00
13
0151706708
ref: 13
BOLT (6X70)
€ 3.00
14
0831931068
ref: 14
NUT
0831931068
€ 2.50
15
6430014840
ref: 15
LINK,REAR TORQUE
6430014840
€ 89.50
16
6435240411
ref: 16
SPHERICAL BEARING,TORQUE
6435240411
€ 69.50
17
0910108003
ref: 17
BOLT 8X28
0910108003
€ 2.00
18
6433940410
ref: 18
6433940410
19
0411120158
ref: 19
PIN
0411120158
€ 1.50
20
0910108014
ref: 20
BOLT 8X29.5
0910108014
€ 1.50
21
0832211088
ref: 21
WASHER
0832211088
€ 2.00
22
0831441088
ref: 22
NUT 8MM
0831441088
€ 2.50
23
0411120208
ref: 23
PIN 20X20
0411120208
€ 1.50
