CYLINDER
RM125 1984 (E) GENERAL FRANCE (E01 E04)

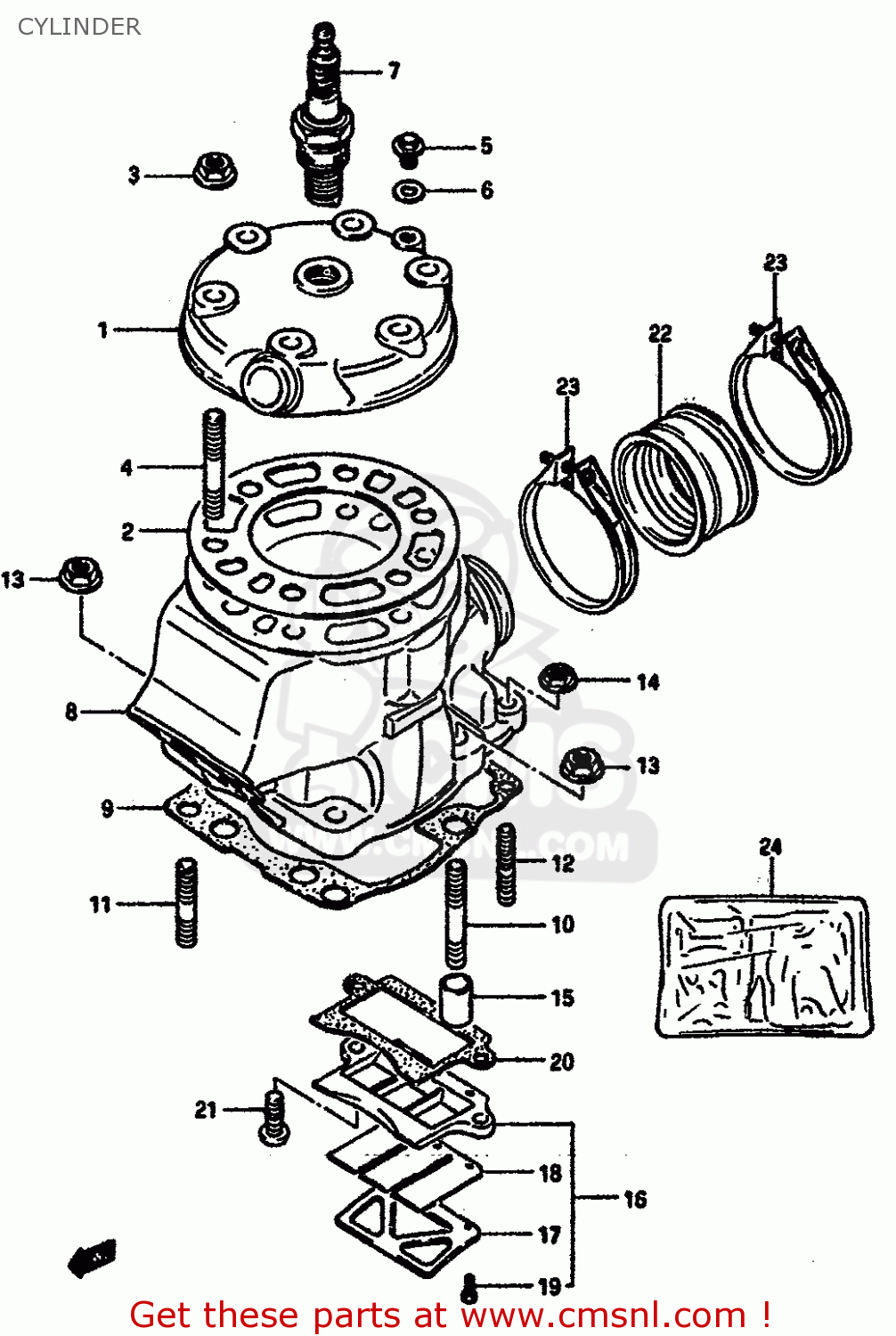

Cylinder diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)
CYLINDER RM125 1984 (E) GENERAL FRANCE (E01 E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111114500
ref: 1-1
MODEL E
HEAD,CYLINDER
€ 90.50
1-2
1111114510
ref: 1-2
MODEL F
HEAD,CYLINDER
€ 84.00
2-1
1114114500
ref: 2-1
GASKET,CYLINDER HEAD (MCA)
€ 24.00
2-2
1114114510
ref: 2-2
OPT
GASKET,CYLINDER HEAD (MCA)
€ 24.00
3
0831616085
ref: 3
NUT 8MM
€ 3.00
4
0910808143
ref: 4
BOLT,STUD
€ 3.00
5-1
0936006007
ref: 5-1
MODEL E
UNION
€ 3.00
5-2
0936006015
ref: 5-2
MODEL F
UNION
€ 3.00
6
0916806004
ref: 6
GASKET(6.2X11X1).2 (NAS)
€ 1.50
7-1
0948200209
ref: 7-1
PLUG,SPARK(NGK B-8EN)
€ 19.50
7-2
0948200271111
ref: 7-2
SPARK PLUG
€ 3.00
7-3
0948200115
ref: 7-3
E4
SPARK PLUG BR9EV
€ 81.50
8-1
1121014504
ref: 8-1
MODEL E
CYLINDER
€ 421.00
8-2
1121014512
ref: 8-2
MODEL F
CYLINDER
€ 421.00
9
1124114501
ref: 9
GASKET,CYLINDER (MCA)
€ 17.00
10
0910808094
ref: 10
STUD
€ 3.00
11
0910808095
ref: 11
STUD
€ 8.50
12
0910806066
ref: 12
STUD
€ 4.00
13
0831616085
ref: 13
NUT 8MM
€ 3.00
14
0831616064
ref: 14
NUT 6MM
€ 2.50
15
0421111169
ref: 15
PIN
€ 2.00
16
1315014500
ref: 16
VALVE ASSEMBLY,REED
€ 110.00
17
1315214500
ref: 17
STOPPER,REED VALVE
€ 7.00
18
1315314500
ref: 18
VALVE,REED
€ 7.50
19
13154145U0
ref: 19
SCREW
€ 0.00
20
1315614500
ref: 20
GASKET,REED VALVE (MCA)
€ 7.00
21
0211206168
ref: 21
SCREW
€ 2.50
22-1
1311114500
ref: 22-1
MODEL E
PIPE,INTAKE
€ 12.00
22-2
1311114510
ref: 22-2
MODEL F
PIPE,INTAKE
€ 23.50
23
0940252306
ref: 23
CLAMP
€ 6.00
24
1140014890
ref: 24
OPT
GASKET (MCA)
€ 87.00
