FRONT MASTER CYLINDER (MODEL F)

RM125 1984 (E) GENERAL FRANCE (E01 E04)

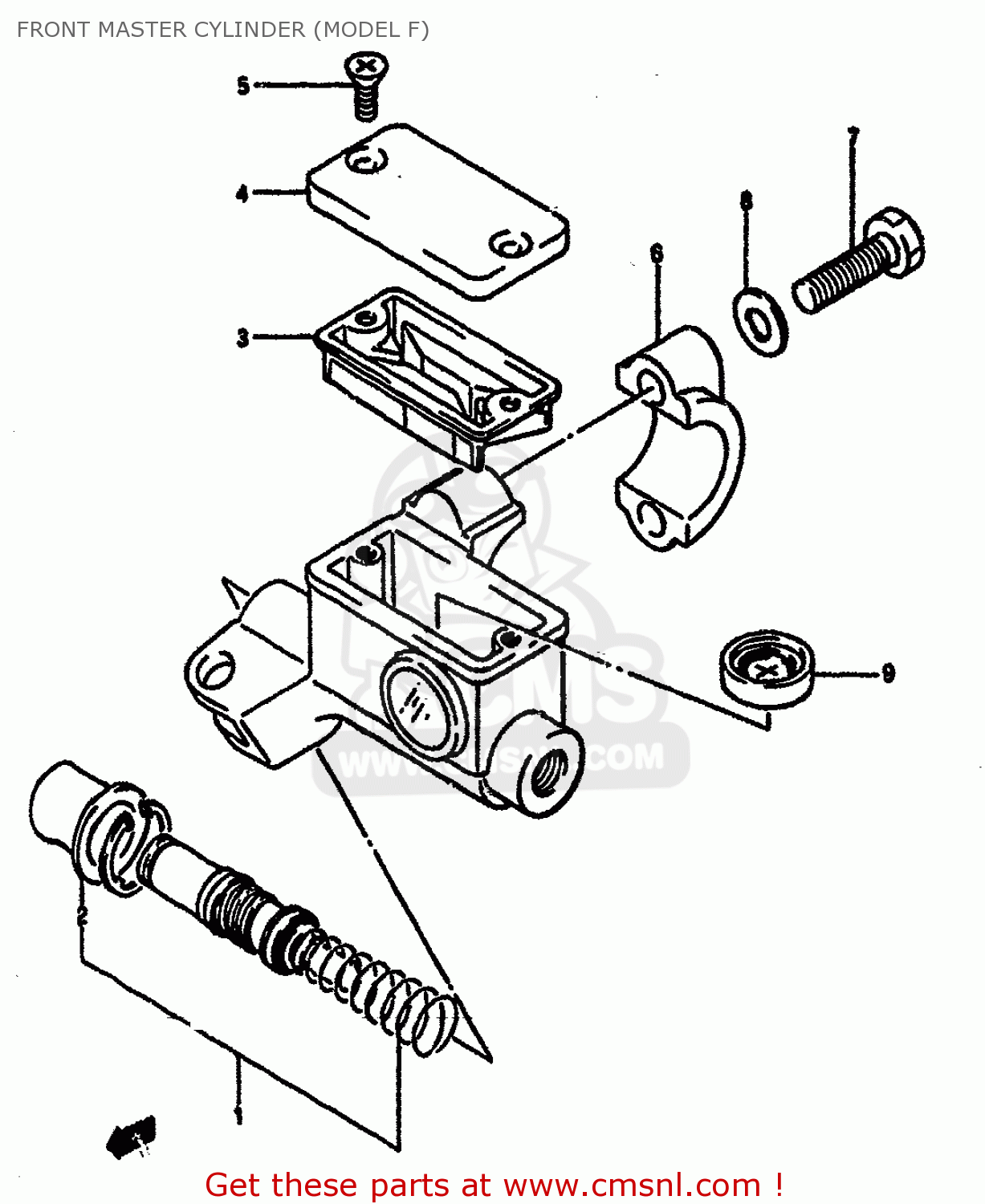

Front master cylinder (model f) diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)

FRONT MASTER CYLINDER (MODEL F) RM125 1984 (E) GENERAL FRANCE (E01 E04)

FRONT MASTER CYLINDER (MODEL F) RM125 1984 (E) GENERAL FRANCE (E01 E04)

prices are in EUR

ref

part #

description

quantity

0

5960014500
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 223.50

1

5960014820
ref: 1

PISTON/CUP SET,FR MASTER

€ 31.00

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966714500
ref: 3

DIAPHRAGM

€ 6.50

4

5966914500
ref: 4

CAP

€ 10.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967114500
ref: 6

HOLDER,MASTER CYLINDER

€ 7.50

7

0110706255
ref: 7

BOLT

€ 2.50

8

0832221064
ref: 8

WASHER

€ 2.00

9

5974814500
ref: 9

SEPARATOR

€ 6.00
