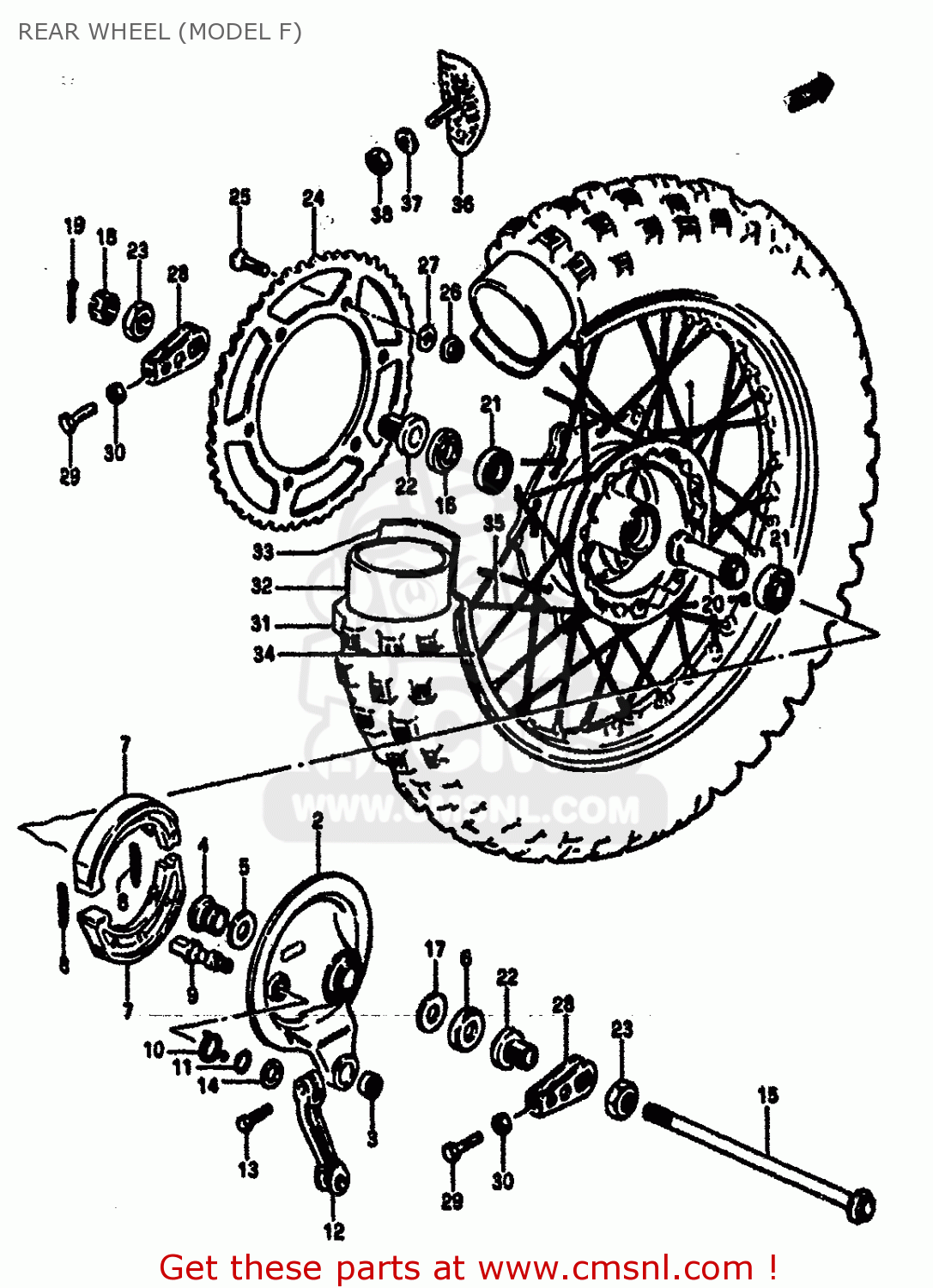

REAR WHEEL (MODEL F)

ref

part #

description

quantity

1

6411014110
ref: 1

DRUM,REAR HUB

€ 310.50

2

6420014880
ref: 2

PANEL SET,REAR HUB

€ 155.50

3

6435214500
ref: 3

BEARING

€ 39.50

4

6421314100
ref: 4

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

6484514100
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

7

6441014100
ref: 7

SHOE,BRAKE (MCA)

€ 41.50

8

0944307001
ref: 8

SPRING(L:34)

€ 2.50

9

5444114101
ref: 9

CAM,FR BRAKE

€ 16.00

10

0944830007
ref: 10

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114500
ref: 12

LEVER,REAR BRAKE CAM

€ 247.00

13

0110706258
ref: 13

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114510
ref: 15

AXLE,REAR.

€ 42.00

16

6475014500
ref: 16

SPACER,RR AXLE,L

€ 15.00

17

0821115281
ref: 17

WASHER,THRUST

€ 2.50

18

0914114004
ref: 18

NUT

€ 5.00

19

0411130308
ref: 19

COTTER PIN

€ 1.50

20

6473014101
ref: 20

SPACER

€ 31.50

21

0812362027
ref: 21

BEARING

€ 14.50

22

6478114500
ref: 22

SPACER,CHAIN ADJUSTER

€ 14.00

23

0914022006
ref: 23

NUT

€ 6.00

24-1

6451140285
ref: 24-1

SPROCKET,REAR

€ 195.00

24-2

6451140266
ref: 24-2
OPT

SPROCKET,REAR (NT:52)(AL)

€ 118.50

24-3

6451140271
ref: 24-3
OPT

SPROCKET,REAR

€ 99.00

25

0912008004
ref: 25

SCREW(8X33.5)

€ 3.00

26

0831931088
ref: 26

NUT

€ 2.50

27

0832211088
ref: 27

WASHER

€ 2.00

28

6141040200
ref: 28

ADJUSTER,CHAIN

€ 19.00

29

0910408006
ref: 29

BOLT

€ 3.00

30

0831012088
ref: 30

NUT

€ 2.00

31

6510014550
ref: 31
DUNLOP

TIRE

€ 0.00

32

6520014540
ref: 32

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

33

6526114540
ref: 33

PROTECTOR

€ 5.50

34

6531114510
ref: 34

RIM,REAR WHEEL (1.85X18)

€ 276.00

35

6532014112
ref: 35

SPOKE SET,REAR

€ 50.00

36

6527046910
ref: 36

STOPPER,BEAD

€ 30.50

37

0832211088
ref: 37

WASHER

€ 2.00

38

0831012088
ref: 38

NUT

€ 2.00
