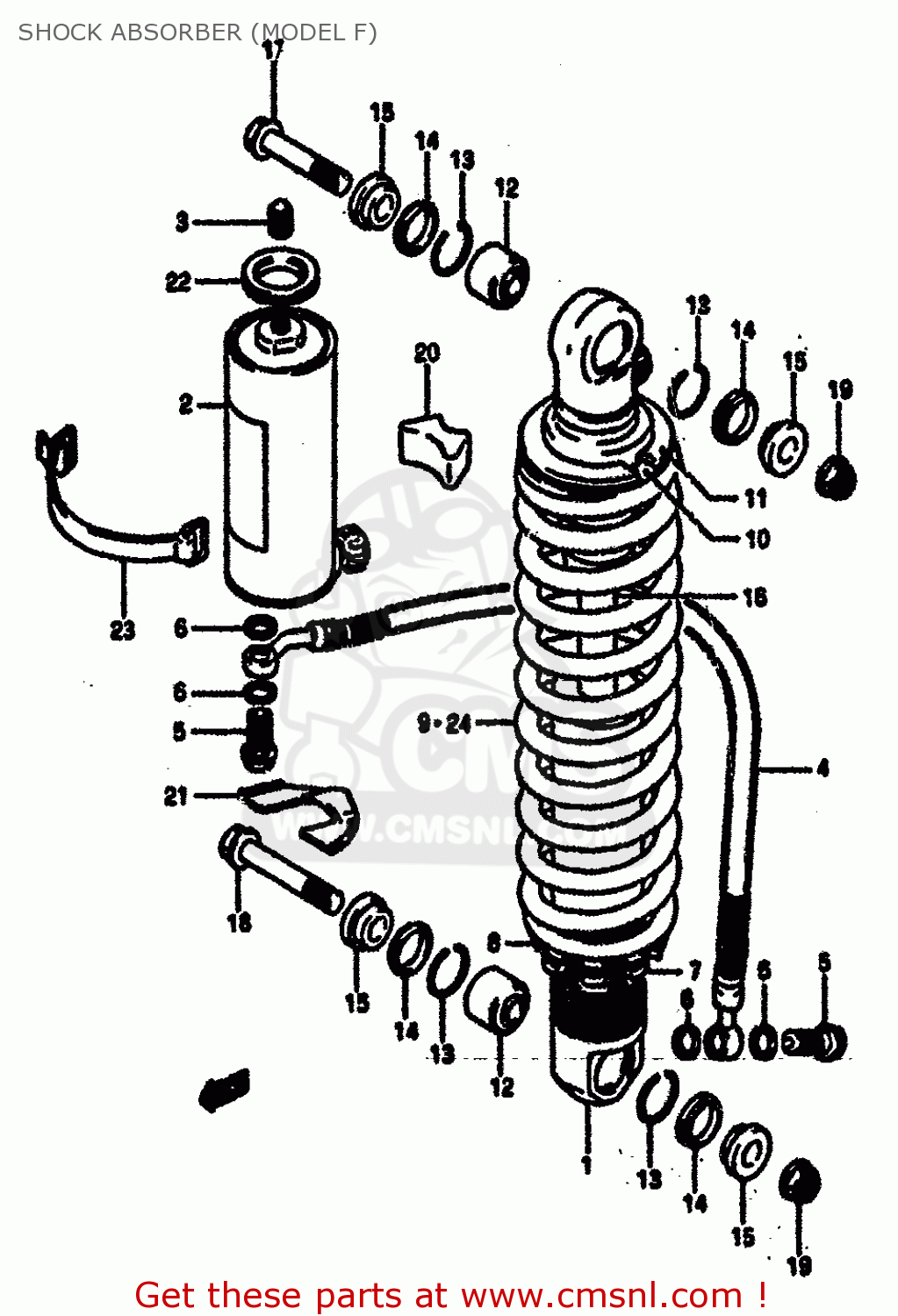

SHOCK ABSORBER (MODEL F)

ref

part #

description

quantity

1

621001453019F
ref: 1
BLUE

ABSORBER ASSEMBLY,REAR SHOCK

€ 552.50

2

6227014520
ref: 2

RESERVOIR TANK,REAR SHOCK

€ 0.00

3

5129420400
ref: 3

CAP

€ 3.50

4

6228014520
ref: 4

HOSE,REAR SHOCK ABSORBER

€ 77.50

5

6228114140
ref: 5

BOLT,REAR SHOCK ABSORBER

€ 0.00

6

5114841310
ref: 6

GASKET (NAS)

€ 2.50

7

6219414140
ref: 7

GUIDE,REAR SHOCK ABSORBER SPRING

€ 0.00

8

6219114140
ref: 8

GUIDE,SPRING

€ 15.00

9

6221114520
ref: 9

SPRING

€ 0.00

10

6222414520
ref: 10

WASHER

€ 9.50

11

6222514520
ref: 11

GUIDE,SPRING

€ 0.00

12

6217543400
ref: 12

BEARING,REAR SHOCK ABSORBER

€ 66.00

13

6227714200
ref: 13

RING

€ 1.50

14

6222614520
ref: 14

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

15

6268414520
ref: 15

COLLAR

€ 7.00

16

6212014520
ref: 16

ROD,PISTON

€ 0.00

17

6231114500
ref: 17

BOLT,REAR SHOCK ABSORBER

€ 3.50

18

0910310030
ref: 18

BOLT(10X52)

€ 8.50

19

0831931108
ref: 19

NUT

€ 3.00

20

6233114501
ref: 20

CUSHION,RESERVOIR TANK

€ 4.50

21

6242314500
ref: 21

CUSHION,RESERVOIR TANK

€ 3.50

22

6242314510
ref: 22

CUSHION,RESERVOIR TANK

€ 3.00

23

0946200082
ref: 23

BAND

€ 9.00

24-1

6221114537
ref: 24-1
OPT

SPRING

€ 0.00

24-2

6221114527
ref: 24-2
OPT

SPRING

€ 0.00

all assemblies
