TRANSMISSION (MODEL E)

RM125 1984 (E) GENERAL FRANCE (E01 E04)

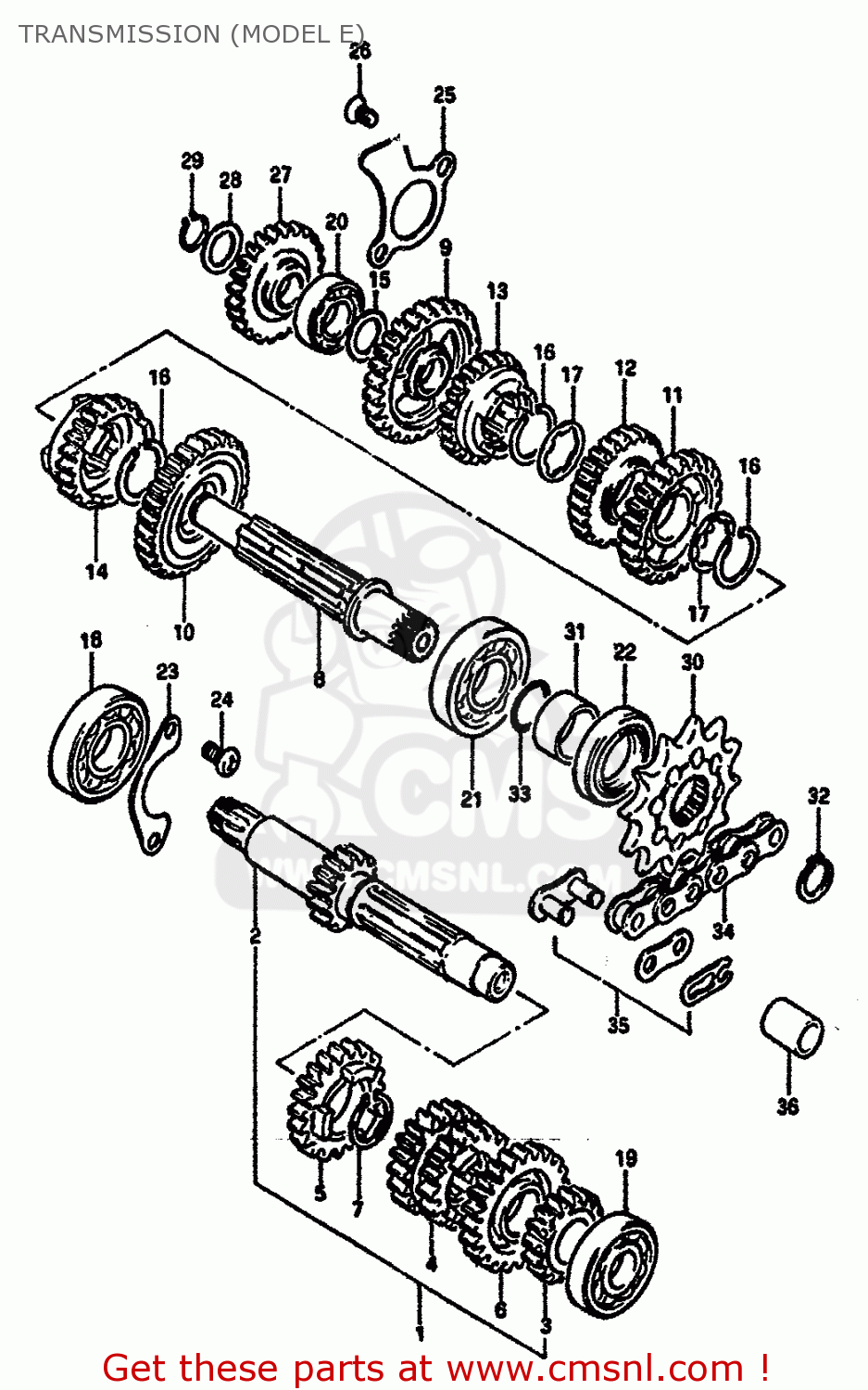

Transmission (model e) diagram RM125 1984 (E) GENERAL FRANCE (E01 E04)

TRANSMISSION (MODEL E) RM125 1984 (E) GENERAL FRANCE (E01 E04)
TRANSMISSION (MODEL E) RM125 1984 (E) GENERAL FRANCE (E01 E04)
TRANSMISSION (MODEL E) RM125 1984 (E) GENERAL FRANCE (E01 E04)
prices are in EUR
ref
part #
description
quantity
1
2412014502
ref: 1
SEE NOTE 1
COUNTER SHAFT ASSEMBLY
€ 278.00
2
2412114120
ref: 2
SHAFT,COUNTER
2412114120
€ 56.00
3
2422114122
ref: 3
SEE NOTE 3
GEAR,2ND DRIVE
2422114122
€ 43.50
4
2423114501
ref: 4
SEE NOTE 2
GEAR,THIRD & FOURTH DRIVE
2423114501
€ 76.50
5
2425014500
ref: 5
GEAR,FIFTH DRIVE
2425014500
€ 22.00
6
2426014500
ref: 6
GEAR,6TH DRIVE(NT:23)
2426014500
€ 46.00
7
0938020007
ref: 7
CIRCLIP
0938020007
€ 3.00
8
2413114120
ref: 8
SHAFT,DRIVE
2413114120
€ 114.00
9
2431114500
ref: 9
GEAR,FIRST DRIVEN (NT:31)
€ 60.50
10
2432114501
ref: 10
SEE NOTE 4
GEAR,SECOND DRIVEN
2432114501
€ 37.00
11
2433114501
ref: 11
GEAR,THIRD DRIVEN (NT:24)
2433114501
€ 37.50
12
2434114500
ref: 12
GEAR,FOURTH DRIVEN (NT:25)
2434114500
€ 40.00
13
2435114500
ref: 13
GEAR,FIFTH DRIVEN (NT:23)
2435114500
€ 22.50
14
2436114500
ref: 14
GEAR,SIXTH DRIVEN (NT:22)
2436114500
€ 36.50
15
0821115261
ref: 15
WASHER,THRUST
0821115261
€ 2.50
16
0938022006
ref: 16
CIRCLIP
0938022006
€ 3.00
17
0916722011
ref: 17
WASHER,LOCK
0916722011
€ 3.00
18
0926220062
ref: 18
BEARING
0926220062
€ 28.00
19
0811360020
ref: 19
BEARING
0811360020
€ 14.00
20
0811362027
ref: 20
BEARING
0811362027
€ 14.50
21
0926220043
ref: 21
BEARING(20X47X14)
0926220043
€ 27.00
22
0928325035
ref: 22
SEAL,OIL(25X40X7)
0928325035
€ 6.50
23
2474148000
ref: 23
RETAINER,CNTR SHAFT BEARING
2474148000
€ 5.50
24
0211206128
ref: 24
SCREW 6X12
0211206128
€ 2.00
25
2475114102
ref: 25
RETAINER,DRIVESHAFT
€ 7.00
26
0212206128
ref: 26
SCREW
0212206128
€ 3.00
27
2626014100
ref: 27
GEAR,KICK STARTER IDLE
2626014100
€ 61.50
28
0821115241
ref: 28
WASHER,THRUST
€ 4.00
29
0833131159
ref: 29
CIRCLIP,15MM
0833131159
€ 2.00
30-1
2751114110
ref: 30-1
SPROCKET,ENGINE
€ 19.00
30-2
2751114100
ref: 30-2
OPT
SPROCKET,ENGINE
€ 23.50
30-3
2751114120
ref: 30-3
OPT
SPROCKET,ENGINE
2751114120
€ 27.50
31
0918020039
ref: 31
SPACER(20X25X12.5)
0918020039
€ 9.50
32
0938020007
ref: 32
CIRCLIP
0938020007
€ 3.00
33
0928020001
ref: 33
O RING(D:1,ID:19.5)
0928020001
€ 2.00
34
2760014510
ref: 34
CHAIN ASSEMBLY,DRIVE
€ 80.00
35-1
2762036111
ref: 35-1
JOINT ASSEMBLY,CHAIN
€ 8.50
35-2
2762010221
ref: 35-2
JOINT ASSEMBLY,CHAIN
€ 4.50
36
0918012108
ref: 36
CUSHION 12X20X20
0918012108
€ 3.50
