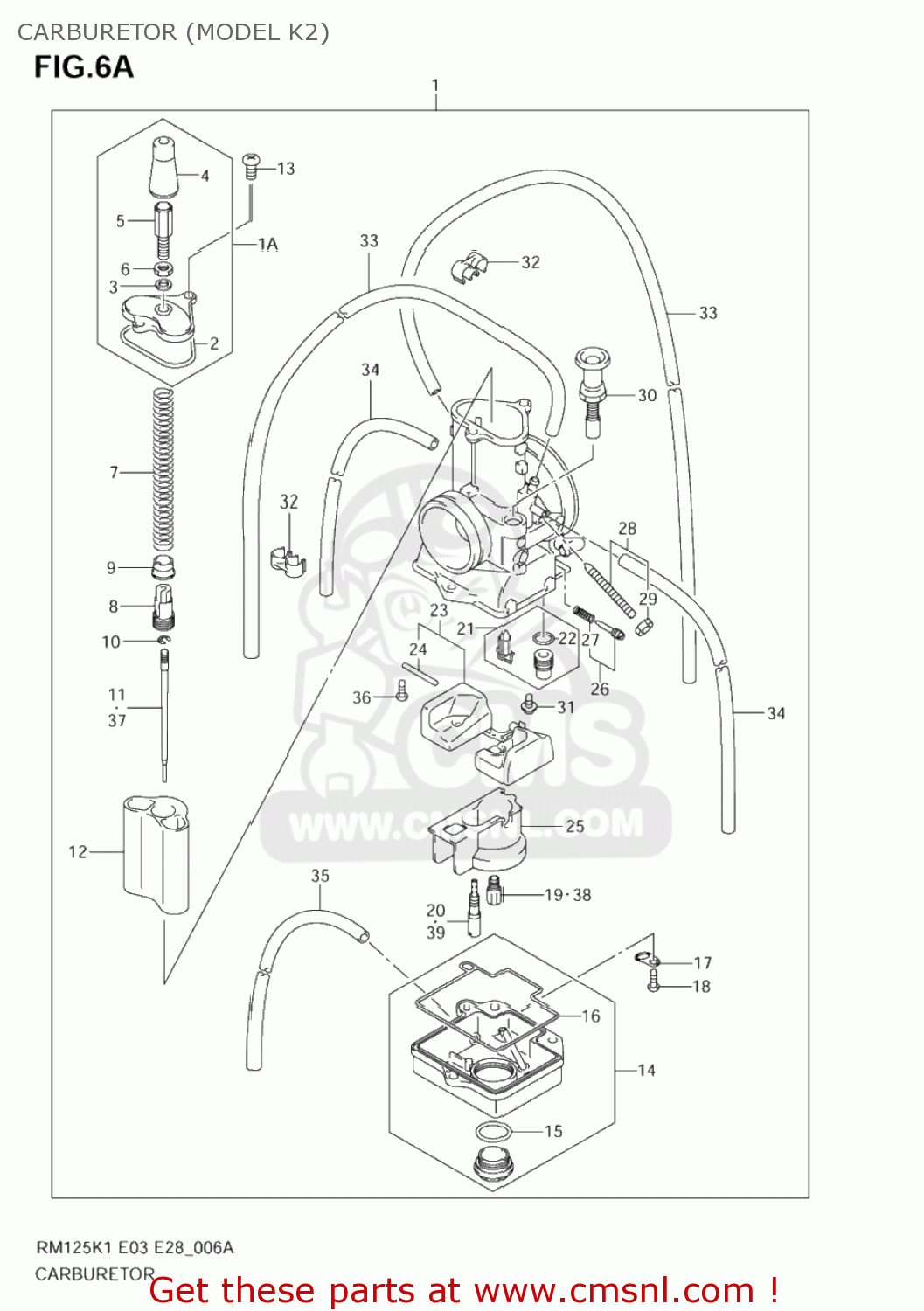

CARBURETOR (MODEL K2)

ref

part #

description

quantity

1

1320036F10
ref: 1

CARBURETOR ASSY

€ 256.50

1A

1326036F00
ref: 1A

TOP CAP ASSY

€ 46.50

2

1325836F00
ref: 2

PACKING (NAS)

€ 5.00

3

1353109300
ref: 3

WASHER,DRAIN PLUG

€ 3.00

4

1368116600
ref: 4

CAP,RUBBER

€ 7.00

5

1357741612
ref: 5

ADJUSTER,CABLE

€ 8.00

6

1366116600
ref: 6

NUT

€ 5.00

7

1357336F00
ref: 7

SPRING

€ 8.00

8

1351836F00
ref: 8

GUIDE HOLDER

€ 12.50

9

1342436F00
ref: 9

RING

€ 5.00

10

1339417E60
ref: 10

E RING,MULTIPLE JET NOZZLE

€ 1.50

11

1338336FC0
ref: 11

NEEDLE,JET(6BGY27-77)

€ 15.00

12

1355136F10
ref: 12

VALVE,PISTON

€ 154.00

13

1360248B10
ref: 13

SCREW

€ 3.00

14

1325036F10
ref: 14

FLOAT BODY ASSY

€ 58.50

15

1324629630
ref: 15

O RING

€ 5.00

16

1325136F00
ref: 16

O RING

€ 10.00

17

1369336500
ref: 17

PLATE,CARBURETOR

€ 3.50

18

1360105148
ref: 18
13601-05148-XC0

SCREW(5X14)

€ 3.00

19

0949192002
ref: 19

JET,MAIN(460)

€ 12.50

20

0949232010
ref: 20

JET,PILOT(32.5)

€ 11.50

21

1337036F00
ref: 21

VALVE ASSY,NEEDLE

€ 40.00

22

1337435C00
ref: 22

O RING,NEEDLE VALVE SEAT

€ 6.00

23

1324036F00
ref: 23

FLOAT SET

€ 52.50

24

1325420010
ref: 24

PIN,FLOAT

€ 3.00

25

1341836F00
ref: 25

HOLDER

€ 7.50

26

1328036F00
ref: 26

ADJUSTER SET (AS)

€ 9.00

27

1326835010
ref: 27

SPRING

€ 3.00

28

1327036F00
ref: 28

ADJUSTER SET (PV)

€ 12.00

29

1360747070
ref: 29

NUT

€ 4.00

30

1341136F00
ref: 30

PLUNGER ASSY

€ 42.50

31

1360205A10
ref: 31

SCREW

€ 4.00

32

1361942E00
ref: 32

CLIP

€ 4.50

33

0935135653600
ref: 33

HOSE(3.5X6.5X600)

€ 5.50

34

0935135653600
ref: 34

HOSE(3.5X6.5X600)

€ 5.50

35

0935130503600
ref: 35

HOSE(3X5X600)

€ 6.50

36

0211204083
ref: 36
02112-0408A

SCREW

€ 2.00

37-1

1338336FJ0
ref: 37-1

NEEDLE,JET(6BGY27-71)

€ 9.50

37-10

1338336FB0
ref: 37-10

NEEDLE,JET(6BG

€ 12.00

37-2

1338336FG0
ref: 37-2

NEEDLE,JET(6BGY27-73)

€ 9.00

37-3

1338336FE0
ref: 37-3

NEEDLE,JET(6BGY27-75)

€ 9.00

37-4

1338336FC0
ref: 37-4

NEEDLE,JET(6BGY27-77)

€ 15.00

37-5

1338336FA0
ref: 37-5

NEEDLE,JET(6BGY27-79)

€ 9.50

37-6

1338336FK0
ref: 37-6

NEEDLE,JET(6BGY28-71)

€ 9.50

37-7

1338336FH0
ref: 37-7

NEEDLE,JET(6BGY28-73)

€ 9.50

37-8

1338336FF0
ref: 37-8

NEEDLE,JET(6BGY28-75)

€ 9.50

37-9

1338336FD0
ref: 37-9

NEEDLE,JET(6BGY28-77)

€ 12.00

38-1

0949180010
ref: 38-1

JET,MAIN(400)

€ 8.50

38-10

0949198001
ref: 38-10

JET,MAIN(490)

€ 12.50

38-11

0949110001
ref: 38-11

JET,MAIN(500)

€ 15.50

38-12

0949152008
ref: 38-12

JET,MAIN(520)

€ 8.50

38-13

0949154003
ref: 38-13

JET,MAIN(540)

€ 9.50

38-14

0949156005
ref: 38-14

JET,MAIN(560)

€ 8.00

38-15

0949158007
ref: 38-15

JET,MAIN(580)

€ 9.00

38-16

0949160013
ref: 38-16

JET,MAIN(600)

€ 8.50

38-2

0949182007
ref: 38-2

JET,MAIN(410)

€ 11.00

38-3

0949184008
ref: 38-3

JET,MAIN(420)

€ 15.50

38-4

0949186002
ref: 38-4

JET,MAIN (#430)

€ 8.50

38-5

0949188001
ref: 38-5

JET,MAIN(440)

€ 15.50

38-6

0949190005
ref: 38-6

JET,MAIN(450)

€ 12.50

38-7

0949192002
ref: 38-7

JET,MAIN(460)

€ 12.50

38-8

0949194004
ref: 38-8

JET,MAIN(470)

€ 12.50

38-9

0949196001
ref: 38-9

JET,MAIN(480)

€ 12.50

39-1

0949225011
ref: 39-1

JET,PILOT(25)

€ 15.50

39-2

0949227011
ref: 39-2

JET,PILOT(27.5)

€ 13.00

39-3

0949230014
ref: 39-3

JET,PILOT(30)

€ 15.50

39-4

0949232010
ref: 39-4

JET,PILOT(32.5)

€ 11.50

39-5

0949235021
ref: 39-5

JET,PILOT(35)

€ 12.50
