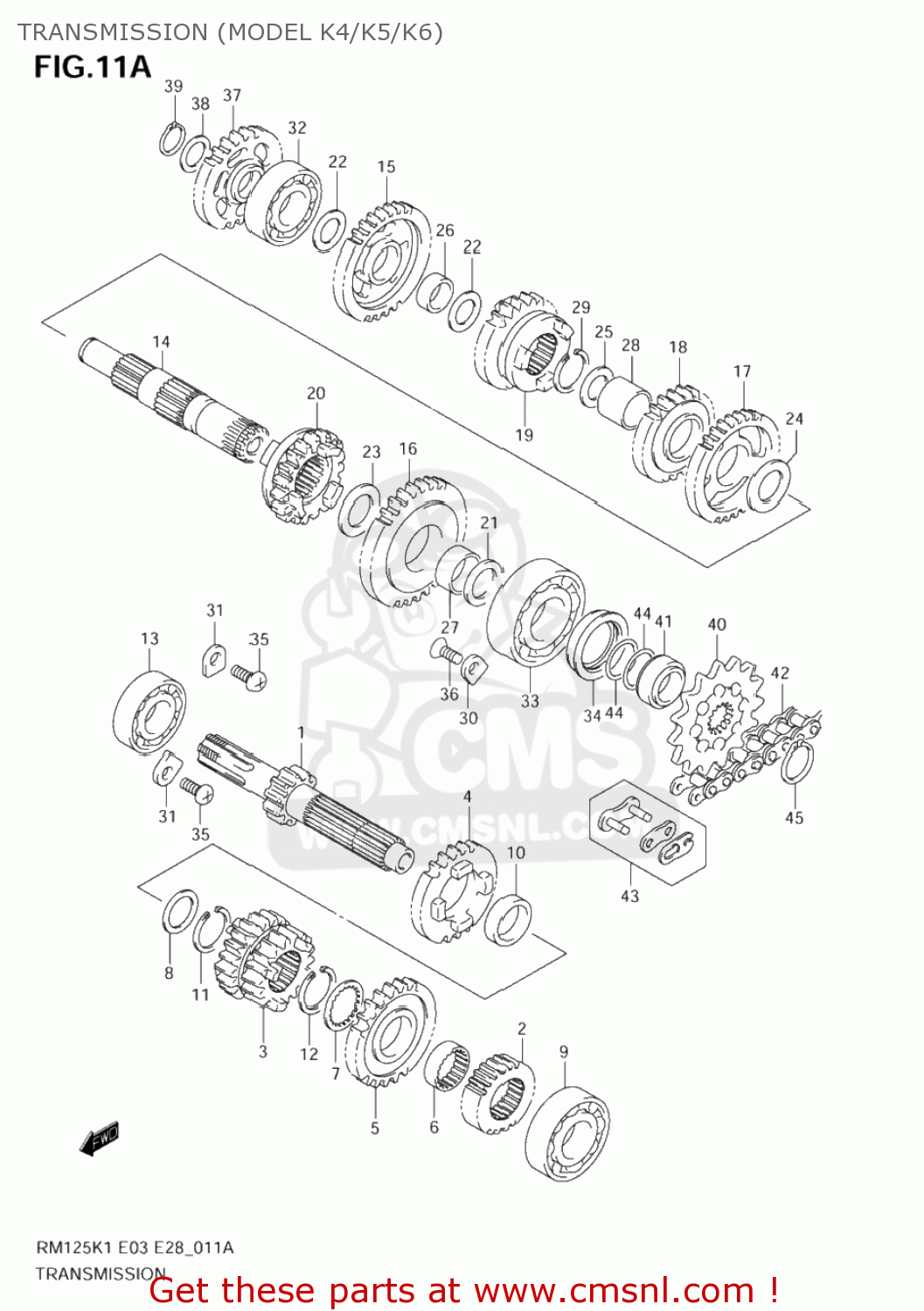

TRANSMISSION (MODEL K4/K5/K6)

ref

part #

description

quantity

1-1

2412036F10
ref: 1-1
24120-36F11

SHAFT,COUNTER

€ 189.00

1-2

2412036F11
ref: 1-2

SHAFT,COUNTER(NT:14)

€ 189.00

2

2422136F10
ref: 2

GEAR,2ND DRIVE(NT:16)

€ 53.00

3

2423136F00
ref: 3

GEAR,3RD & 4TH DRIVE(NT:18/20)

€ 122.50

4

2425143D20
ref: 4

GEAR,5TH DRIVE(NT:19)

€ 74.50

5

2426143D01
ref: 5

GEAR,6TH DRIVE(NT:20)

€ 74.00

6

2426236F00
ref: 6

BUSH,6TH DRIVE GEAR

€ 18.50

7

0916722024
ref: 7

WASHER,LOCK

€ 3.00

8

0918122139
ref: 8

SHIM(22X28X1)

€ 4.00

9

0926217040
ref: 9

BEARING(17X40X9.5)

€ 17.50

10

0930022008
ref: 10

BUSH(22X26X9)

€ 10.50

11

0938022006
ref: 11

CIRCLIP

€ 3.00

12

0938022006
ref: 12

CIRCLIP

€ 3.00

13

0926220122
ref: 13

BEARING(20X47X12)

€ 27.00

14

2413136F00
ref: 14

SHAFT,DRIVE

€ 139.00

15

2431136F00
ref: 15

GEAR,1ST DRIVEN(NT:29)

€ 90.50

16

2432136F01
ref: 16

GEAR,2ND DRIVEN(NT:27)

€ 90.50

17

2433136E01
ref: 17

GEAR,3RD DRIVEN(NT:26)

€ 89.00

18

2434136E00
ref: 18

GEAR,4TH DRIVEN(NT:24)

€ 86.50

19

2435136F00
ref: 19

GEAR,5TH DRIVEN(NT:20)

€ 82.00

20-1

2436136E02
ref: 20-1
24361-36E03

GEAR,6TH DRIVE

€ 81.00

20-2

2436136E03
ref: 20-2

GEAR,6TH DRIVEN(NT:19)

€ 81.00

21

0916020074
ref: 21

WASHER(20X30X3)

€ 4.50

22

0918117167
ref: 22

SHIM(17X26X1)

€ 3.00

23

0918122167
ref: 23

SHIM(22X30X1)

€ 3.00

24

0918122167
ref: 24

SHIM(22X30X1)

€ 3.00

25

0918122167
ref: 25

SHIM(22X30X1)

€ 3.00

26

0930017012
ref: 26

BUSH(17X20X9)

€ 22.50

27

0930022008
ref: 27

BUSH(22X26X9)

€ 10.50

28

0930022018
ref: 28

BUSH(22X25X18)

€ 21.50

29

0938022006
ref: 29

CIRCLIP

€ 3.00

30

2474120A00
ref: 30

RETAINER,COUNTER BEARING,R

€ 2.00

31

2474121A00
ref: 31

RETAINER

€ 2.00

32

0926217040
ref: 32

BEARING(17X40X9.5)

€ 17.50

33

0926220110
ref: 33

BEARING(20X52X12.5)

€ 33.50

34

0928928012
ref: 34

SEAL,OIL(28X38X7.5)

€ 8.00

35

0211206103
ref: 35
02112-0610B

SCREW

€ 1.50

36

0212206123
ref: 36
02122-0612A

SCREW

€ 3.00

37-1

2626043D00
ref: 37-1
26260-43D01

GEAR,KICK STARTER IDLE

€ 67.50

37-2

2626043D01
ref: 37-2

GEAR,KICK STARTER IDLE(NT:26)

€ 67.50

38

0918117130
ref: 38

SHIM(17X24X0.5)

€ 3.00

39

0833131176
ref: 39
08331-3117A

CIRCLIP,17MM

€ 2.00

40-1

2751114111
ref: 40-1

SPROCKET,ENGINE

€ 19.00

40-2

2751114121
ref: 40-2

SPROCKET,ENGINE

€ 27.50

41

2753143D00
ref: 41

SPACER,ENGINE SPROCKET

€ 20.00

42

2760043D01114
ref: 42
27600-43D02-114

CHAIN ASSY,DRI

€ 72.50

43

2762043D00
ref: 43

JOINT SET,CHAIN

€ 5.00

44

0928020006
ref: 44

O RING(D:1.9,ID:19.8)

€ 2.50

45

0938020007
ref: 45

CIRCLIP

€ 3.00
