FRONT WHEEL (MODEL K1/K2/K3/K4)

RM125 2006 (K6) USA (E03)

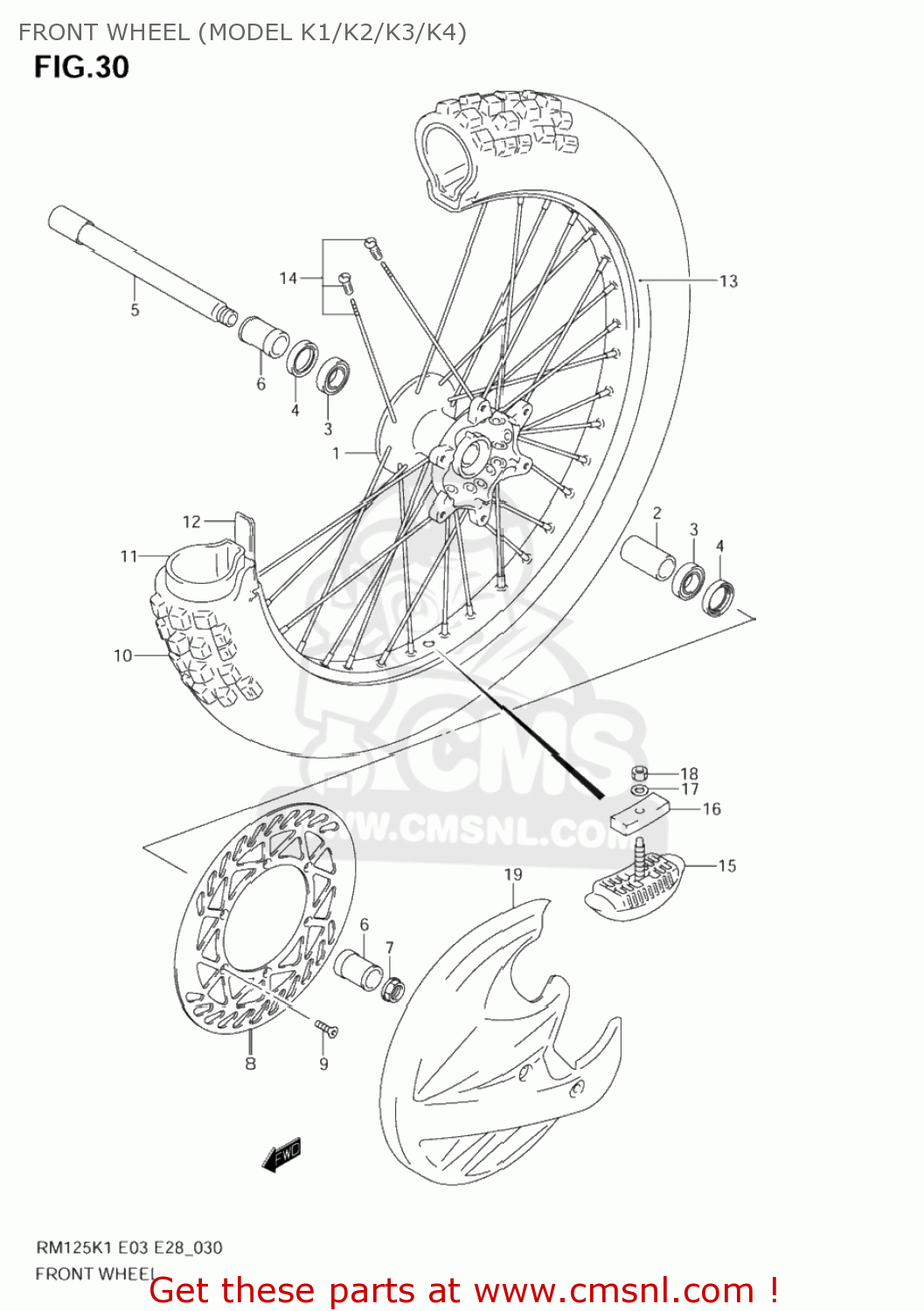

Front wheel (model k1/k2/k3/k4) diagram RM125 2006 (K6) USA (E03)

FRONT WHEEL (MODEL K1/K2/K3/K4) RM125 2006 (K6) USA (E03)

FRONT WHEEL (MODEL K1/K2/K3/K4) RM125 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411136E00
ref: 1

HUB,FR WHEEL

€ 253.50

2

5473136E00
ref: 2

SPACER,FR HUB BEARING

€ 15.50

2

5473136E00
ref: 2

SPACER,FR HUB BEARING

€ 15.50

3

0813069047
ref: 3

BEARING

€ 37.50

4

0928328023
ref: 4

SEAL,OIL(28X37X7)

€ 7.00

5

5471137F00
ref: 5

AXLE,FR

€ 68.50

6-1

5474137F00
ref: 6-1
54741-37F01

SPACER,FRONT A

€ 22.50

6-2

5474137F01
ref: 6-2

SPACER,FR AXLE

€ 22.50

7

0915918016
ref: 7

NUT

€ 9.00

8-1

5922137F00
ref: 8-1
59221-37F10

DISC,FRONT BRA

€ 136.00

8-2

5922137F10
ref: 8-2

DISC,FR BRAKE

€ 136.00

8-3

5922037F20
ref: 8-3

DISC,FR BRAKE

€ 177.50

9-1

0912006011
ref: 9-1
09120-06014

SCREW

€ 2.50

9-2

0912006014
ref: 9-2

SCREW(6X18)

€ 2.50

10-1

5511036E10
ref: 10-1

TIRE,FR(80/100-21 51M D739F)

€ 0.00

10-1

5511036E10
ref: 10-1

TIRE,FR(80/100-21 51M D739F)

€ 0.00

10-2

5511029F00
ref: 10-2

TIRE,FR(80/100-21 51M)

€ 86.50

10-2

5511029F00
ref: 10-2

TIRE,FR(80/100-21 51M)

€ 86.50

11

5520029F00
ref: 11

TUBE ASSY,WHEEL INNER

€ 26.00

12

5526144AF0
ref: 12

PROTECTOR,WHL INR TUBE

€ 3.00

13-1

5531128C00
ref: 13-1
55311-28C01

RIM,FRONT WHEEL (1.60X2

€ 322.50

13-2

5531137F00
ref: 13-2

RIM,FR WHEEL(1.85X20)

€ 230.50

14-1

5532028E00
ref: 14-1

SPOKE SET,FR WHEEL

€ 97.00

14-2

5532037F00
ref: 14-2

SPOKE SET,FR WHEEL(20INCH)

€ 63.00

14-2

5532037F00
ref: 14-2

SPOKE SET,FR WHEEL(20INCH)

€ 63.00

15

6527014300
ref: 15

STOPPER,BEAD

€ 26.00

16

6527127C00
ref: 16

CUSHION,BEAD STOPPER

€ 5.50

17

0832201083
ref: 17
08322-0108A

WASHER

€ 1.50

18

0831000083
ref: 18
08310-0008A

NUT

€ 1.50

19-1

5923136E20YR1
ref: 19-1
59231-36E20-YU1

COVER,FRONT DI

€ 62.50

19-2

5923136E20YU1
ref: 19-2

COVER,FR BRAKE DISC

€ 62.50
