HANDLE LEVER (MODEL K4/K5/K6)
RM125 2006 (K6) USA (E03)

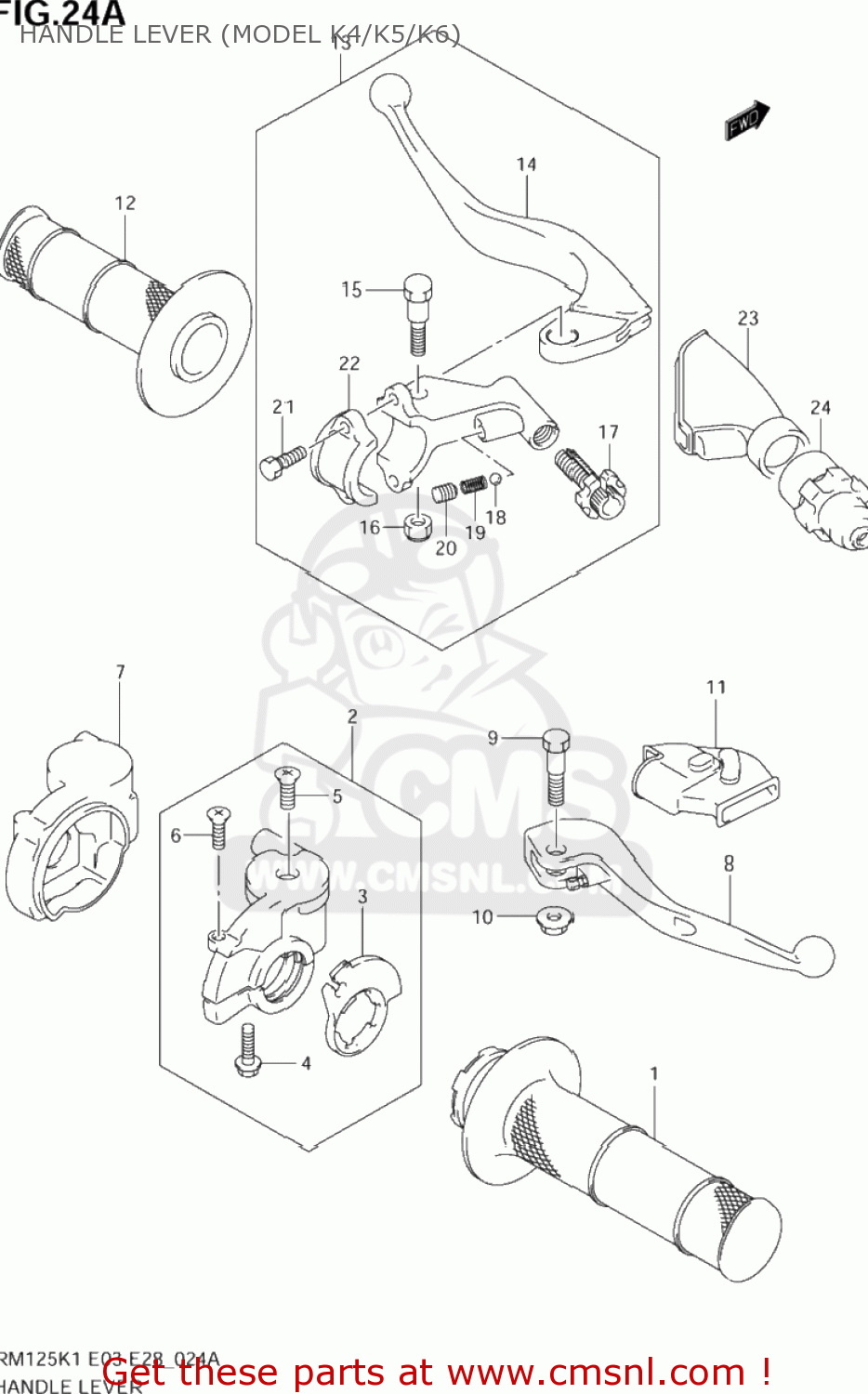

Handle lever (model k4/k5/k6) diagram RM125 2006 (K6) USA (E03)
HANDLE LEVER (MODEL K4/K5/K6) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711036E01
ref: 1
GRIP,THROTTLE
€ 22.00
2
5710028E01
ref: 2
CASE ASSY,THROTTLE
€ 83.00
3
5711428E00
ref: 3
ROTOR,THROTTLE
€ 7.50
4
0154706253
ref: 4
01547-0625B
SCREW
€ 2.50
5
0212204103
ref: 5
02122-0410A
SCREW,UPPER
€ 2.50
6
0212204163
ref: 6
02122-0416A
SCREW
€ 2.00
7
5712928E01
ref: 7
COVER,THROTTLE CASE
€ 27.00
8
5731037F00
ref: 8
LEVER ASSY,BRAKE
€ 26.00
9
5743114500
ref: 9
BOLT,BRAKE LEVER
€ 4.00
10
0831610063
ref: 10
08316-1006B
NUT
€ 2.50
11
5734337F00
ref: 11
COVER,BRAKE LEVER
€ 27.00
12
5721136E01
ref: 12
GRIP,L
€ 11.50
13-1
5750037F10
ref: 13-1
57500-37F11
LEVER ASSY,CLU
€ 143.50
13-2
5750037F11
ref: 13-2
LEVER ASSY,CLUTCH
€ 143.50
14
5762128C40
ref: 14
LEVER,CLUTCH
€ 37.50
15
5743145C01
ref: 15
BOLT,LEVER PIVOT
€ 10.50
16
0831921068
ref: 16
08319-2106A
NUT 6MM
€ 2.00
17
5744137F00
ref: 17
ADJUSTER,CLUTCH CABLE
€ 64.00
18
0611106003
ref: 18
BALL
€ 1.50
19
0944004003
ref: 19
SPRING
€ 1.50
20
0913406009
ref: 20
SCREW(6X8)
€ 1.50
21
0910306234
ref: 21
BOLT(6X16)
€ 2.50
22
5751237F00
ref: 22
HOLDER
€ 13.50
23
5734137F00
ref: 23
COVER,CLUTCH LEVER
€ 14.50
24
5734237F00
ref: 24
COVER,CLUTCH ADJUSTER
€ 5.50
