REAR WHEEL (MODEL K4)
RM125 2006 (K6) USA (E03)

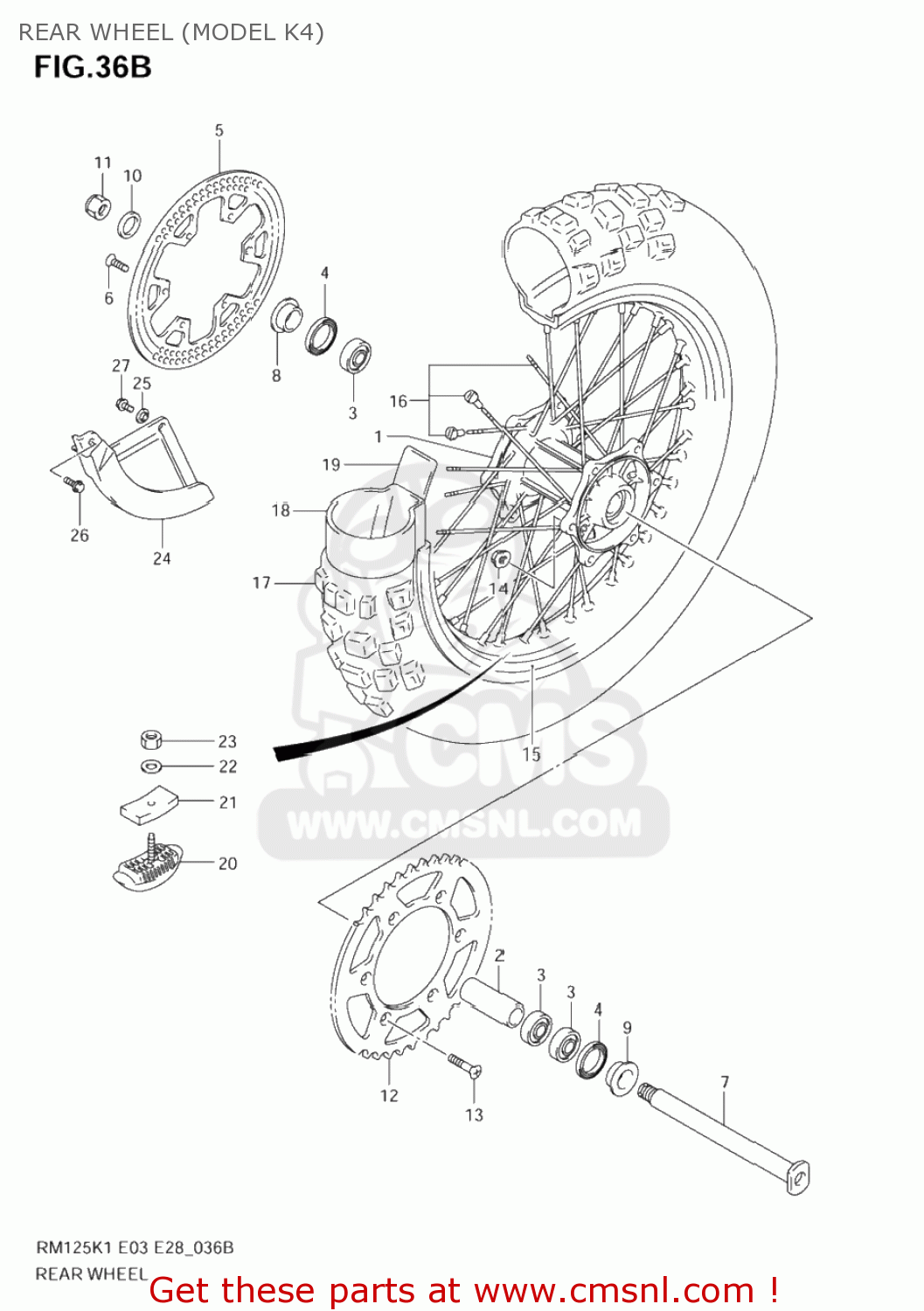

Rear wheel (model k4) diagram RM125 2006 (K6) USA (E03)
REAR WHEEL (MODEL K4) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411136E00
ref: 1
HUB,RR WHEEL
€ 361.00
2
6473136E00
ref: 2
SPACER,RR HUB BEARING
€ 22.50
3
0926222033
ref: 3
BEARING(22X44X12)
€ 32.50
4
0928330023
ref: 4
SEAL,OIL(30X44X7)
€ 8.50
5
6921137F10
ref: 5
DISC,RR BRAKE
€ 151.00
6
0912006014
ref: 6
SCREW(6X18)
€ 2.50
7
6471137F00
ref: 7
AXLE,RR
€ 89.00
8
6475136E00
ref: 8
SPACER,RR AXLE
€ 19.00
9
6475136E00
ref: 9
SPACER,RR AXLE
€ 19.00
10
0916019022
ref: 10
WASHER(19X32X3.2)
€ 5.00
11
0915918007
ref: 11
NUT
€ 14.00
12-1
6451128E00
ref: 12-1
SPROCKET,RR(NT:49)
€ 99.00
12-2
6451100B12
ref: 12-2
SPROCKET,RR(NT:50)
€ 86.00
12-3
6451114D60
ref: 12-3
SPROCKET,RR(NT:48)
€ 195.00
12-4
6451140261
ref: 12-4
SPROCKET,RR(NT:51 AL)
€ 87.50
13
0912008017
ref: 13
BOLT(8X28)
€ 2.00
14
0915908067
ref: 14
NUT
€ 5.50
15
6531136E00
ref: 15
RIM,RR WHEEL(1.85X19 AL)
€ 357.00
16
6532037F00
ref: 16
SPOKE SET,RR WHEEL
€ 124.00
17-1
6511036E10
ref: 17-1
TIRE,REAR 100/90-19
€ 84.00
17-1
6511036E10
ref: 17-1
TIRE,REAR 100/90-19
€ 84.00
17-2
6511036F00
ref: 17-2
TIRE,RR(100/90 19)
€ 154.50
17-2
6511036F00
ref: 17-2
TIRE,RR(100/90 19)
€ 154.50
18
5520044610
ref: 18
TUBE
€ 41.00
19
6526101B30
ref: 19
PROTECTOR,WHL INR TUBE
€ 3.50
20
6527043D00
ref: 20
STOPPER,BEAD(1.85)
€ 30.50
21
6527127C00
ref: 21
CUSHION,BEAD STOPPER
€ 5.50
22
0832201083
ref: 22
08322-0108A
WASHER
€ 1.50
23
0831000083
ref: 23
08310-0008A
NUT
€ 1.50
24
6923137F01
ref: 24
COVER,RR DISC
€ 35.50
25
6923237F00
ref: 25
69232-37F01
WASHER,RR BRAK
€ 7.50
26
0155006203
ref: 26
01550-0620A
BOLT
€ 2.50
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
