REAR SWINGING ARM (MODEL K5/K6)
RM125 2006 (K6) USA (E03)

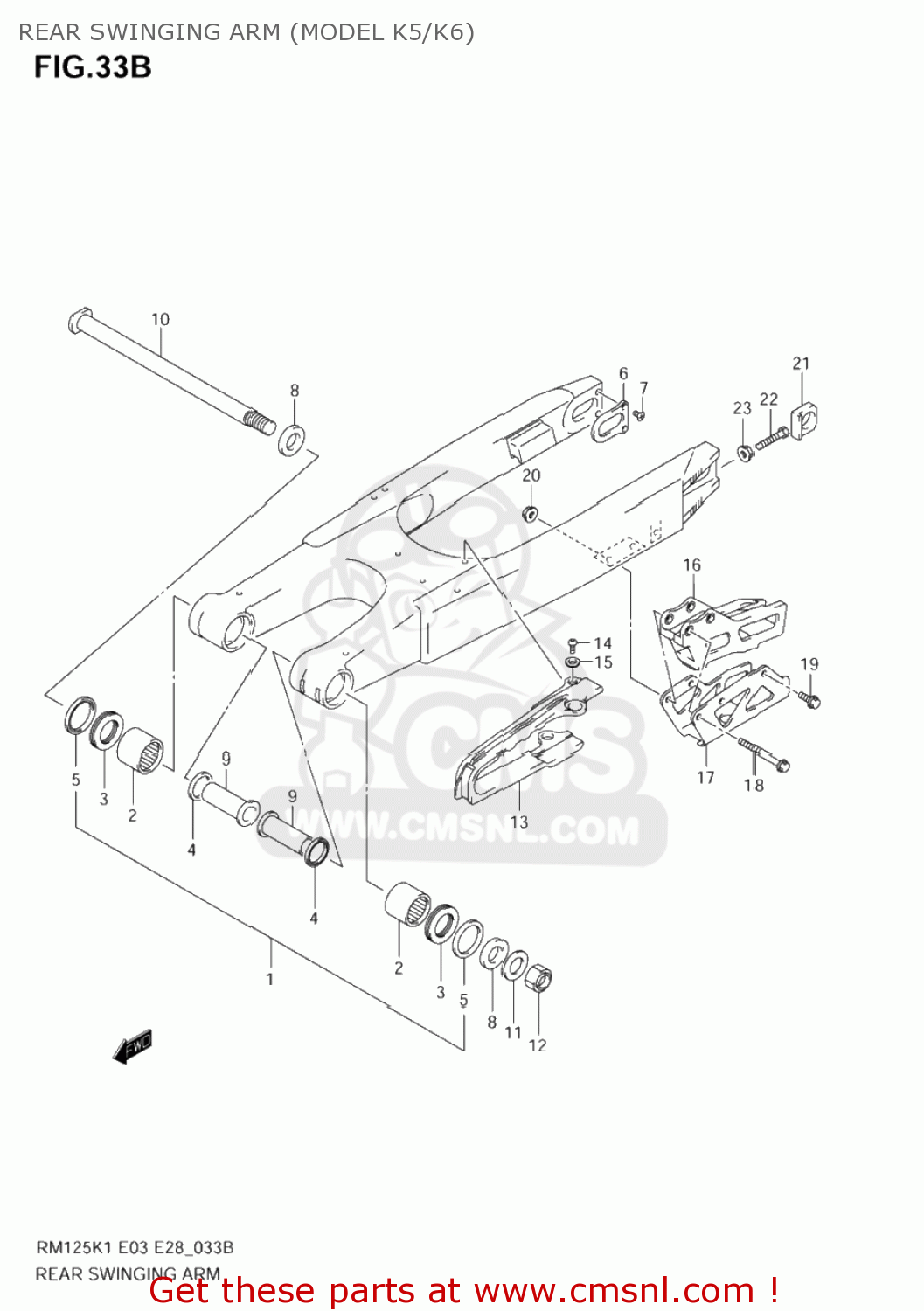

Rear swinging arm (model k5/k6) diagram RM125 2006 (K6) USA (E03)
REAR SWINGING ARM (MODEL K5/K6) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100037F40
ref: 1-1
SWINGINGARM ASSY,RR
€ 1,002.50
1-2
6100037F50
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,317.00
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
€ 3.50
6
6112837E20
ref: 6
PLATE,RR SWING ARM RR
€ 12.50
7
0212204103
ref: 7
02122-0410A
SCREW,UPPER
€ 2.50
8
6125136E01
ref: 8
SPACER,RR SWGARM PIVOT OUTER
€ 6.00
9
6125237F01
ref: 9
SPACER,SWGARM PIVOT INNER
€ 17.00
10
6121128C00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 46.50
11
0832201163
ref: 11
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
12
0915916007
ref: 12
NUT
€ 10.50
13-1
6127337F10
ref: 13-1
BUFFER,CHAIN TOUCH DEFENSE
€ 44.00
13-2
6127337F20
ref: 13-2
BUFFER,CHAIN TOUCH DEFENSE
€ 48.50
14
0211205083
ref: 14
02112-0508A
SCREW
€ 2.00
15
0916905022
ref: 15
WASHER
€ 3.50
16
6134135G00
ref: 16
GUIDE,CHAIN
€ 43.00
17
6134237F00
ref: 17
PLATE,CHAIN GUIDE
€ 31.00
18
0910306242
ref: 18
BOLT(6X45)
€ 4.00
19
0910306233
ref: 19
BOLT(6X12)
€ 2.00
20
0831610063
ref: 20
08316-1006B
NUT
€ 2.50
21
6144537F10
ref: 21
WASHER,CHAIN ADJUSTER
€ 34.00
22
0910008287
ref: 22
BOLT(8X50)
€ 3.00
23
0915908034
ref: 23
NUT
€ 2.00
