CLUTCH (MODEL K1)
RM125 2006 (K6) USA (E03)

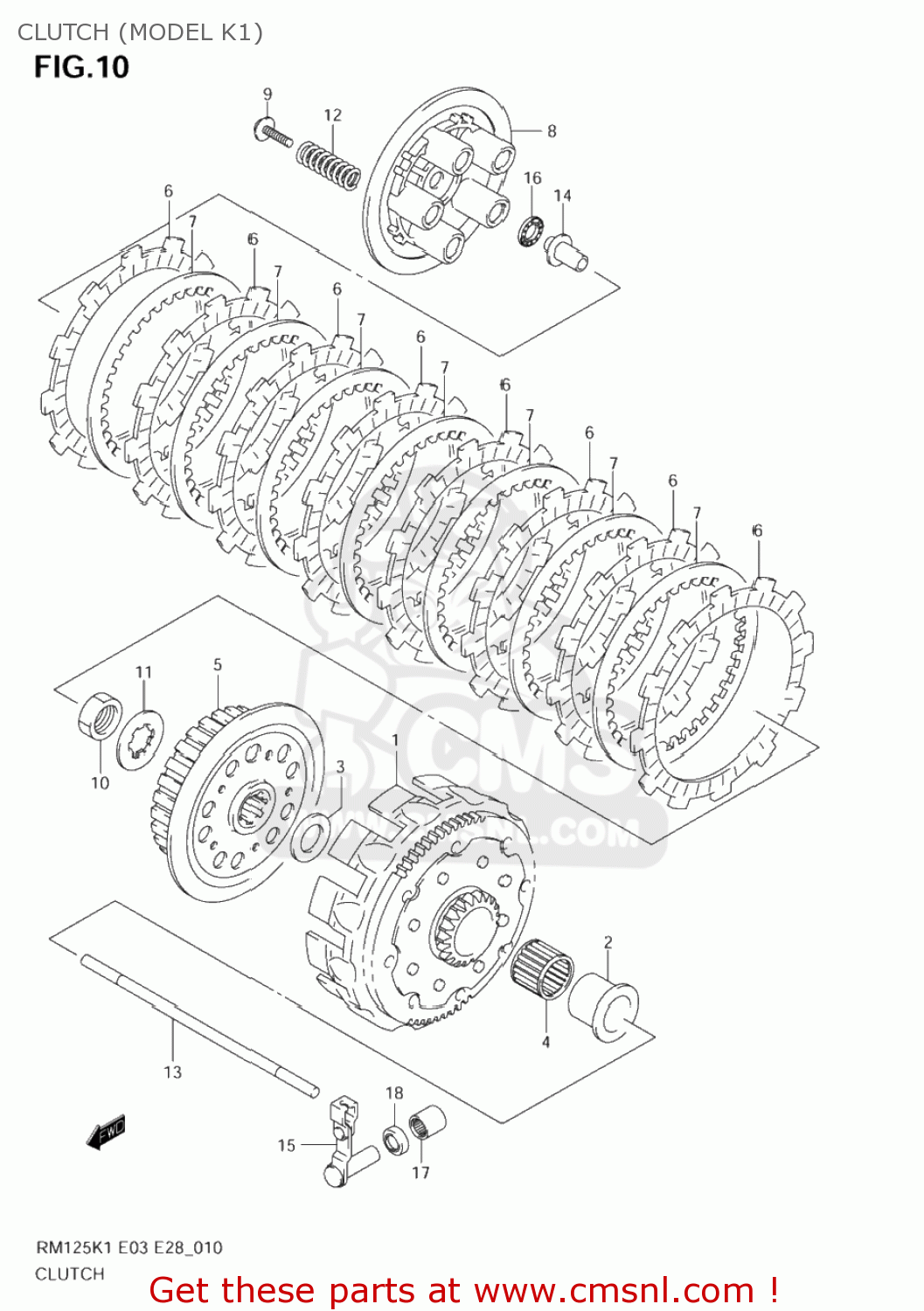

Clutch (model k1) diagram RM125 2006 (K6) USA (E03)
CLUTCH (MODEL K1) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120043D04
ref: 1
GEAR ASSY,PRI DRIVEN
€ 233.50
2
2125143D00
ref: 2
SPACER,PRIMARY DRIVEN GEAR
€ 31.00
3
0821120363
ref: 3
WASHER
€ 3.50
4
0926325046
ref: 4
BEARING(25X30X22)
€ 31.50
5
2141143D04
ref: 5
HUB,CLUTCH SLEEVE
€ 80.00
6
2144143D00
ref: 6
PLATE,CLUTCH DRIVE(T:2.8) (NAS)
€ 16.50
7
2145143D00
ref: 7
PLATE,CLUTCH DRIVEN(T:1.4) (NAS)
€ 8.00
8
2146243D01
ref: 8
DISC,CLUTCH PRESSURE
€ 38.00
9
0911605019
ref: 9
BOLT(5X25)
€ 3.00
10
0914020001
ref: 10
NUT
€ 3.50
11
0916720006
ref: 11
09167-20009
WASHER,LOCK
€ 3.00
12
0944018030
ref: 12
SPRING
€ 7.50
13
2311036F00
ref: 13
ROD,CLUTCH PUSH
€ 14.00
14
2312137F00
ref: 14
PIECE,CLUTCH PUSH
€ 13.00
15
2320036E11
ref: 15
CAMSHAFT,CLUTCH RELEASE
€ 46.00
16
0926310002
ref: 16
BEARING(10X22X2.8)
€ 8.50
17
0926310007
ref: 17
BEARING(10X14X15)
€ 21.00
18
0928510004
ref: 18
SEAL,OIL(10X17X5)
€ 3.50
