EXHAUST VALVE (MODEL K4/K5/K6)
RM125 2006 (K6) USA (E03)

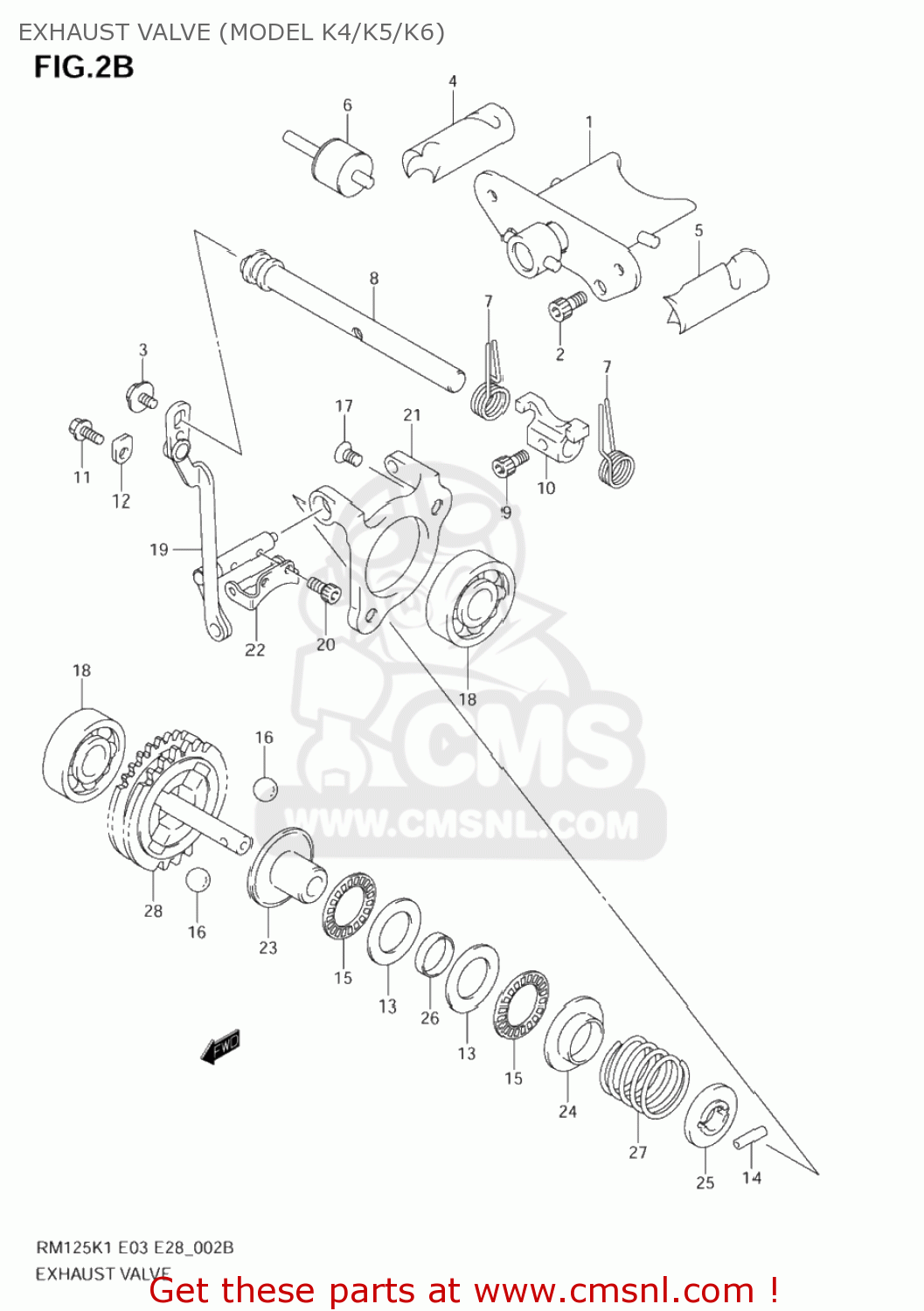

Exhaust valve (model k4/k5/k6) diagram RM125 2006 (K6) USA (E03)
EXHAUST VALVE (MODEL K4/K5/K6) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1125036F30
ref: 1-1
VALVE ASSY,EXH
€ 141.50
1-2
1125036F40
ref: 1-2
VALVE ASSY,EXHAUST MAIN
€ 465.00
2
0713005123
ref: 2
07130-0512B
BOLT
€ 2.50
3
0910305022
ref: 3
BOLT(5X10)
€ 1.50
4-1
1125536F30
ref: 4-1
VALVE,EXHAUST SIDE,R
€ 93.00
4-2
1125536F40
ref: 4-2
VALVE,EXHAUST SIDE,R
€ 112.00
5-1
1125636F30
ref: 5-1
VALVE,EXHAUST SIDE,L
€ 89.00
5-2
1125636F40
ref: 5-2
VALVE,EXHAUST SIDE,L
€ 112.00
6
1126036F30
ref: 6
SHAFT,EXHAUST SIDE VALVE
€ 14.50
7
1125736F11
ref: 7
SPRING,EXHAUST VALVE SHAFT ARM
€ 4.50
8
1125936F30
ref: 8
SHAFT,EXHAUST VALVE
€ 53.00
9
0910604003
ref: 9
BOLT(4X8)
€ 2.00
10
1126436F30
ref: 10
ARM,EXHAUST VALVE SHAFT
€ 52.00
11
0910306256
ref: 11
BOLT(6X10)
€ 2.00
12
2474121A00
ref: 12
RETAINER
€ 2.00
12
2474121A00
ref: 12
RETAINER
€ 2.00
13
0918115223
ref: 13
SHIM(15X28X1)
€ 2.50
14
0926103017
ref: 14
ROLLER(3X12.5)
€ 1.50
15
0926315003
ref: 15
BEARING(15X28X2)
€ 7.00
16
0611112004
ref: 16
BALL
€ 1.50
17
0912005003
ref: 17
SCREW(5X10)
€ 2.00
18
0926208005
ref: 18
BEARING(8X22X7)
€ 12.50
19
1268936F30
ref: 19
ACTUATOR,EXHAUST VALVE
€ 40.50
20
0910604003
ref: 20
BOLT(4X8)
€ 2.00
21
1268103B00
ref: 21
BASE,ACTUATOR
€ 374.50
22
1268236F21
ref: 22
ARM,ACTUATOR
€ 6.00
23
1267236F10
ref: 23
GOVERNOR,DRIVEN
€ 17.50
24
1267436F10
ref: 24
STOPPER,GOVERNOR SPRING NO.1
€ 13.00
25
1267536F11
ref: 25
STOPPER,GOVERNOR SPRING NO.2
€ 9.50
26
1267636F10
ref: 26
SPACER,GOVERNOR
€ 8.50
27-1
1267736F30
ref: 27-1
SPRING,GOVERNOR
€ 3.00
27-2
1267736F40
ref: 27-2
SPRING,GOVERNOR
€ 5.00
28-1
1267036820
ref: 28-1
GOVERNOR SET,EXHAUST
€ 44.00
28-2
1267036830
ref: 28-2
GOVERNOR SET,EXHAUST
€ 58.50
