CLUTCH (MODEL K2/K3/K4/K5/K6)
RM125 2006 (K6) USA (E03)

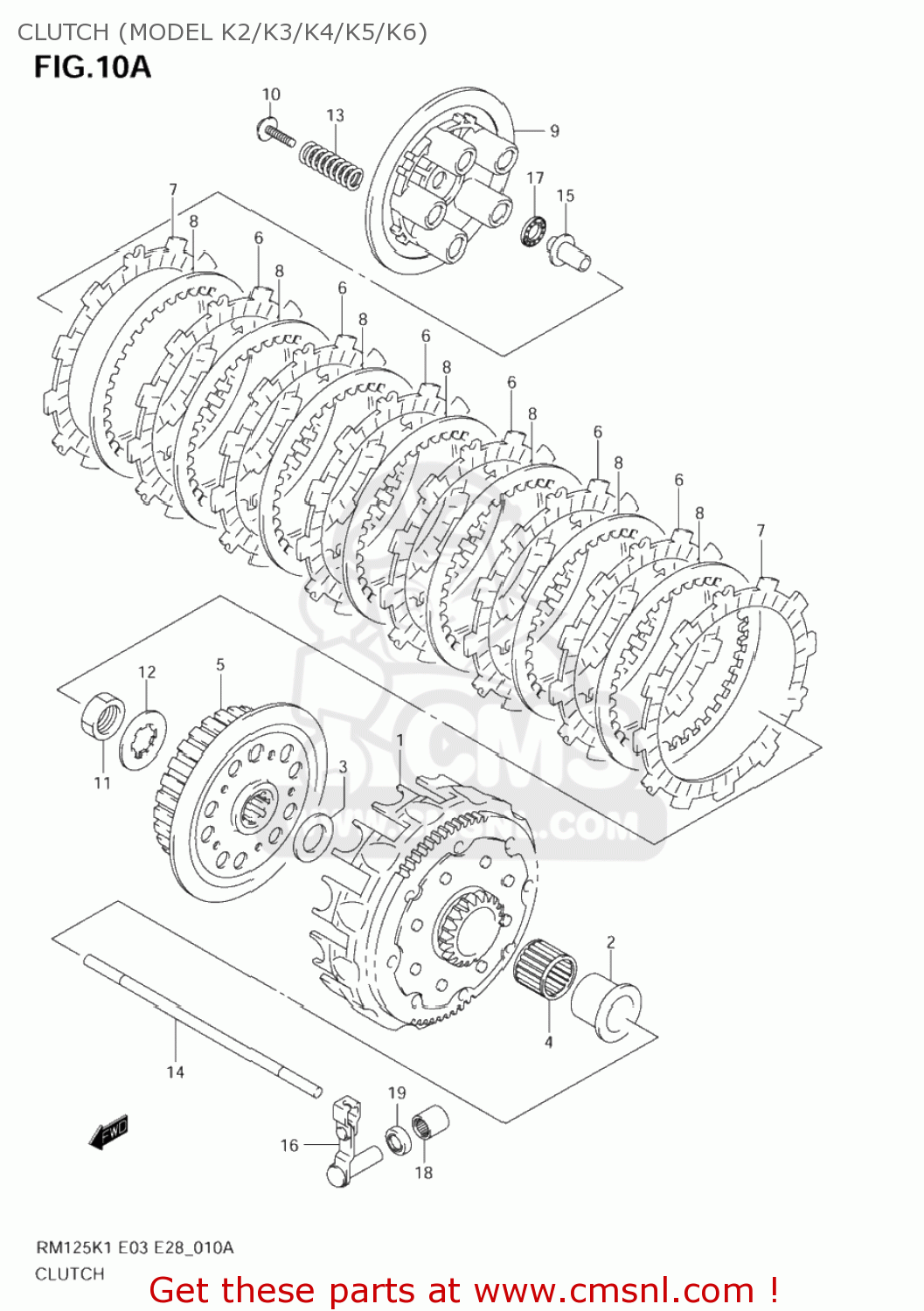

Clutch (model k2/k3/k4/k5/k6) diagram RM125 2006 (K6) USA (E03)
CLUTCH (MODEL K2/K3/K4/K5/K6) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120036F00
ref: 1
GEAR ASSY,PRI DRIVEN
€ 313.50
2
2125143D00
ref: 2
SPACER,PRIMARY DRIVEN GEAR
€ 31.00
3
0821120363
ref: 3
WASHER
€ 3.50
4
0926325046
ref: 4
BEARING(25X30X22)
€ 31.50
5
2141143D04
ref: 5
HUB,CLUTCH SLEEVE
€ 80.00
6
2144136F00
ref: 6
PLATE,CLUTCH DRIVE (NAS)
€ 14.50
7
2144136F10
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 11.00
8
2145143D00
ref: 8
PLATE,CLUTCH DRIVEN(T:1.4) (NAS)
€ 8.00
9
2146243D01
ref: 9
DISC,CLUTCH PRESSURE
€ 38.00
10
0911605019
ref: 10
BOLT(5X25)
€ 3.00
11
0914020001
ref: 11
NUT
€ 3.50
12
0916720006
ref: 12
09167-20009
WASHER,LOCK
€ 3.00
13
0944018030
ref: 13
SPRING
€ 7.50
14
2311036F00
ref: 14
ROD,CLUTCH PUSH
€ 14.00
15
2312137F00
ref: 15
PIECE,CLUTCH PUSH
€ 13.00
16
2320036E11
ref: 16
CAMSHAFT,CLUTCH RELEASE
€ 46.00
17
0926310002
ref: 17
BEARING(10X22X2.8)
€ 8.50
18
0926310007
ref: 18
BEARING(10X14X15)
€ 21.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
