TRANSMISSION (MODEL K1/K2/K3)
RM125 2006 (K6) USA (E03)

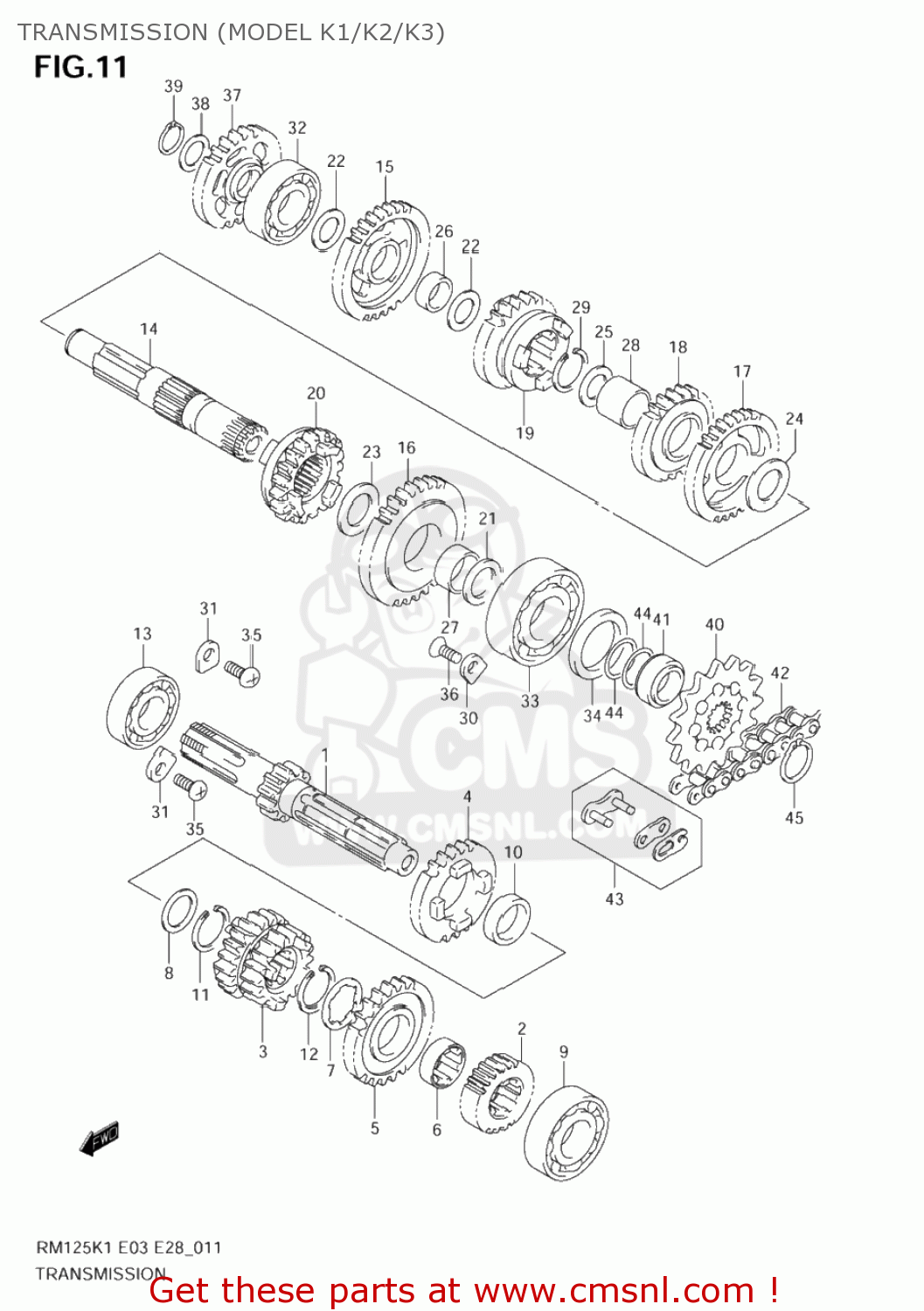

Transmission (model k1/k2/k3) diagram RM125 2006 (K6) USA (E03)
TRANSMISSION (MODEL K1/K2/K3) RM125 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412036F00
ref: 1-1
24120-36F02
SHAFT,COUNTER,
€ 166.50
1-2
2412036F01
ref: 1-2
24120-36F02
SHAFT,COUNTER
€ 166.50
2
2422136F01
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 60.50
3
2423143D21
ref: 3
GEAR,3RD & 4TH DRIVE(NT:18/20)
€ 114.50
4
2425143D20
ref: 4
GEAR,5TH DRIVE(NT:19)
€ 74.50
5
2426143D01
ref: 5
GEAR,6TH DRIVE(NT:20)
€ 74.00
6
2426243D00
ref: 6
BUSH,6TH DRIVE GEAR
€ 23.50
7
0916722014
ref: 7
WASHER,LOCK
€ 4.00
8
0918122139
ref: 8
SHIM(22X28X1)
€ 4.00
9
0926217049
ref: 9
BEARING(17X35X10)
€ 24.00
10
0930022008
ref: 10
BUSH(22X26X9)
€ 10.50
11
0938022006
ref: 11
CIRCLIP
€ 3.00
12
0938022006
ref: 12
CIRCLIP
€ 3.00
13
0926220122
ref: 13
BEARING(20X47X12)
€ 27.00
14
2413136E10
ref: 14
SHAFT,DRIVE
€ 114.50
15
2431136F00
ref: 15
GEAR,1ST DRIVEN(NT:29)
€ 90.50
16-1
2432136F00
ref: 16-1
24321-36F01
GEAR,2ND DRIVE
€ 90.50
16-2
2432136F01
ref: 16-2
GEAR,2ND DRIVEN(NT:27)
€ 90.50
17-1
2433136E00
ref: 17-1
24331-36E01
GEAR,THIRD DRIVEN (NT:26)
€ 89.00
17-2
2433136E01
ref: 17-2
GEAR,3RD DRIVEN(NT:26)
€ 89.00
18
2434136E00
ref: 18
GEAR,4TH DRIVEN(NT:24)
€ 86.50
19
2435136E01
ref: 19
GEAR,5TH DRIVEN(NT:20)
€ 76.00
20-1
2436136E01
ref: 20-1
24361-36E03
GEAR,SIXTH DRIVEN (NT:19)
€ 81.00
20-2
2436136E02
ref: 20-2
24361-36E03
GEAR,6TH DRIVE
€ 81.00
21
0916020074
ref: 21
WASHER(20X30X3)
€ 4.50
22
0918117167
ref: 22
SHIM(17X26X1)
€ 3.00
23
0918122167
ref: 23
SHIM(22X30X1)
€ 3.00
24
0918122167
ref: 24
SHIM(22X30X1)
€ 3.00
25
0918122167
ref: 25
SHIM(22X30X1)
€ 3.00
26
0930017012
ref: 26
BUSH(17X20X9)
€ 22.50
27
0930022008
ref: 27
BUSH(22X26X9)
€ 10.50
28
0930022018
ref: 28
BUSH(22X25X18)
€ 21.50
29
0938022006
ref: 29
CIRCLIP
€ 3.00
30
2474120A00
ref: 30
RETAINER,COUNTER BEARING,R
€ 2.00
31
2474121A00
ref: 31
RETAINER
€ 2.00
32
0926217040
ref: 32
BEARING(17X40X9.5)
€ 17.50
33
0926220110
ref: 33
BEARING(20X52X12.5)
€ 33.50
34
0928328020
ref: 34
SEAL,OIL(28X38X6)
€ 11.50
35
0211206103
ref: 35
02112-0610B
SCREW
€ 1.50
36
0212206123
ref: 36
02122-0612A
SCREW
€ 3.00
37
2626043D00
ref: 37
26260-43D01
GEAR,KICK STARTER IDLE
€ 67.50
38
0918117130
ref: 38
SHIM(17X24X0.5)
€ 3.00
39
0833131176
ref: 39
08331-3117A
CIRCLIP,17MM
€ 2.00
40-1
2751114111
ref: 40-1
SPROCKET,ENGINE
€ 19.00
40-2
2751114121
ref: 40-2
SPROCKET,ENGINE
€ 27.50
41
2753143D00
ref: 41
SPACER,ENGINE SPROCKET
€ 20.00
42-1
2760043D00112
ref: 42-1
27600-43D02-114
CHAIN ASSEMBLY DID520DM.11
€ 72.50
42-2
2760043D01112
ref: 42-2
27600-43D02-114
CHAIN(DID520DMA2,112L)
€ 72.50
43
2762043D00
ref: 43
JOINT SET,CHAIN
€ 5.00
44
0928020006
ref: 44
O RING(D:1.9,ID:19.8)
€ 2.50
45
0938020007
ref: 45
CIRCLIP
€ 3.00
