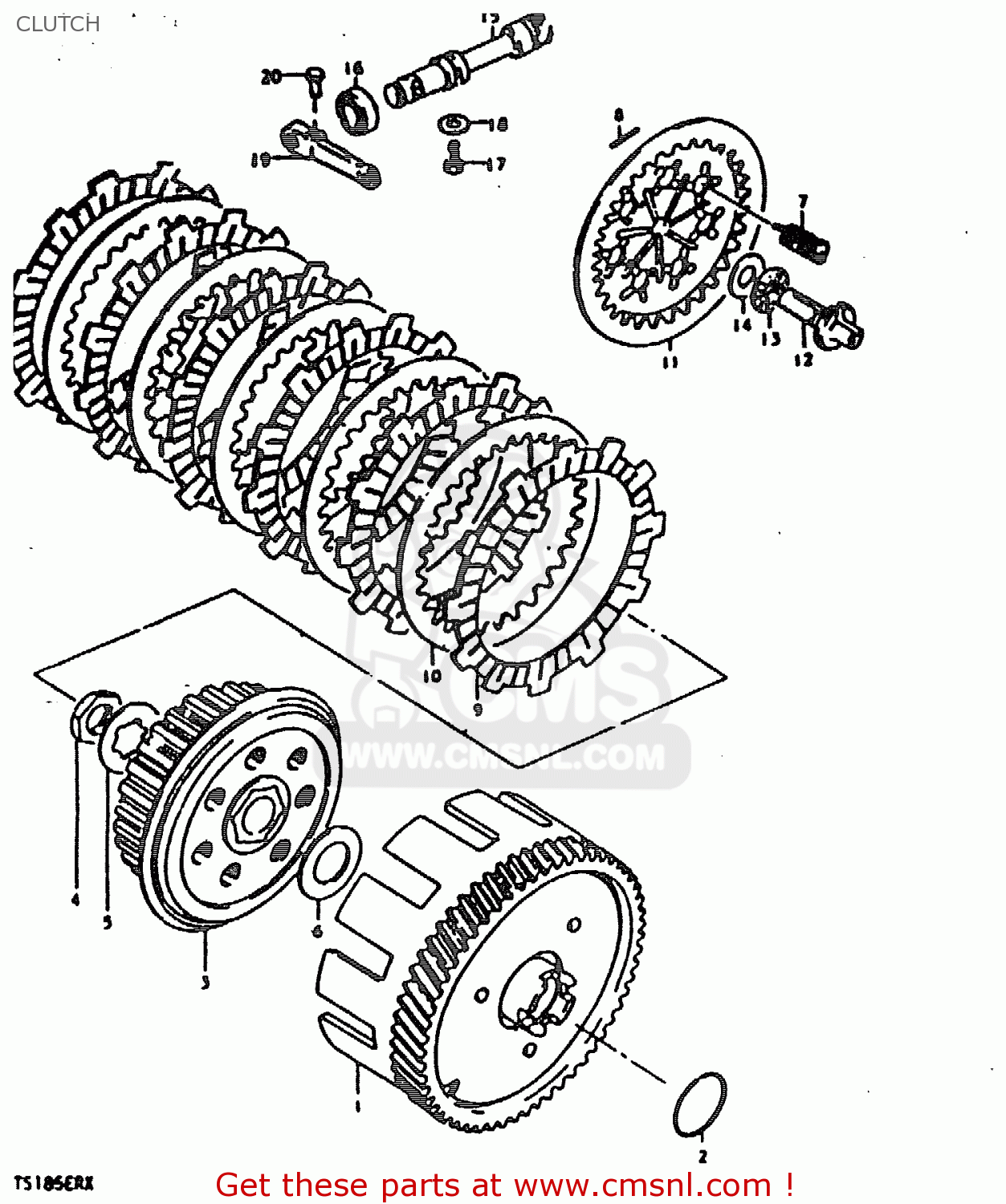

CLUTCH

ref

part #

description

quantity

1

2120029002
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 233.50

2

0938030001
ref: 2

SPRING

€ 2.00

3

2141028700
ref: 3

HUB,CLUTCH SLEEVE

€ 54.00

4

0914016001
ref: 4

NUT

€ 4.50

5

0916717002
ref: 5

WASHER,LOCK

€ 2.00

6

0821117282
ref: 6

WASHER

€ 3.00

7

0944312018
ref: 7

SPRING

€ 3.00

8

0926102001
ref: 8

PIN(2.5X19.8)

€ 1.50

9

2144128300
ref: 9

PLATE,CLUTCH DRIVE

€ 8.50

10

2145128000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

11

2146028000
ref: 11

PLATE,CLUTCH PRESSURE

€ 21.50

12

2316528000
ref: 12

RACK,CLUTCH RELEASE

€ 17.00

13

0926310002
ref: 13

BEARING(10X22X2.8)

€ 8.50

14

0916010021
ref: 14

WASHER(10.1X21.4X0.8)

€ 3.00

15

2326128300
ref: 15

PINION,CLUTCH RELEASE

€ 28.50

16

0928512002
ref: 16

OIL SEAL

€ 7.00

17

0913506009
ref: 17

BOLT(6X12)

€ 2.00

18

0832221068
ref: 18

WASHER

€ 2.00

19

2327129300
ref: 19

ARM,CLUTCH RELEASE

€ 23.50

20

0110706208
ref: 20

BOLT

€ 2.00

all assemblies
