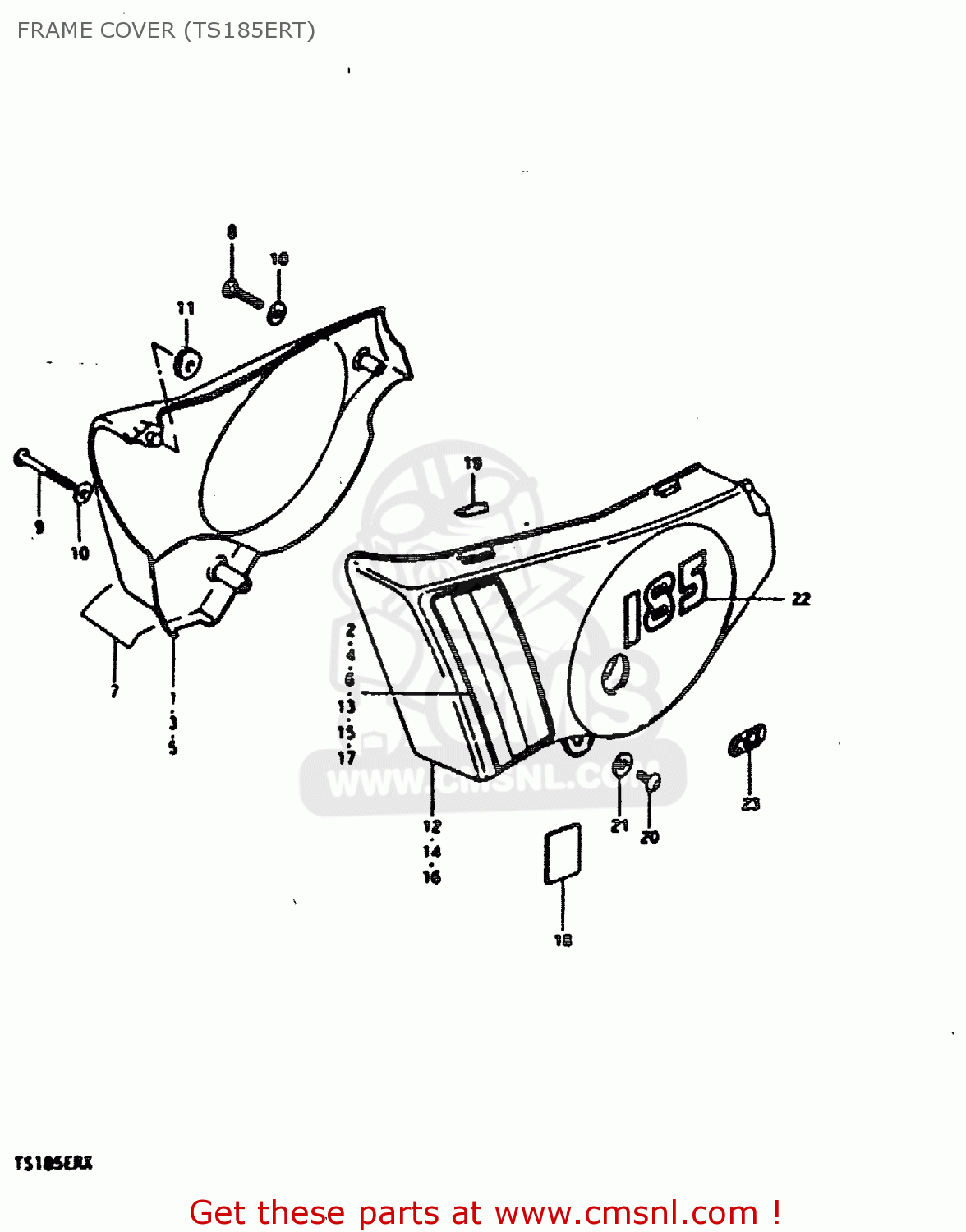

FRAME COVER (TS185ERT)

ref

part #

description

quantity

1

471112990107P
ref: 1

COVER, FRAME RH (RED)

€ 52.00

2

681362990069F
ref: 2

TAPE, RH

€ 0.00

3

471112990108Y
ref: 3

COVER,FRAME,RIGHT

€ 52.00

4

681362990069G
ref: 4

TAPE, RH

€ 15.00

5

471112990108T
ref: 5

COVER, FRAME RH (GREEN)

€ 72.50

6

681362990069H
ref: 6

TAPE, RH

€ 0.00

7

6813129910
ref: 7

EMBLEM,FRAME COVER,RIGHT

€ 0.00

8

0214206308
ref: 8

SCREW

€ 2.00

9

0214206458
ref: 9

SCREW

€ 2.00

10

0916006007
ref: 10

WASHER

€ 2.00

11

0932008018
ref: 11

CUSHION

€ 4.00

12

472112990007P
ref: 12

COVER, FRAME LH

€ 36.00

13

681462990069F
ref: 13

TAPE, LH

€ 10.00

14

472112990008Y
ref: 14

COVER,FRAME,LEFT

€ 36.00

15

681462990069G
ref: 15

TAPE, LH

€ 0.00

16

472112990008T
ref: 16

COVER, FRAME LH

€ 68.50

17

681462990069H
ref: 17

TAPE, LH

€ 0.00

18

3365137000
ref: 18

PROTECTOR(170X95X3.0)

€ 5.00

19

4711745000
ref: 19

CUSHION,FRAME COVER

€ 1.50

20

0214206127
ref: 20

SCREW 6X12

€ 1.50

21

0916006007
ref: 21

WASHER

€ 2.00

22

6813129900064
ref: 22

EMBLEM "185"

€ 7.00

23

6817126000
ref: 23

EMBLEM,CCIS

€ 4.00

all assemblies
