OIL TANK

TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

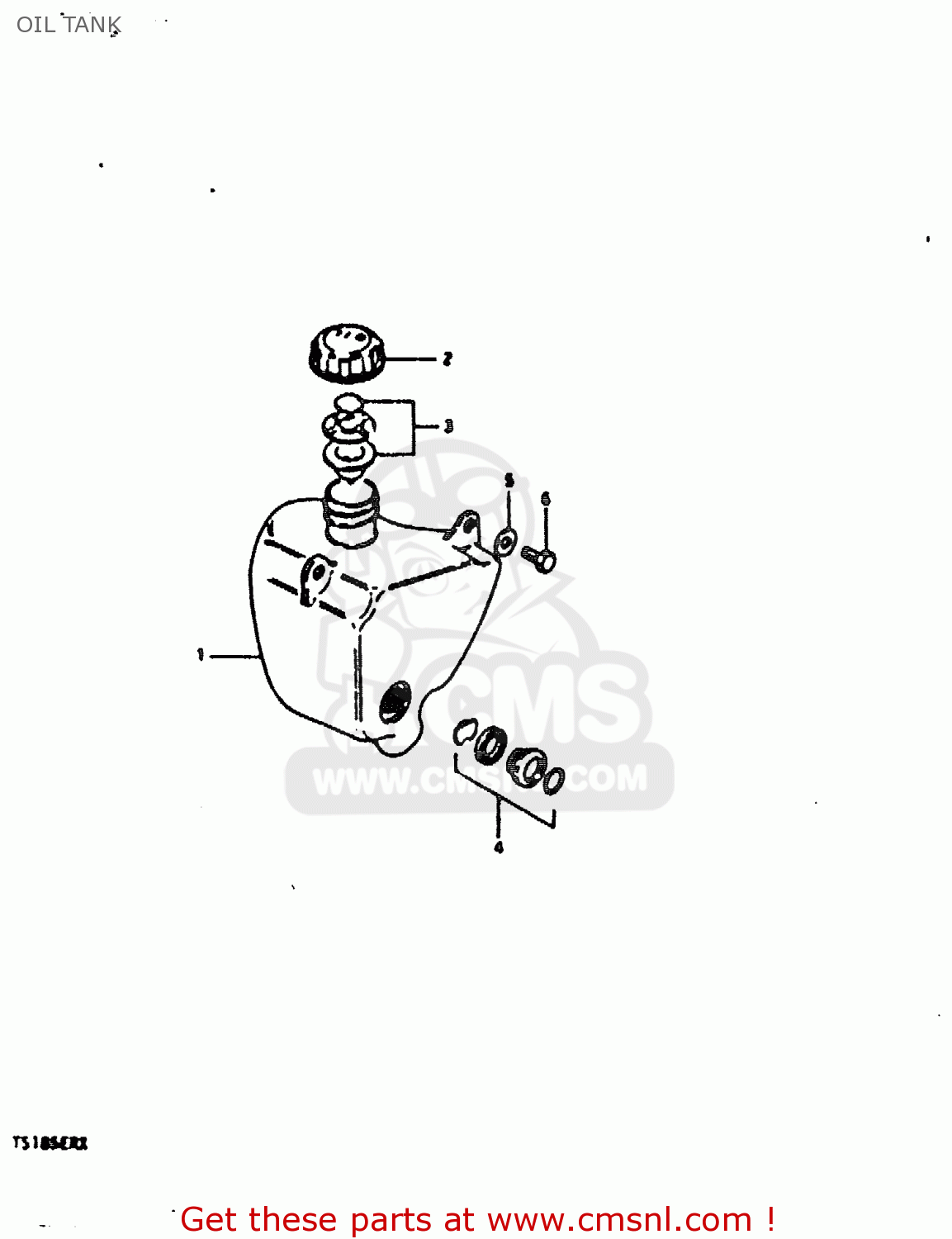

Oil tank diagram TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

OIL TANK TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

OIL TANK TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

4461129301
ref: 1

TANK,OIL

€ 27.00

2

4465105000
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

4460046810
ref: 4

LENS SET,OIL LEVEL

€ 6.50

5

0916006007
ref: 5

WASHER

€ 2.00

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00
