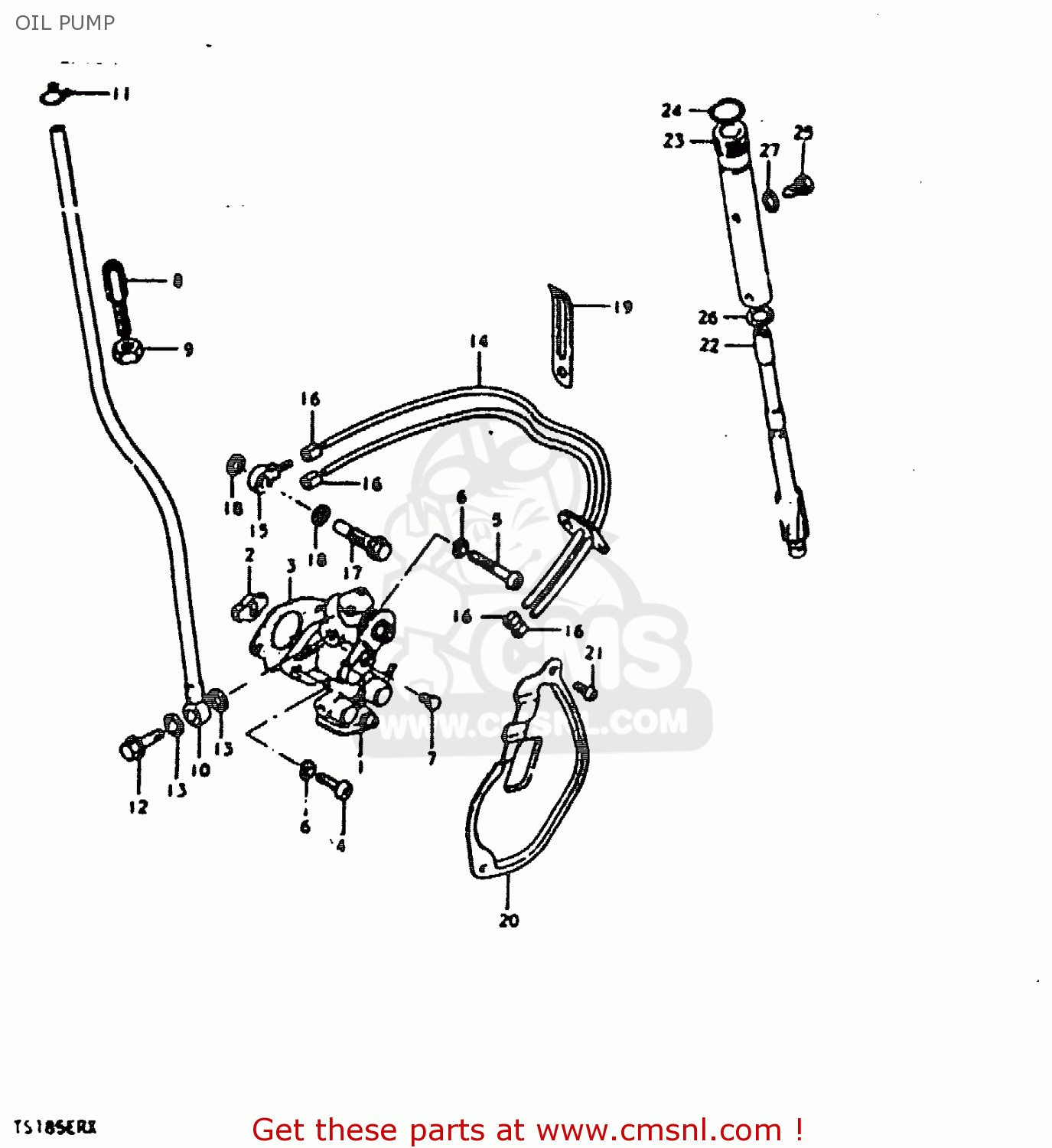

OIL PUMP

ref

part #

description

quantity

1

1610029910
ref: 1

PUMP ASSEMBLY,OIL

€ 197.00

2

1639105031
ref: 2
FROM 16391-05030

PIECE,OIL PUMP DRIVE

€ 2.50

3

1673103101
ref: 3

GASKET,OIL PUMP (NAS)

€ 2.50

4

0211205168
ref: 4

SCREW

€ 2.50

5

0211205308
ref: 5

SCREW

€ 1.50

6

0832121058
ref: 6

LOCK WASHER

€ 2.00

7

1629203111
ref: 7

TERMINAL,CABLE

€ 3.50

8

0911908014
ref: 8

BOLT

€ 3.50

9

0831012088
ref: 9

NUT

€ 2.00

10

1681029300
ref: 10

HOSE,OIL NO.1

€ 17.50

11

0940108401
ref: 11

CLIP

€ 1.50

12

0936006003
ref: 12

UNION BOLT

€ 5.00

13

0916806004
ref: 13

GASKET(6.2X11X1).2 (NAS)

€ 1.50

14

1682029900
ref: 14

HOSE,OIL NO.2

€ 5.50

15

0936302001
ref: 15

UNION

€ 8.00

16

0940104401
ref: 16

CLIP

€ 2.50

17

0936006009
ref: 17

UNION

€ 7.00

18

0916806004
ref: 18

GASKET(6.2X11X1).2 (NAS)

€ 1.50

19

0940406401
ref: 19

CLAMP L:35

€ 2.50

20

1138027300
ref: 20

CAP,OIL PUMP INSPECTION

€ 5.50

21

0211206108
ref: 21

SCREW

€ 1.50

22

2643129000
ref: 22

GEAR,TACHOMETER DRIVEN

€ 34.50

23

2644128001
ref: 23

SLEEVE,TACHOMETER DRIVE

€ 17.00

24

0928010001
ref: 24

O RING(D:1.3,ID:9.6)

€ 2.00

25

0913506009
ref: 25

BOLT(6X12)

€ 2.00

26

0916008003
ref: 26

WASHER(8X13.7X1)

€ 2.00

27

0832221068
ref: 27

WASHER

€ 2.00

all assemblies
