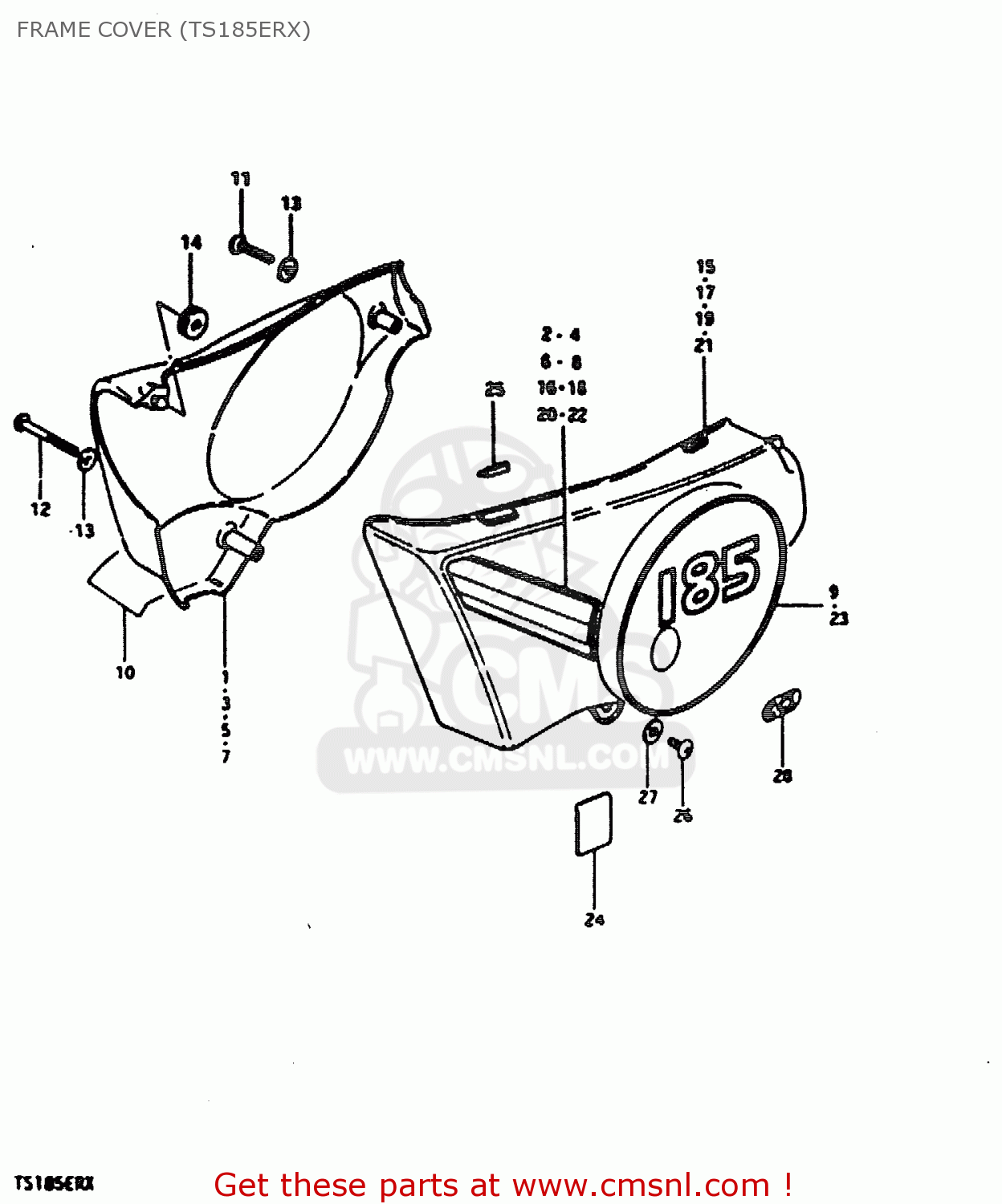

FRAME COVER (TS185ERX)

ref

part #

description

quantity

1

471112990108Y
ref: 1

COVER,FRAME,RIGHT

€ 52.00

2

681362991074U
ref: 2

TAPE, RH

€ 0.00

3

4711129901163
ref: 3

COVER, FRAME RH (YELLOW)

€ 52.00

4

681362991067H
ref: 4

TAPE, RH

€ 0.00

5

471112990107P
ref: 5

COVER, FRAME RH (RED)

€ 52.00

6

681362991074T
ref: 6

TAPE, RH

€ 0.00

7

4711129901189
ref: 7

COVER, FRAME RH (WHITE)

€ 72.50

8

681362991067H
ref: 8

TAPE, RH

€ 0.00

9

6813129410064
ref: 9

EMBLEM, "185" RH (WHITE)

€ 0.00

10

6813129910
ref: 10

EMBLEM,FRAME COVER,RIGHT

€ 0.00

11

0214206308
ref: 11

SCREW

€ 2.00

12

0214206458
ref: 12

SCREW

€ 2.00

13

0916006007
ref: 13

WASHER

€ 2.00

14

0932008018
ref: 14

CUSHION

€ 4.00

15

472112990008Y
ref: 15

COVER,FRAME,LEFT

€ 36.00

16

681462991074U
ref: 16

TAPE, LH

€ 0.00

17

4721129900163
ref: 17

COVER, FRAME LH (YELLOW)

€ 43.00

18

681462991067H
ref: 18

TAPE, LH

€ 0.00

19

472112990007P
ref: 19

COVER, FRAME LH

€ 36.00

20

681462991074T
ref: 20

TAPE, LH

€ 0.00

21

4721129900189
ref: 21

COVER, FRAME LH (WHITE)

€ 68.50

22

681462991067H
ref: 22

TAPE, LH

€ 0.00

23

6814129410064
ref: 23

EMBLEM, "185" LH (WHITE)

€ 0.00

24

3365137000
ref: 24

PROTECTOR(170X95X3.0)

€ 5.00

25

4711745000
ref: 25

CUSHION,FRAME COVER

€ 1.50

26

0214206128
ref: 26

SCREW

€ 1.50

27

0916006007
ref: 27

WASHER

€ 2.00

28

6817126000
ref: 28

EMBLEM,CCIS

€ 4.00

all assemblies
