REAR FENDER - SHOCK ABSORBER

TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

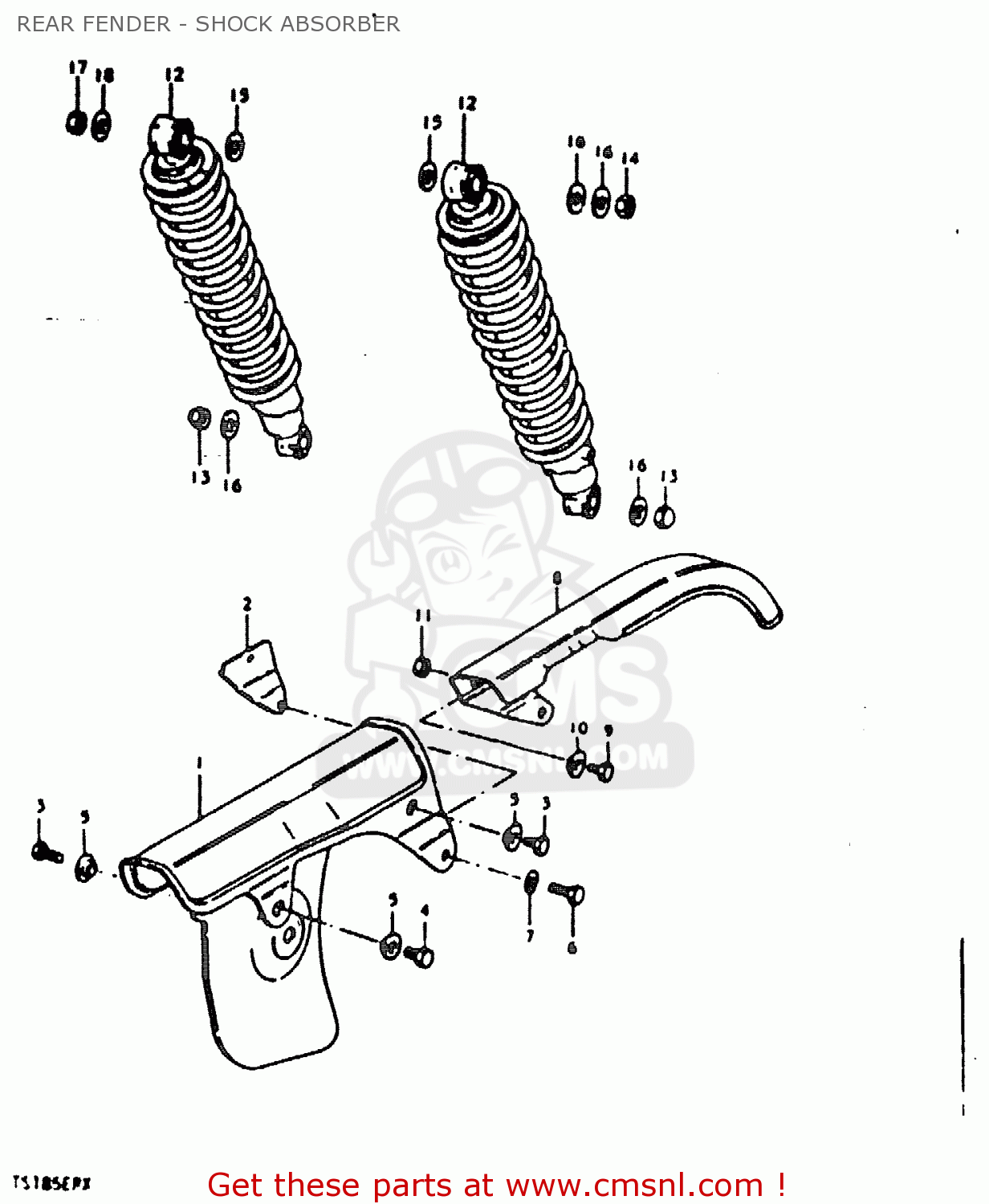

Rear fender - shock absorber diagram TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

prices are in EUR

ref

part #

description

quantity

6131129900
ref: 1

CASE,CHAIN

€ 26.50

6138029900
ref: 2

REINFORCEMENT,CHAIN

€ 7.00

0910006011
ref: 3

BOLT(6X8)

€ 2.50

0110706108
ref: 4

BOLT

€ 2.00

0916906010
ref: 5

WASHER

€ 3.00

0110706158
ref: 6

BOLT

€ 0.00

0832221058
ref: 7

WASHER

€ 2.50

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6210029901
ref: 12

ABSORBER ASSY,RR SHOCK

€ 155.00

0831311108
ref: 13

NUT, LOWER LH

€ 2.50

0831011108
ref: 14

NUT

€ 2.50

0832211128
ref: 15

WASHER

€ 2.00

0916010001
ref: 16

WASHER

€ 2.00

0831012128
ref: 17

NUT

€ 3.00

0916012012
ref: 18

WASHER (12.5X24X3.2)

€ 2.50
