MAGNETO

TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

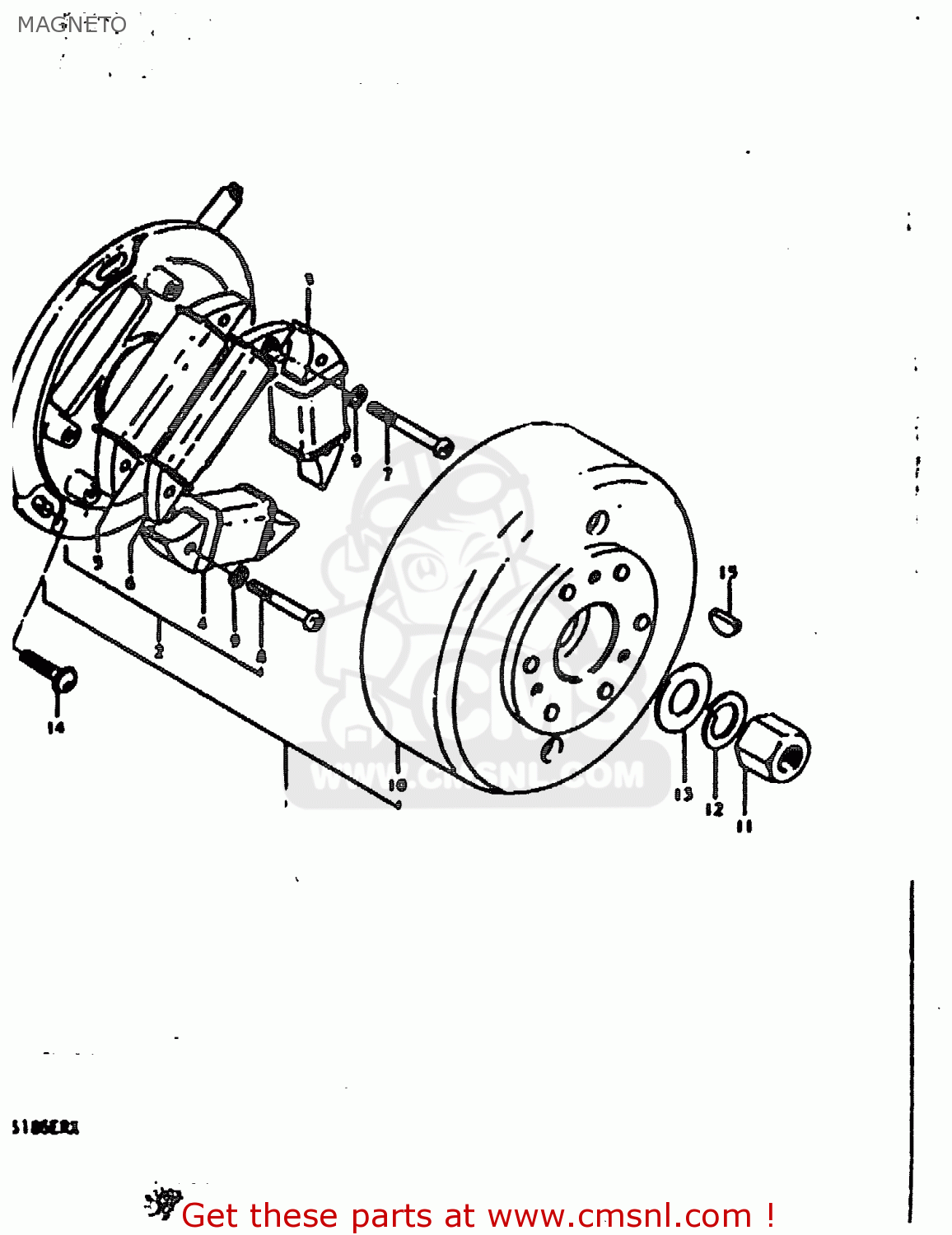

Magneto diagram TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

MAGNETO TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

MAGNETO TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

3210030626
ref: 1

MAGNETO ASSEMBLY

€ 382.50

2

3210130626
ref: 2

STATOR ASSEMBLY

€ 289.50

3

3212029612
ref: 3

COIL,CHARGE

€ 67.00

4

3213030620
ref: 4

COIL,LIGHTING

€ 72.50

5

3214032021
ref: 5

COIL,PRIMARY

€ 224.50

6

3215032020
ref: 6

COIL,PULSER

€ 210.50

7

0211205358
ref: 7

SCREW

€ 1.50

8

0211205208
ref: 8

SCREW 5X20

€ 3.00

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

3210230626
ref: 10

ROTOR,FLYWHEEL

€ 339.50

11

0914014011
ref: 11

NUT

€ 3.50

12

0832121148
ref: 12

LOCK WASHER

€ 2.00

13

0916014015
ref: 13

WASHER(14X27X3)

€ 4.00

14

0913905011
ref: 14

SCREW(5X14)

€ 3.00

15

0834131049
ref: 15

KEY 4MM

€ 3.50
