HEADLAMP HOUSING

TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

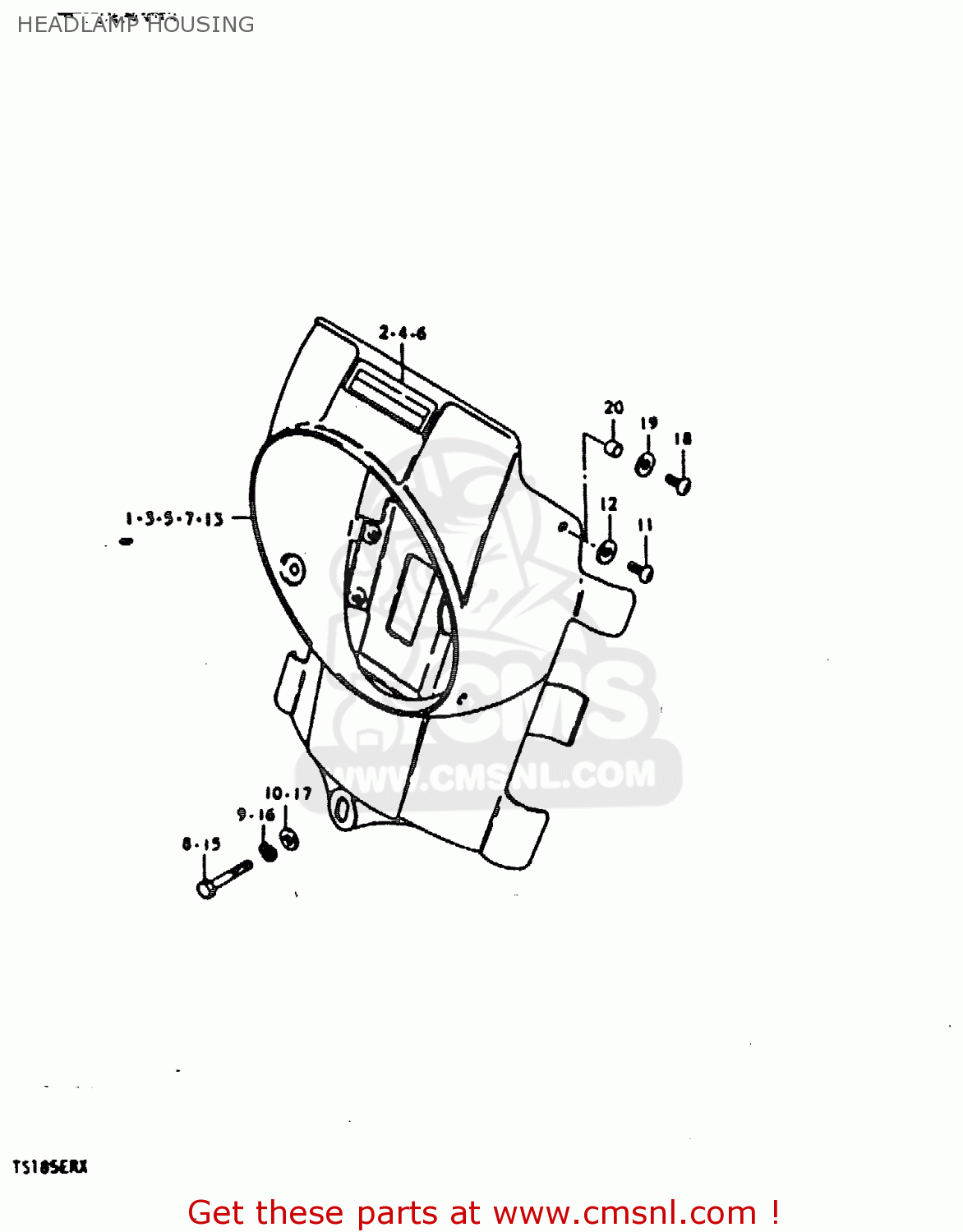

Headlamp housing diagram TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

HEADLAMP HOUSING TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)
HEADLAMP HOUSING TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)
HEADLAMP HOUSING TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
518104850207P
ref: 1
MODEL T TO 51810-485
HOUSING, HEADLAMP (RED)
€ 62.00
2
682754850069F
ref: 2
MODEL T
TAPE, HOUSING
€ 5.00
3
518104850208Y
ref: 3
MODEL T TO 51810-485
HOUSING,HEADLAMP
€ 71.50
4
682754850069G
ref: 4
MODEL T
TAPE, HOUSING
€ 5.00
5
518104850208T
ref: 5
MODEL T TO 51810-485
HOUSING, HEADLAMP (GREEN)
€ 71.50
6
682754850069H
ref: 6
MODEL T
TAPE, HOUSING
€ 0.00
7-1
NOTUSED
ref: 7-1
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-2
NOTUSED
ref: 7-2
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-3
NOTUSED
ref: 7-3
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-4
NOTUSED
ref: 7-4
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-5
NOTUSED
ref: 7-5
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-6
NOTUSED
ref: 7-6
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-7
NOTUSED
ref: 7-7
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-8
NOTUSED
ref: 7-8
MODEL T
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
0110706128
ref: 8
BOLT
0110706128
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0916006020
ref: 10
WASHER
0916006020
€ 2.00
11
0211205128
ref: 11
SCREW
€ 2.50
12
0916005017
ref: 12
WASHER (5.5X16X1.2)
0916005017
€ 2.50
13-1
518104850407P
ref: 13-1
MODEL X
HOUSING, HEADLAMP (RED)
518104850407P
€ 62.00
13-2
518104850408Y
ref: 13-2
MODEL X
HOUSING,HEADLAMP
518104850408Y
€ 71.50
13-3
518104850408T
ref: 13-3
MODEL X
HOUSING, HEADLAMP (WHITE)
€ 71.50
13-4
5181048504163
ref: 13-4
MODEL X
HOUSING, HEADLAMP (YELLOW)
€ 71.50
14
0110706128
ref: 14
MODEL X
BOLT
0110706128
€ 2.00
15
0832121068
ref: 15
MODEL X
LOCK WASHER
0832121068
€ 2.50
16
0916006020
ref: 16
MODEL X
WASHER
0916006020
€ 2.00
17
0211205128
ref: 17
MODEL X
SCREW
€ 2.50
18
0916005006
ref: 18
MODEL X
WASHER (5.5X18X1.6)
0916005006
€ 4.00
19
0918005015
ref: 19
MODEL X
SPACER (5.5X8X4)
0918005015
€ 3.00
