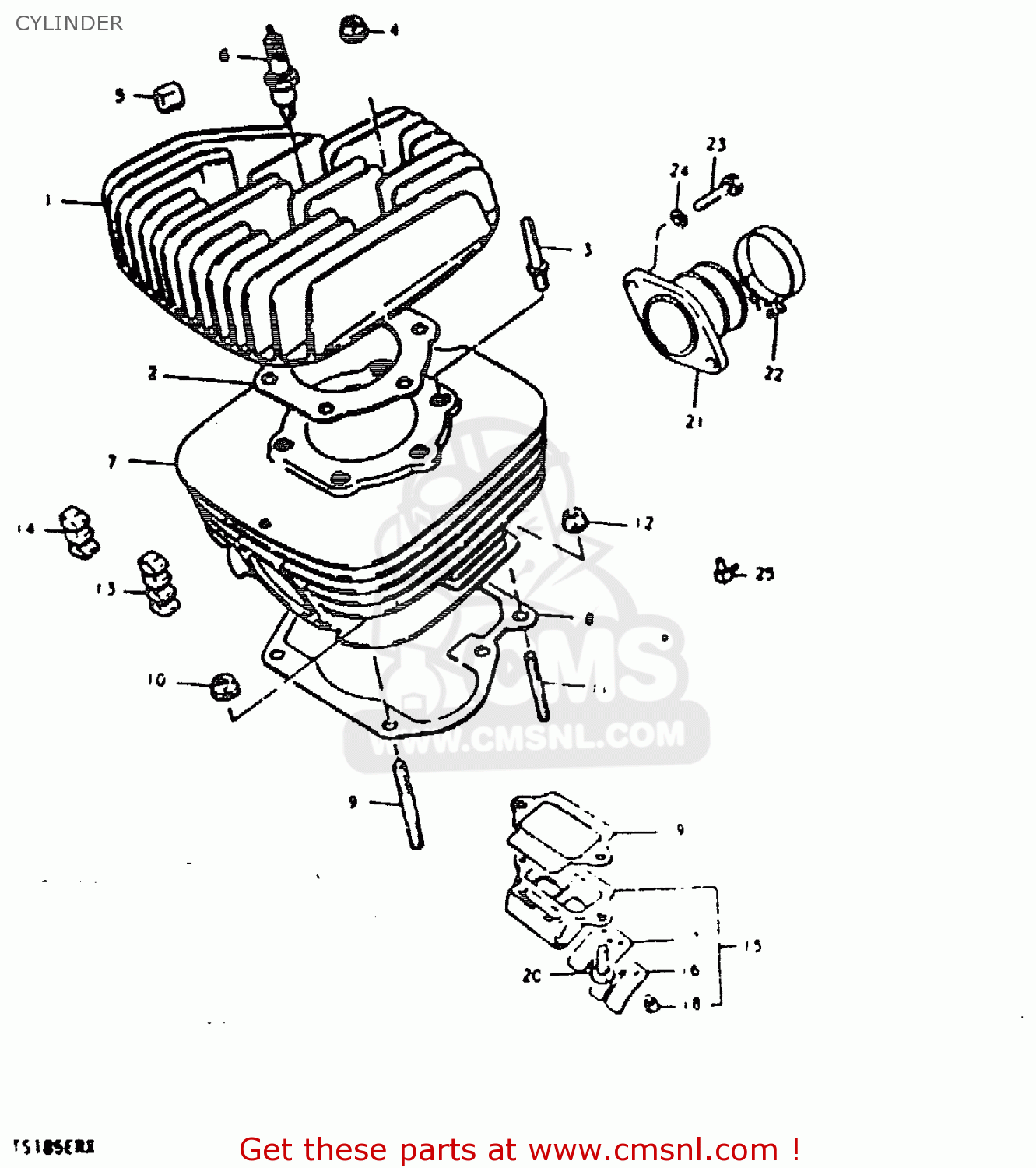

CYLINDER

ref

part #

description

quantity

1

1111129303
ref: 1

HEAD,CYLINDER

€ 121.50

2

1114129900
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 15.50

3

0910808018
ref: 3

BOLT,STUD

€ 4.00

4

0831616088
ref: 4

NUT

€ 2.50

5

1125129300
ref: 5

PAD,CYLINDER

€ 6.00

6-1

0948200226
ref: 6-1

SPARK PLUG

€ 4.00

6-2

0948200140
ref: 6-2

SPARK PLUG W22EP

€ 3.00

7

1121029900
ref: 7

CYLINDER

€ 399.00

8

1124129300
ref: 8

GASKET,CYLINDER (MCA)

€ 5.50

9

0142110258
ref: 9

STUD 10X25

€ 3.00

10

0831616108
ref: 10

NUT

€ 2.00

11

0142108258
ref: 11

STUD 8X25

€ 2.50

12

0831616088
ref: 12

NUT

€ 2.50

13

1125129310
ref: 13

PAD,CYLINDER

€ 11.50

14

1125129320
ref: 14

PAD,CYLINDER

€ 11.50

15

1315041113
ref: 15

VALVE ASSY,REED

€ 118.50

16

1315241110
ref: 16

STOPPER,REED VALVE

€ 7.00

17

1315341110
ref: 17

VALVE,REED

€ 8.00

18

1315419011
ref: 18

SCREW,REED VALVE

€ 1.50

19

1315641100
ref: 19

GASKET,REED VALVE (MCA)

€ 4.50

20

0211206208
ref: 20

SCREW

€ 2.00

21

1311030900
ref: 21

PIPE,INTAKE

€ 30.50

22

0940248306
ref: 22

CLAMP

€ 4.50

23

0110706168
ref: 23

BOLT, UPPER

€ 3.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

1691031000
ref: 25
INNER PART OF REF.NO

UNION,OIL HOSE

€ 8.00

all assemblies
