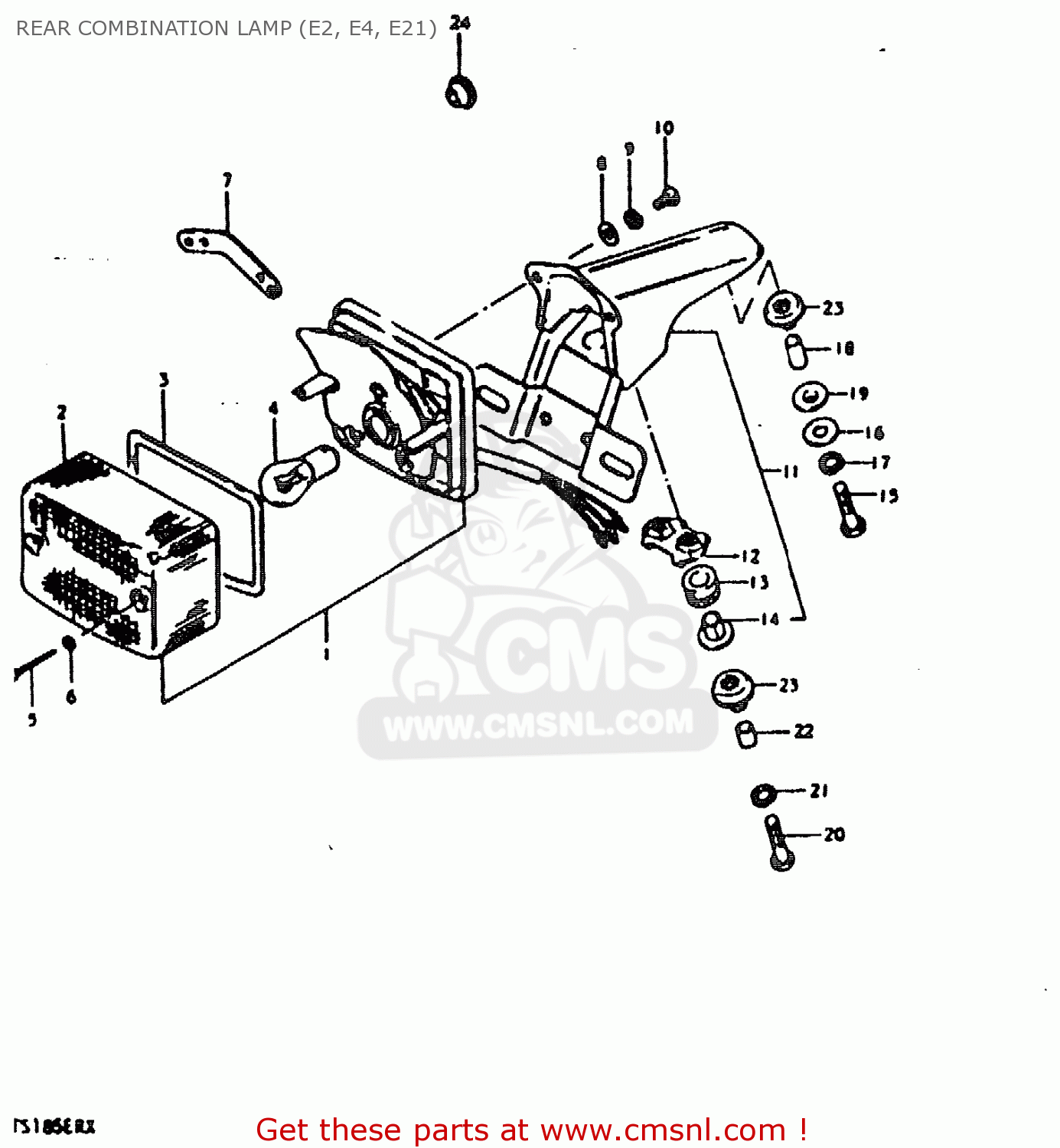

REAR COMBINATION LAMP (E2, E4, E21)

ref

part #

description

quantity

1-1

3572048520
ref: 1-1
MODEL T

LAMP UNIT, TAIL

€ 115.00

1-2

3572048521
ref: 1-2
MODEL X

LAMP UNIT, TAIL

€ 115.00

2-1

3571248520
ref: 2-1
MODEL T

LENS

€ 26.00

2-2

3571248521
ref: 2-2
MODEL X

LENS

€ 26.00

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

5

3562549030
ref: 5

BOLT

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3571648510
ref: 7

PLATE,REAR COMBINATION LAMP

€ 9.00

8

0832221058
ref: 8

WASHER

€ 2.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0211205128
ref: 10

SCREW

€ 2.50

11

3573048510
ref: 11

BRACKET ASSY

€ 61.00

12

3571630950
ref: 12

PLATE

€ 10.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576630950
ref: 14

SPACER

€ 2.00

15

0110706308
ref: 15

BOLT

€ 2.50

16

0916006027
ref: 16

WASHER (6.5X20X1.2)

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0918006072
ref: 18

SPACER

€ 2.00

19

0932009003
ref: 19

CUSHION

€ 2.00

20

0110706408
ref: 20

BOLT 6X40

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0918006006
ref: 22

SPACER (6.8X10X11.5)

€ 3.00

23

0932009010
ref: 23

CUSHION

€ 2.50

24

0930807004
ref: 24

GROMMET

€ 2.50
