FUEL COCK

TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

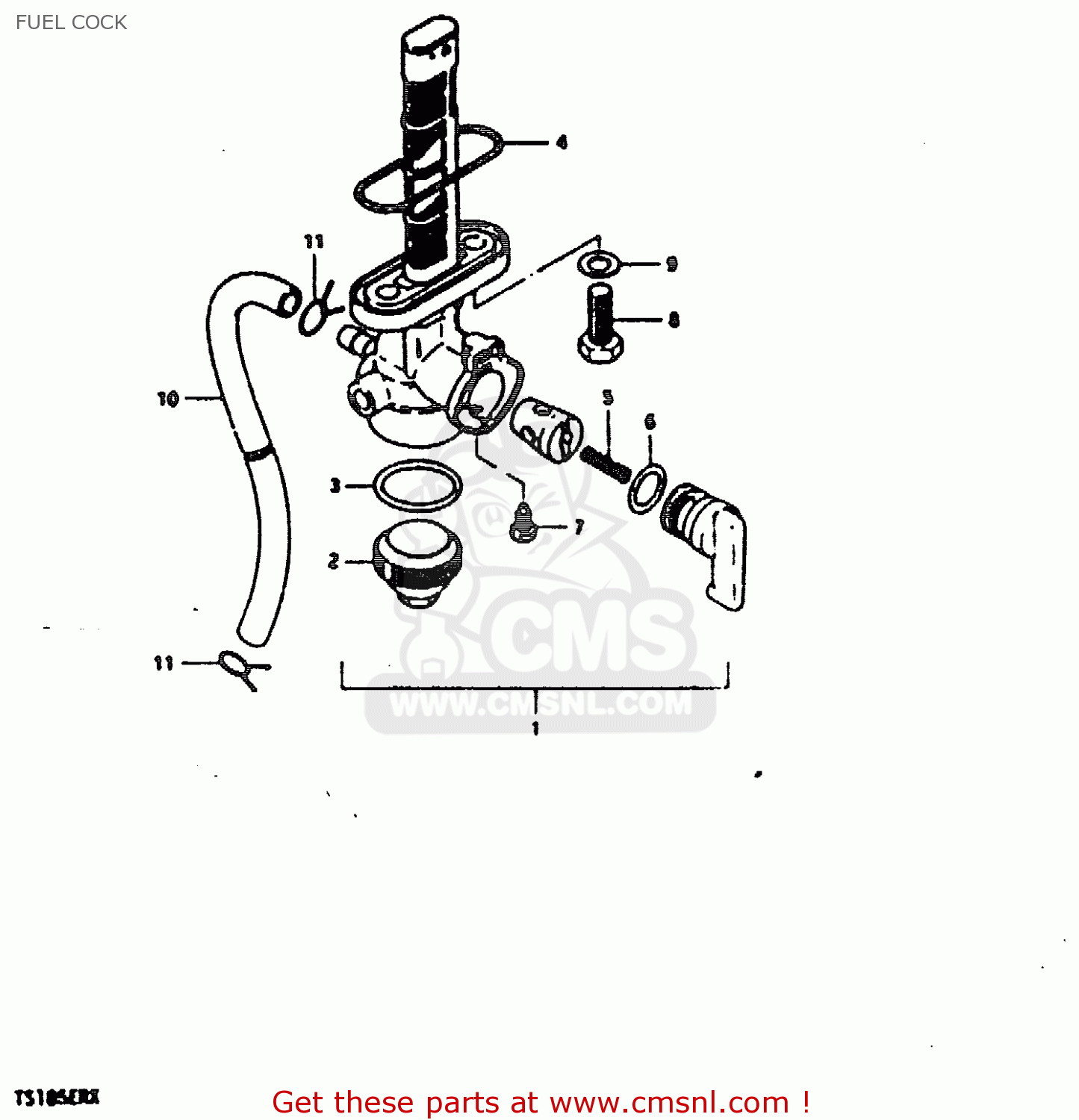

Fuel cock diagram TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

FUEL COCK TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

FUEL COCK TS185ER 1981 (X) (E01 E02 E04 E09 E21 E22 E24 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

4430022071
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

2

4434728071
ref: 2

CUP,STRAINER

€ 7.50

3

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

5

4435732470
ref: 5

SPRING

€ 2.00

6

4435332470
ref: 6

O-RING

€ 7.50

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916808010
ref: 9

GASKET

€ 2.00

10

0934305129
ref: 10

HOSE

€ 13.00

11

0940108402
ref: 11

CLIP

€ 1.50
