BATTERY

TU250X 1999 (X)

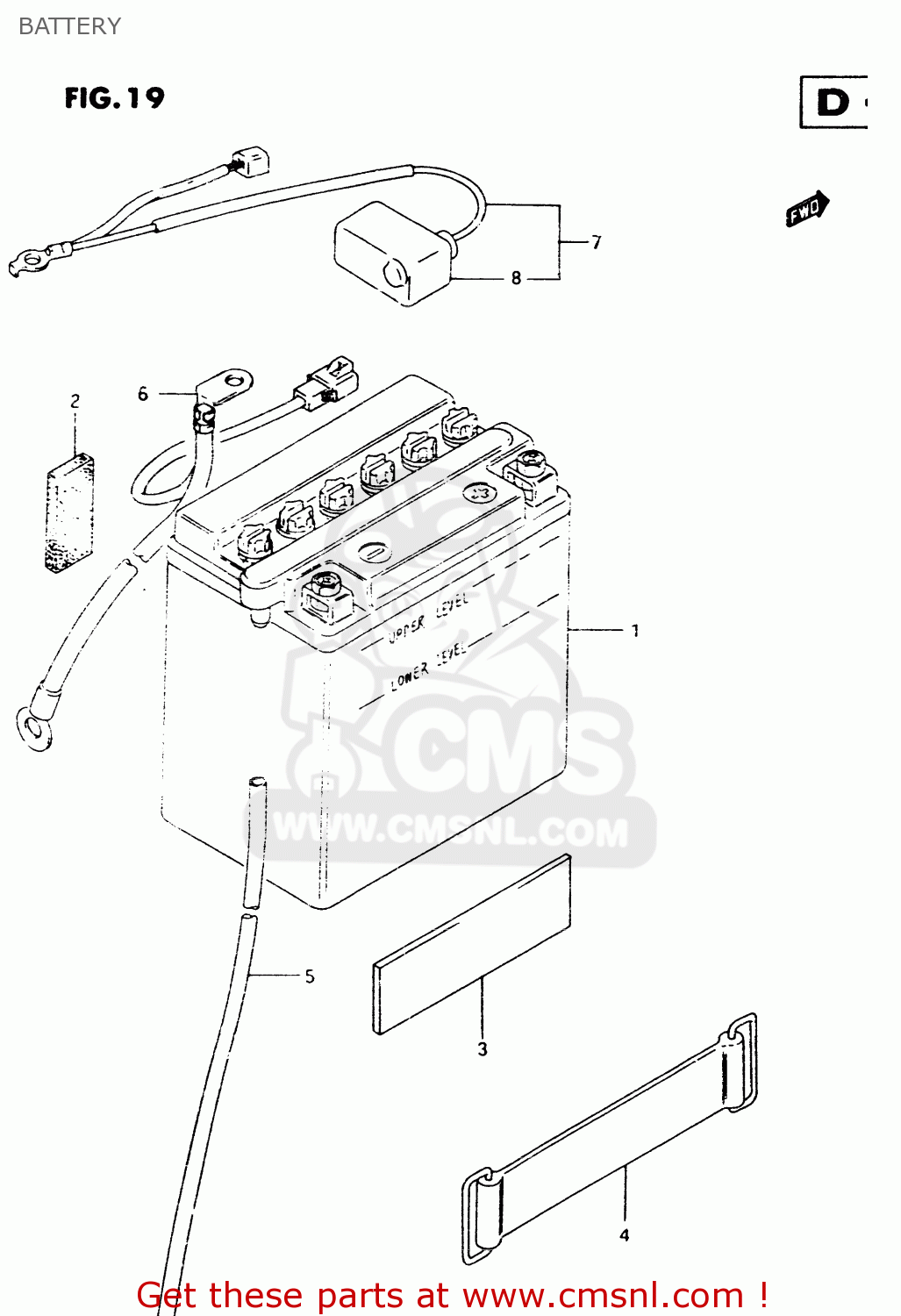

Battery diagram TU250X 1999 (X)

BATTERY TU250X 1999 (X)

BATTERY TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

2

3365228000
ref: 2

CUSHION 20X45X6

€ 6.00

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

4

0946200009
ref: 4

BAND

€ 6.50

5

3368016A10
ref: 5
L:780->500

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

6

3386006B12
ref: 6

WIRE,BATTERY MINUS LEAD

€ 17.00

7

3382038360
ref: 7

WIRE, BATTERY (+) LEAD

€ 17.50

8

3362438310
ref: 8

CAP,BATTERY PLUS TERMINAL

€ 5.00
