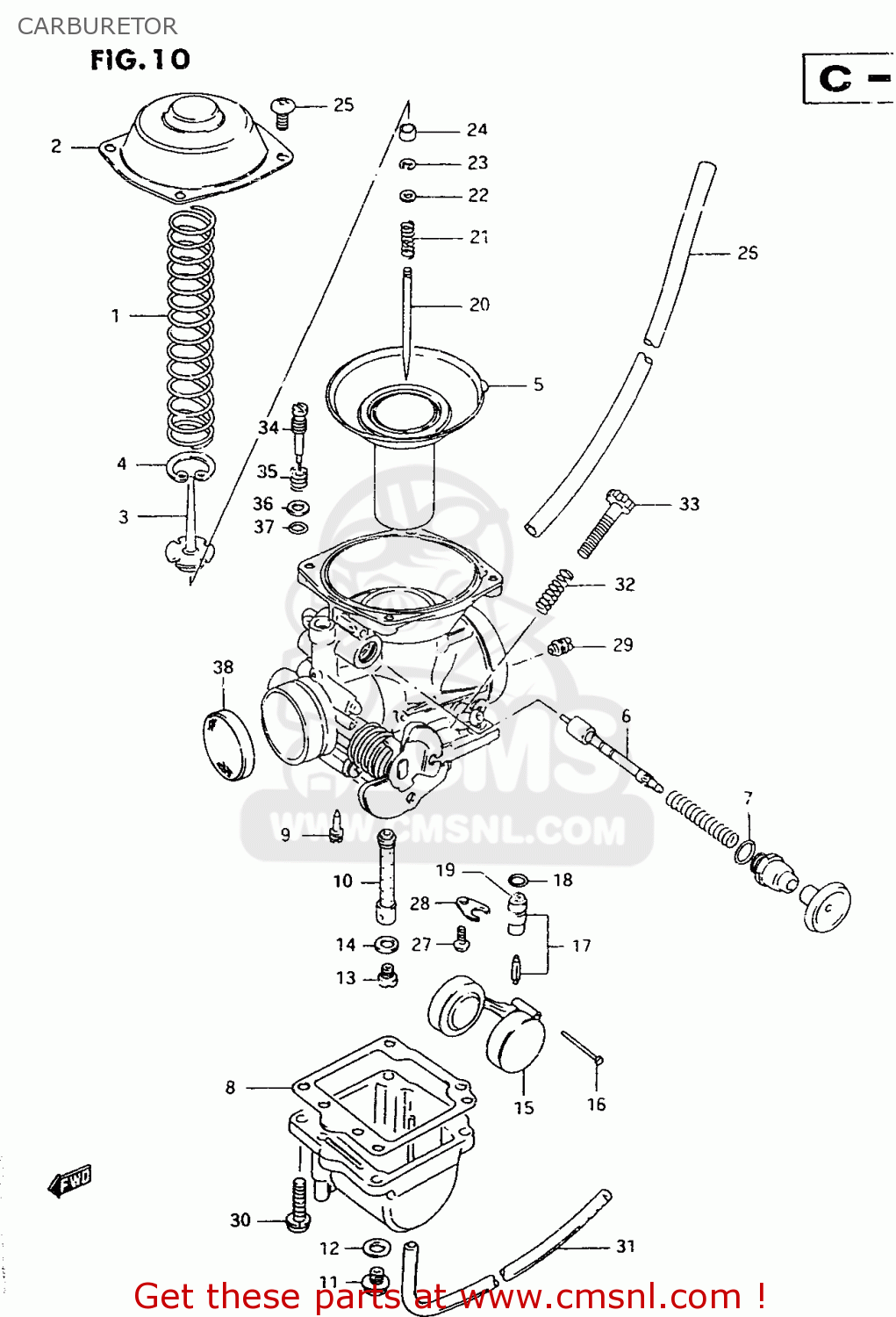

CARBURETOR

ref

part #

description

quantity

0

1320025D10
ref: 0

CARBURETOR ASSY

€ 411.50

0

1320025D20
ref: 0
E39

CARBURETOR ASSY

€ 0.00

1

1350337100
ref: 1

SPRING

€ 9.00

2

1350238300
ref: 2

COVER

€ 22.00

3

1338944030
ref: 3

HOLDER,GUIDE

€ 10.50

4

1358144030
ref: 4

E RING

€ 6.50

5

1350038350
ref: 5

DIAPHRAGM ASSY

€ 184.50

6

1341125D10
ref: 6

PLUNGER ASSY

€ 45.50

7

1327847090
ref: 7

O RING

€ 2.00

8

1325138300
ref: 8

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

9-1

0949242010
ref: 9-1

JET,PILOT(42.5)

€ 8.50

9-2

0949235010
ref: 9-2
E39

JET,PILOT(37.5)

€ 10.50

10

0949400756
ref: 10

JET,NEEDLE(P-1)

€ 36.50

11

1324744080
ref: 11

PLUG,DRAIN

€ 9.50

12

1324644080
ref: 12

GASKET (NAS)

€ 3.50

13

0949126011
ref: 13

JET,MAIN(130)

€ 11.50

14

1333244080
ref: 14

WASHER,NEEDLE NOZZLE

€ 2.50

15

1325037100
ref: 15

FLOAT

€ 33.50

16

1325492311
ref: 16

PIN,FLOAT

€ 2.00

17

1337037100
ref: 17

VALVE ASSEMBLY,NEEDLE

€ 63.00

18

1337444080
ref: 18

O-RING,NEEDLE VALVE

€ 6.00

19

1337684110
ref: 19

FILTER

€ 6.50

20-1

1338311910
ref: 20-1

NEEDLE,JET

€ 15.00

20-2

1338325D20
ref: 20-2
E39

NEEDLE, JET

€ 0.00

21

1338844030
ref: 21

SPRING

€ 6.00

22

1338244030
ref: 22

WASHER

€ 3.50

23

1339410010
ref: 23

CLIP

€ 4.50

24

1338747010
ref: 24

RING

€ 7.50

25

0211205127
ref: 25

SCREW

€ 2.50

26

1368325D00
ref: 26

HOSE (5X8X325)

€ 9.50

27

0211204063
ref: 27

SCREW 4X6

€ 2.00

28

1337339110
ref: 28

PLATE

€ 6.50

29

0949330003
ref: 29

JET,AIR(150)

€ 13.00

30

1360125D00
ref: 30

SCREW

€ 2.50

31

1368419A00
ref: 31

HOSE,3.5X6.5X2

€ 15.00

32

1326825D00
ref: 32

SPRING

€ 3.50

33

1326725D00
ref: 33

ADJUSTER

€ 9.00

34

1327947080
ref: 34

SCREW,PILOT AIR

€ 11.50

35

1326847070
ref: 35

SPRING

€ 5.00

36

1329129900
ref: 36

WASHER

€ 2.00

37

1329529900
ref: 37

O RING,PILOT AIR SCREW

€ 4.00

38

1323625D00
ref: 38

FILTER

€ 17.00

all assemblies
