FUEL COCK

TU250X 1999 (X)

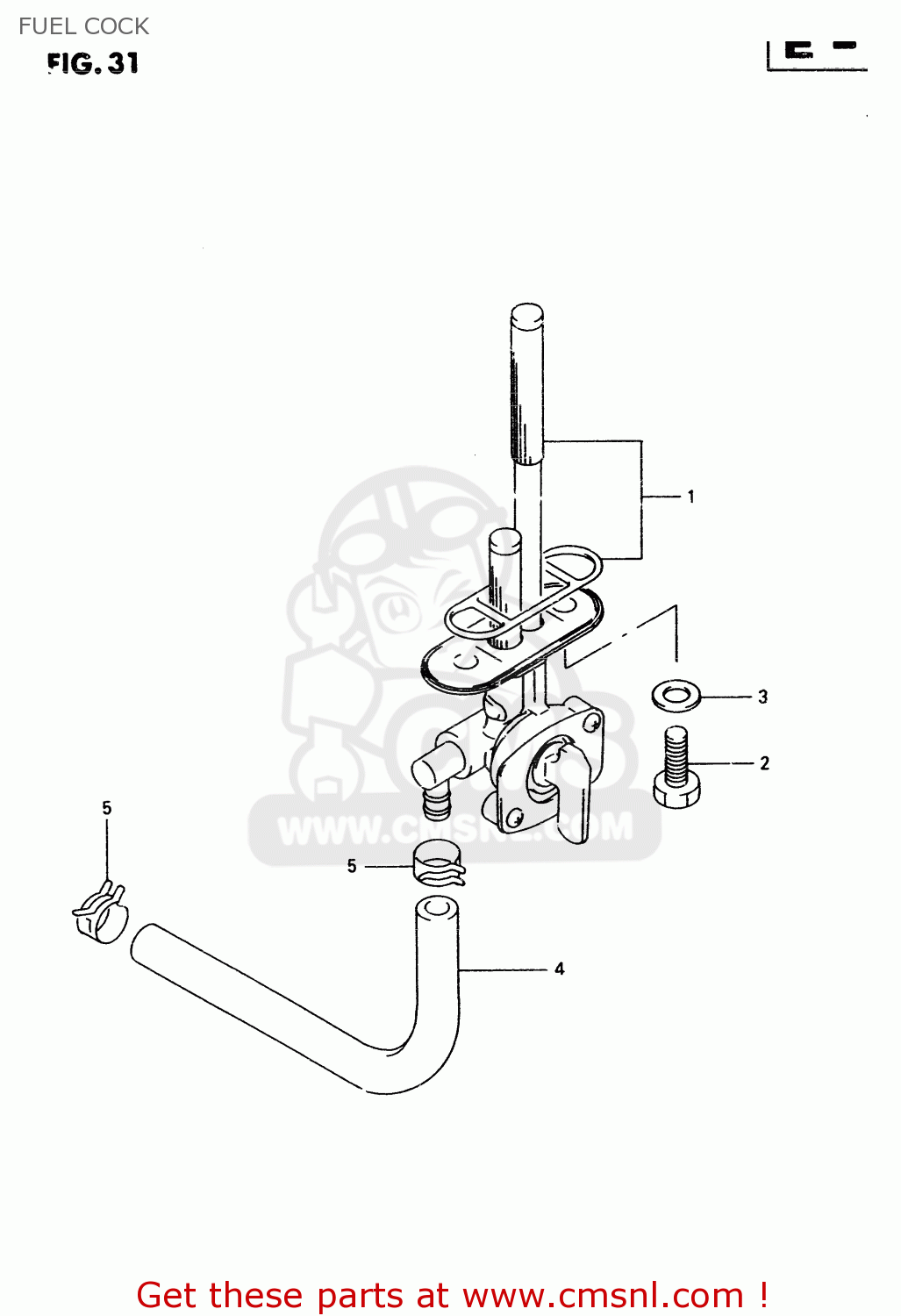

Fuel cock diagram TU250X 1999 (X)

FUEL COCK TU250X 1999 (X)

FUEL COCK TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4430025D00
ref: 1

COCK ASSY,FUEL

€ 102.50

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

0935550105600
ref: 4

HOSE(5X10X600)

€ 7.50

5

0940109403
ref: 5

CLIP

€ 2.50
