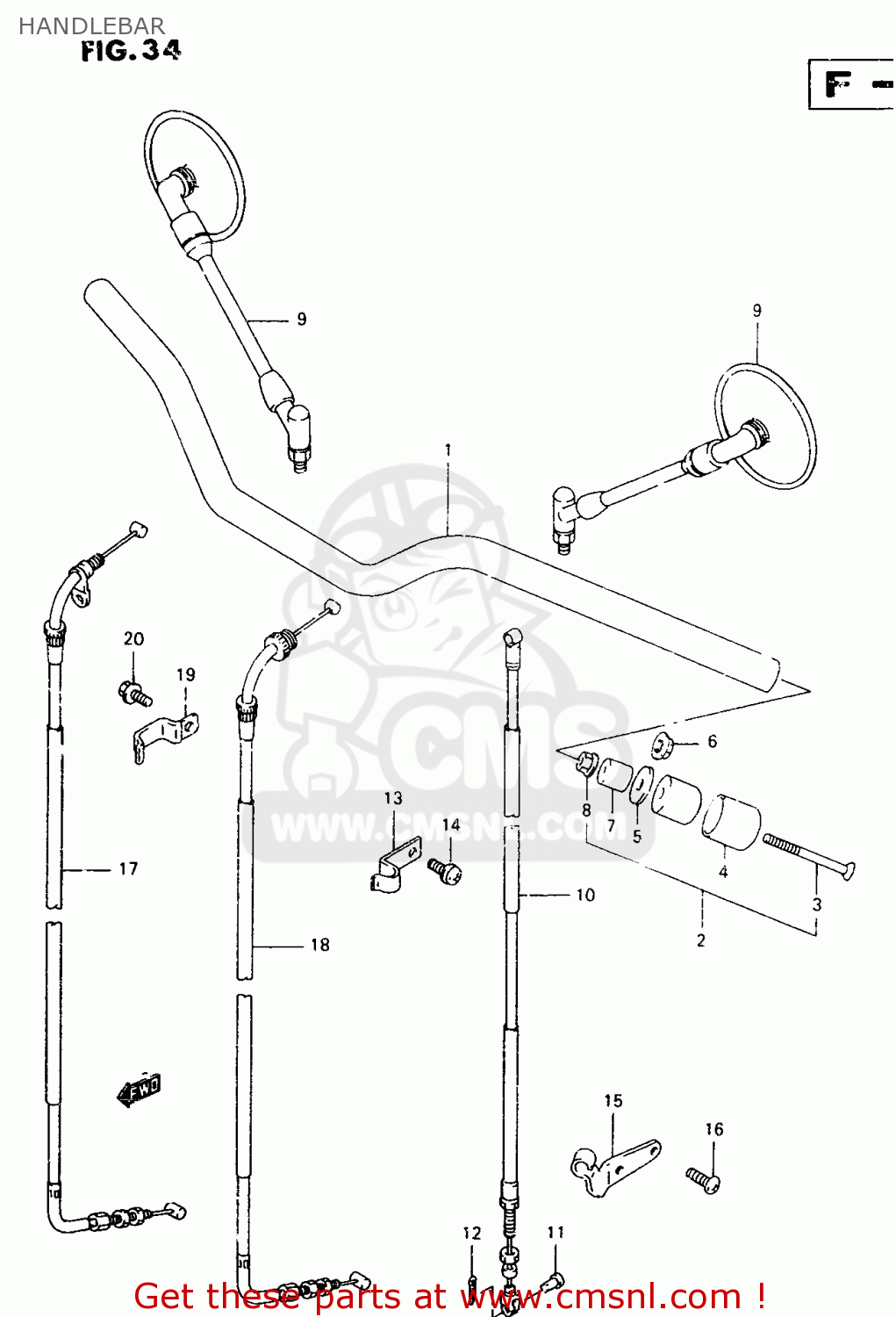

HANDLEBAR

ref

part #

description

quantity

1

5611125D00
ref: 1

HANDLEBAR

€ 107.00

2

5620023811
ref: 2

BALANCERSET,H/

€ 95.50

3

0212206653
ref: 3

SCREW

€ 2.50

4

5627404700
ref: 4

CAP,BALANCER

€ 96.00

5

5627534401
ref: 5

SPACER,BALANCER

€ 2.50

6

0831610083
ref: 6

NUT

€ 3.00

7

5627244500
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

8

0915906024
ref: 8

NUT

€ 2.00

9-1

5650038A70
ref: 9-1

MIRROR ASSY,RH

€ 356.00

9-2

5650038A80
ref: 9-2
E24

MIRROR ASSY,RH

€ 356.00

10

5820025D01
ref: 10

CABLE ASSY,CLUTCH

€ 31.00

11

0920006004
ref: 11

PIN(L:13)

€ 1.50

12

0411120158
ref: 12

PIN

€ 1.50

13

5862637400
ref: 13

CLAMP,CLUTCH CABLE NO.1

€ 8.50

14

0211216103
ref: 14

SCREW

€ 2.00

15

5863425D00
ref: 15

STOPPER,CLUTCH CABLE

€ 8.00

16

0211206127
ref: 16

SCREW

€ 2.00

17

5830025D00
ref: 17

CABLE ASSY,THROTTLE NO.1

€ 37.50

18

5830025D10
ref: 18

CABLE ASSY,THROTTLE NO.2

€ 37.50

19

0940310307
ref: 19

CLAMP

€ 3.00

20

0155006163
ref: 20

BOLT

€ 2.50

all assemblies
