FRONT CALIPER

TU250X 1999 (X)

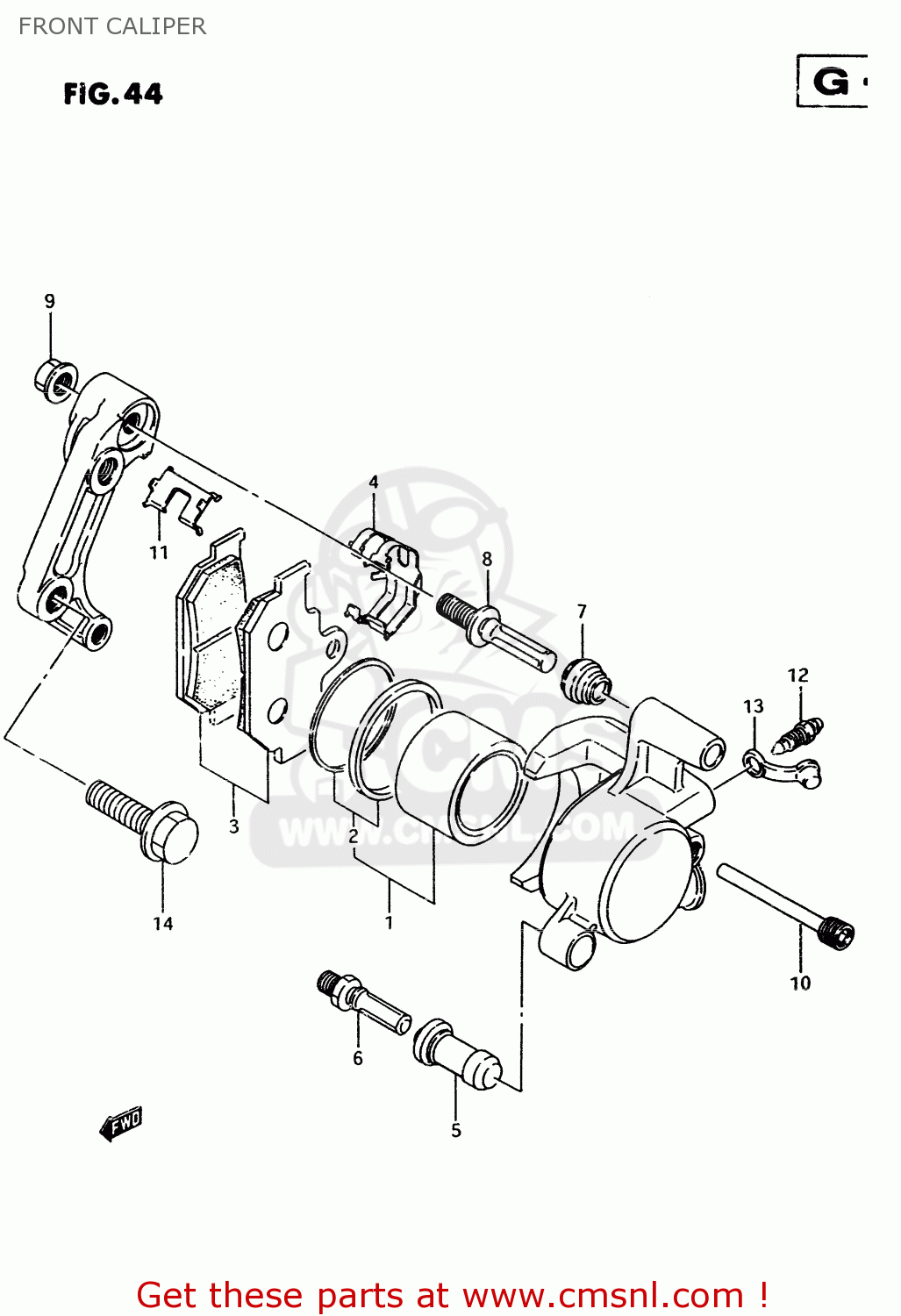

Front caliper diagram TU250X 1999 (X)

FRONT CALIPER TU250X 1999 (X)

FRONT CALIPER TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

0

5930024B11
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 500.50

1

5930024820
ref: 1

PISTON SET

€ 58.00

2

5930024810
ref: 2

SEAL SET,PISTON

€ 14.00

3

5930024830
ref: 3

PAD SET (NAS)

€ 41.50

4

5931514600
ref: 4

SPRING

€ 6.50

5

5938613A00
ref: 5

BOOT

€ 6.50

6

5938214500
ref: 6

PIN,BOLT

€ 7.50

7

5930314500
ref: 7

BOOT

€ 5.50

8

5930514500
ref: 8

PIN,SLIDE

€ 12.50

9

5930614500
ref: 9

NUT,SLIDE PIN

€ 2.50

10

5934514600
ref: 10

PIN,HANGER

€ 10.50

11

5931624B10
ref: 11

RETAINER

€ 6.00

12

5912101A00
ref: 12

BLEEDER

€ 8.50

13

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

14

0155010307
ref: 14

BOLT

€ 3.50
