REAR BRAKE ROD

TU250X 1999 (X)

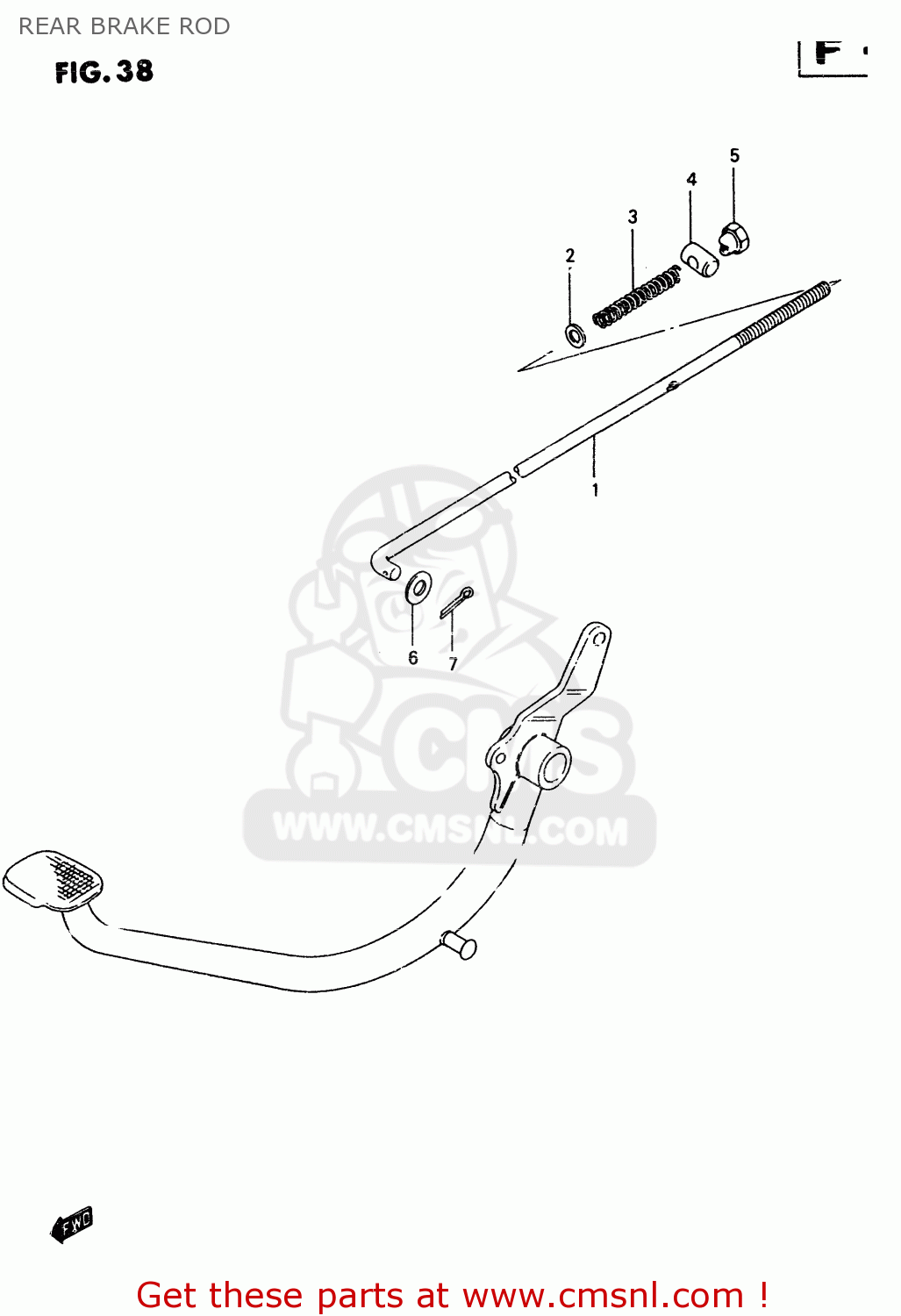

Rear brake rod diagram TU250X 1999 (X)

REAR BRAKE ROD TU250X 1999 (X)

REAR BRAKE ROD TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4330038300
ref: 1

ROD ASSY,RR BRAKE

€ 21.00

2

0832201063
ref: 2

WASHER

€ 2.00

3

0944009004
ref: 3

SPRING

€ 2.00

4

0920913018
ref: 4

PIN(13X18)

€ 3.50

5

0915006014
ref: 5

NUT

€ 3.50

6

0832201053
ref: 6

WASHER

€ 2.50

7

0411120208
ref: 7

PIN 20X20

€ 1.50
