HANDLE SWITCH

TU250X 1999 (X)

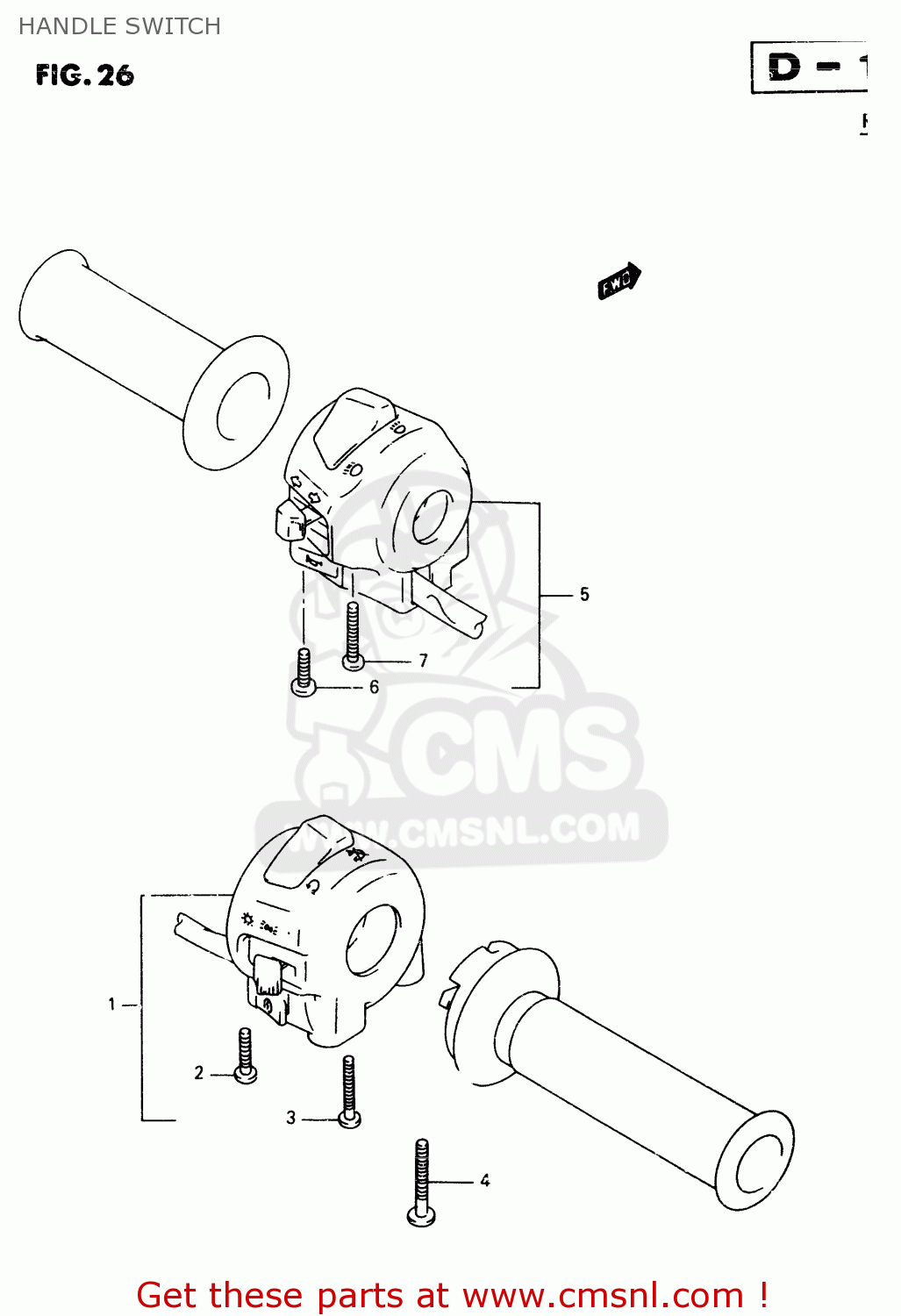

Handle switch diagram TU250X 1999 (X)

HANDLE SWITCH TU250X 1999 (X)

HANDLE SWITCH TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

3720027E11
ref: 1-1

SWITCH ASSY,HANDLE,R

€ 176.00

1-2

3720027E31
ref: 1-2
E24

SWITCH ASSY,HANDLE,R

€ 165.00

2

0211205303
ref: 2

SCREW

€ 1.50

3

0211205503
ref: 3

SCREW

€ 2.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

3740027E60
ref: 5

SWITCH ASSY,HANDLE,L

€ 131.50

6

0211205253
ref: 6

SCREW

€ 1.50

7

0211205453
ref: 7

SCREW

€ 4.00
