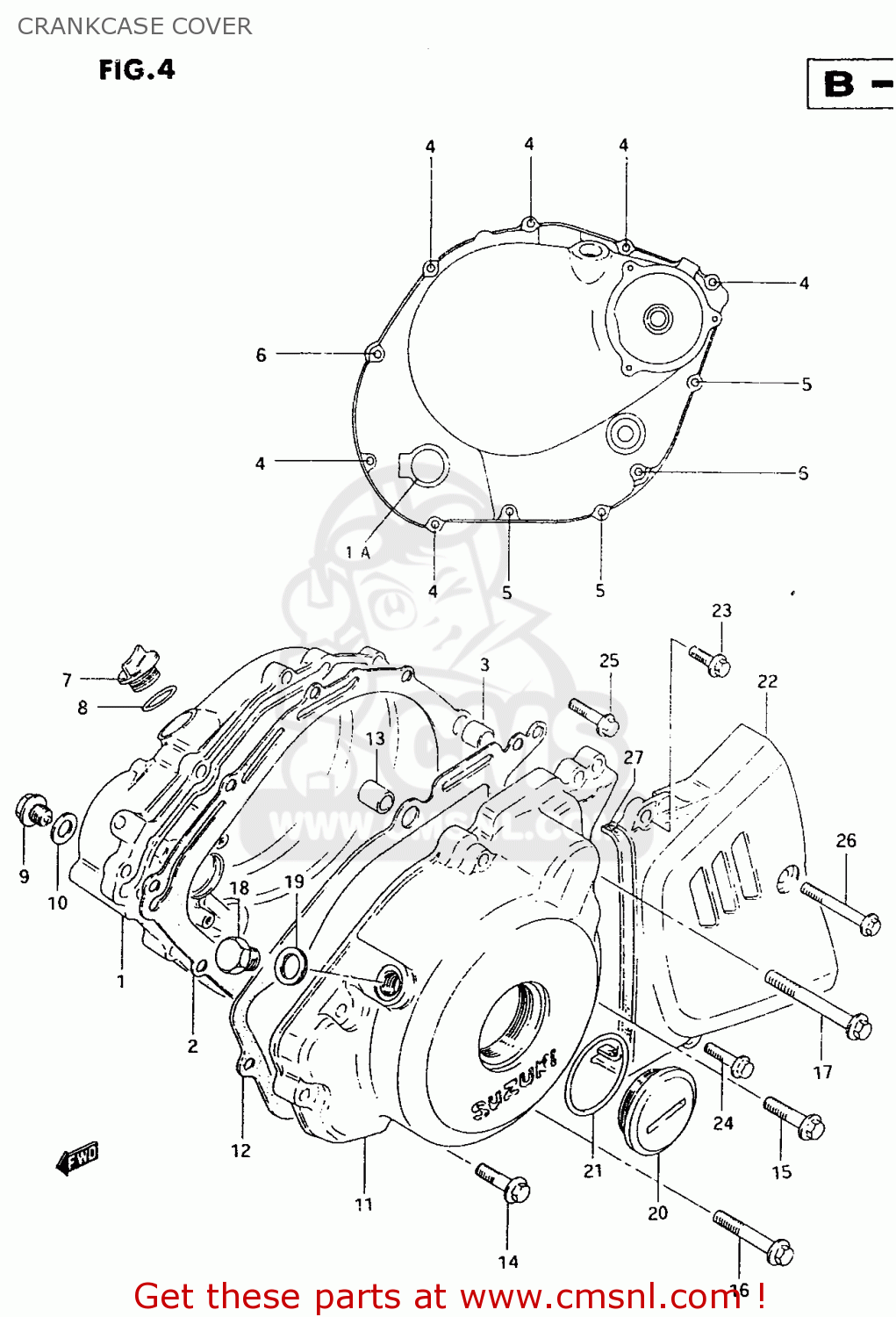

CRANKCASE COVER

ref

part #

description

quantity

1

1134038302
ref: 1

COVER,CLUTCH

€ 230.50

1A

1197145010
ref: 1A

LENS,OIL LEVEL CHECK

€ 13.00

2

1148238311
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 26.50

3

0421113189
ref: 3

PIN

€ 2.50

4

0154706257
ref: 4

BOLT

€ 2.50

5

0154706357
ref: 5

BOLT

€ 2.50

6

0154706457
ref: 6

BOLT

€ 2.50

7

0925920007
ref: 7

PLUG(20X10)

€ 6.50

8

0928017003
ref: 8

O RING(D:3.1,ID:16.8)

€ 2.00

9

0924714026
ref: 9

PLUG(14X12)

€ 3.50

10

0916814002
ref: 10

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

11

1135138300
ref: 11

COVER,MAGNETO

€ 156.50

12

1148337D00
ref: 12

GASKET,MAGNETO COVER (NAS)

€ 14.00

13

0421113189
ref: 13

PIN

€ 2.50

14

0154706257
ref: 14

BOLT

€ 2.50

15

0154706357
ref: 15

BOLT

€ 2.50

16

0154706507
ref: 16

BOLT

€ 2.50

17

0154706607
ref: 17

BOLT

€ 2.50

18

0924712104
ref: 18

PLUG,12X9

€ 2.50

19

0916812002
ref: 19

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

20

0925936011
ref: 20

PLUG,36X10

€ 8.50

21

0928033004
ref: 21

O RING(D:3.1,ID:32.7)

€ 2.50

22

1136138300
ref: 22

COVER,ENGINE SPROCKET

€ 92.50

23

0154705207
ref: 23

BOLT

€ 2.00

24

0154705257
ref: 24

BOLT

€ 2.00

25

0154705307
ref: 25

BOLT

€ 2.00

26

0154705457
ref: 26

BOLT

€ 2.00

27

1136238300
ref: 27

DAMPER,ENGINE SPROCKET COVER

€ 12.50
