STAND

TU250X 1999 (X)

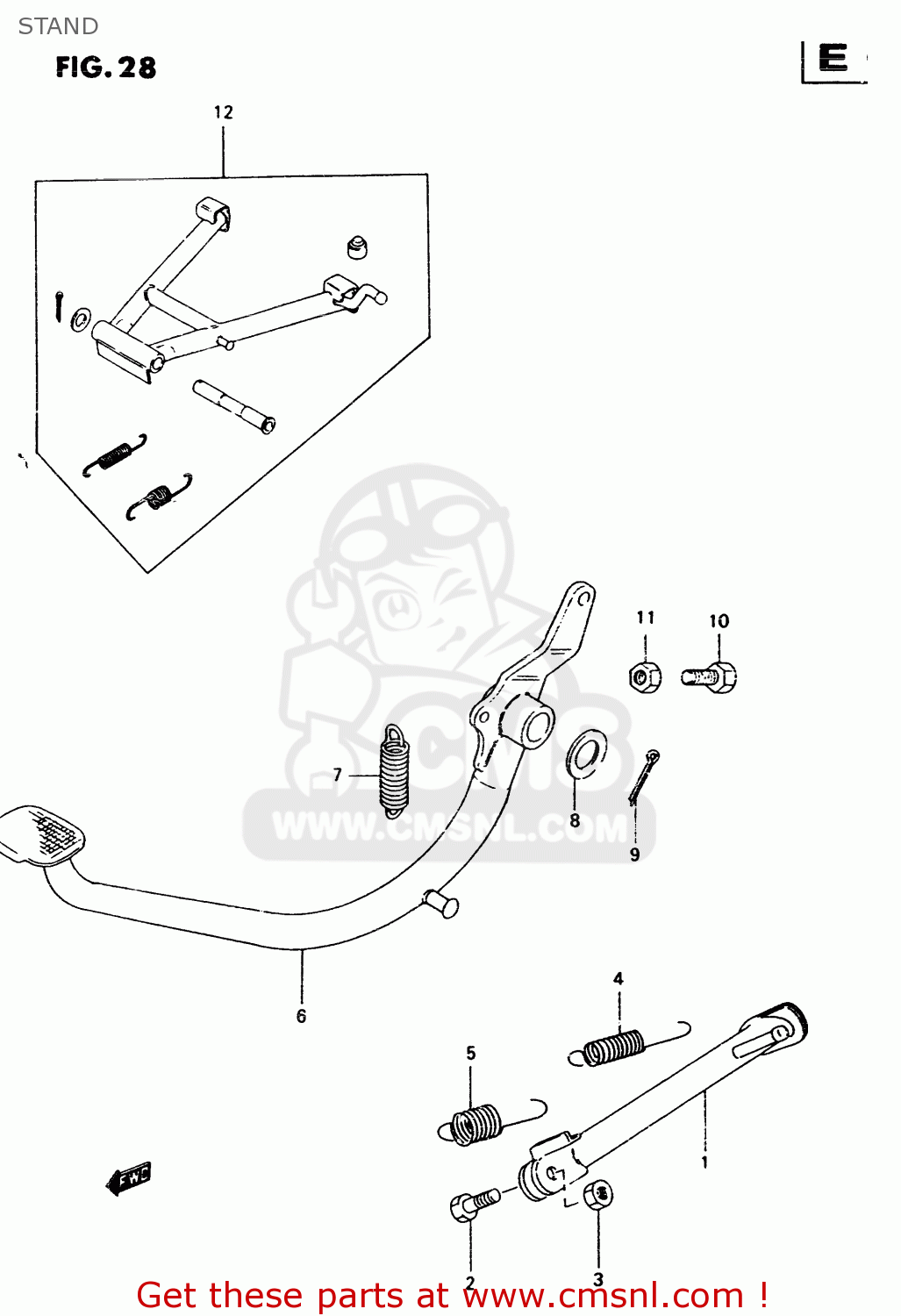

Stand diagram TU250X 1999 (X)

STAND TU250X 1999 (X)

STAND TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4231025D00
ref: 1

STAND,PROP

€ 154.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3

0915910027
ref: 3

NUT

€ 3.00

4

0944312025
ref: 4

SPRING

€ 18.50

5

0944319006
ref: 5

SPRING

€ 18.00

6

4311038301
ref: 6

PEDAL,BRAKE

€ 104.00

7

0944314013
ref: 7

SPRING

€ 21.50

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

9

0411130308
ref: 9

COTTER PIN

€ 1.50

10

0910006009
ref: 10

BOLT(6X23)

€ 1.50

11

0831000063
ref: 11

NUT 6MM

€ 2.00

12

4210125D00
ref: 12
OPT

STAND ASSY,CTR

€ 83.00
