CYLINDER

TU250X 1999 (X)

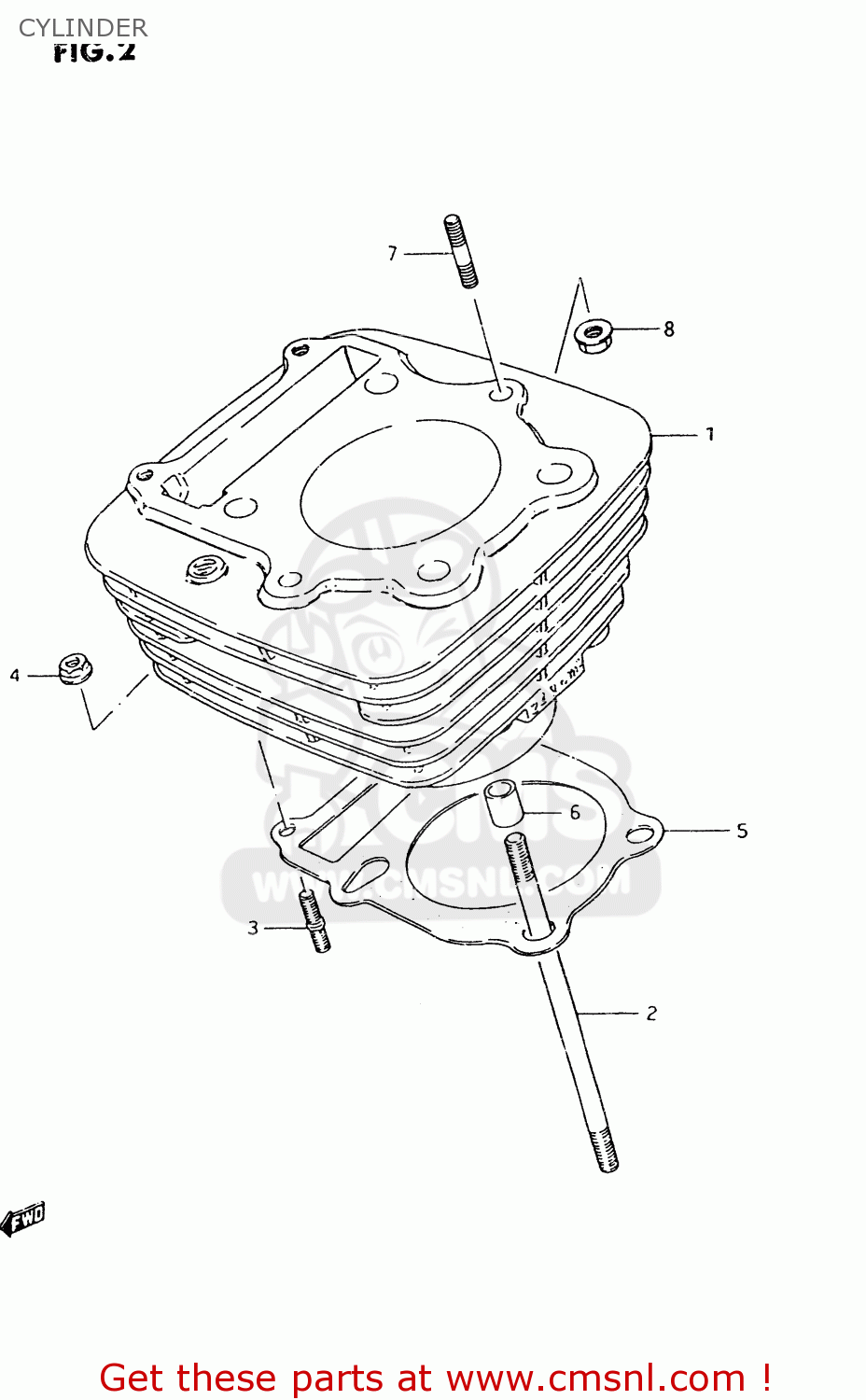

Cylinder diagram TU250X 1999 (X)

CYLINDER TU250X 1999 (X)

CYLINDER TU250X 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

1121038203
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106208
ref: 3

STUD 6X20

€ 2.50

4

0831610067
ref: 4

NUT

€ 2.00

5

1124138301
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0142106307
ref: 7

BOLT,STUD

€ 2.50

8

0831610067
ref: 8

NUT

€ 2.00
