CHAIN CASE

TU250X 2011 (L1) USA (E03)

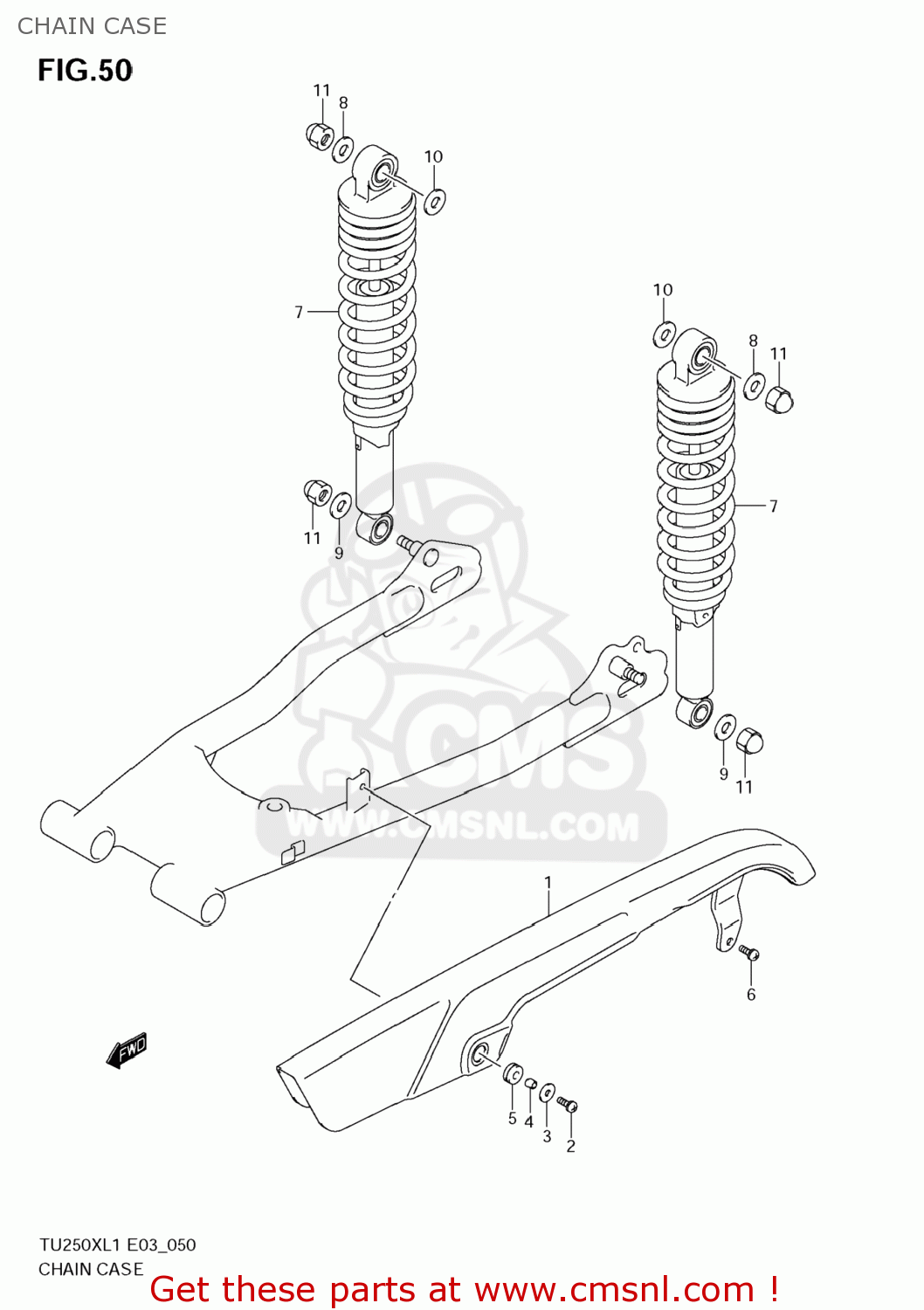

Chain case diagram TU250X 2011 (L1) USA (E03)

CHAIN CASE TU250X 2011 (L1) USA (E03)

CHAIN CASE TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6131038300
ref: 1

CASE,CHAIN

€ 140.50

2

021123616B
ref: 2

SCREW

€ 2.50

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0916906065
ref: 4

WASHER

€ 3.50

5

0932008021
ref: 5

CUSHION

€ 4.00

6

021123616B
ref: 6

SCREW

€ 2.50

7

6210026G10
ref: 7

ABSORBER ASSY,RR SHOCK

€ 167.00

8

0916010093
ref: 8

WASHER(10.5X24X2.3)

€ 2.00

9

0916010093
ref: 9

WASHER(10.5X24X2.3)

€ 2.00

10

0916012082
ref: 10

WASHER(12.5X24X3.2)

€ 2.50

11

0831310107
ref: 11

NUT

€ 2.50
